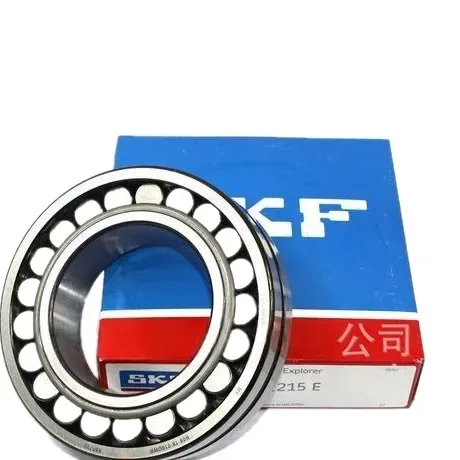

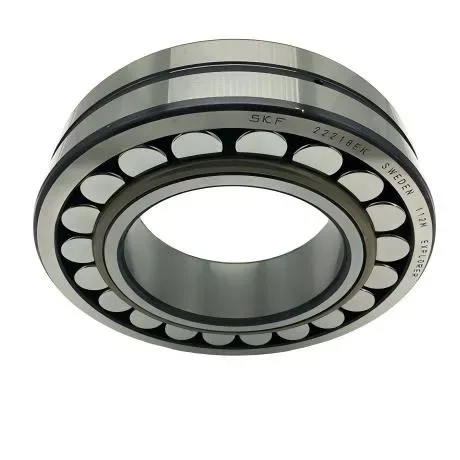

22216EK Spherical Roller Bearing 80x140x33mm for Mining
Authorized Channel Sourcing — Every 22216EK we supply ships with traceable documentation from verified distributor networks, not unverified secondary markets.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 22216EK Spherical Roller Bearing |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 80mm |
| Outside Diameter (D) | 140mm |
| Width (B) | 33mm |
| Bore Type | Tapered Bore (1:12) |
| Number of Rows | Double Row |
| Arrangement | Self-aligning |
| Origin | To be confirmed |
Note: Specific brand variants (such as SKF, FAG, or NSK equivalents) require cross-reference verification against OEM equipment documentation to confirm exact suffix configurations and internal design variations.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and Crushing | Vibrating screen eccentric shafts, jaw crusher main shafts, cone crusher mantle assemblies |
| Steel and Metallurgy | Continuous caster guide rolls, rolling mill work rolls, ladle turret bearings |
| Material Handling | Belt conveyor drive pulleys, bucket elevator head shafts, apron feeder sprockets |
| Industrial Machinery | Paper machine dryer cylinders, kiln support rollers, hammer mill rotors |
What a Tapered Bore Means for Your Crusher Shaft
A 1:12 taper isn’t just a mounting option—it’s the difference between a secure interference fit and a bearing that walks off the shaft under impact loads.
Mining equipment doesn’t fail gracefully. When a vibrating screen bearing seizes at 2 AM, you’re not just looking at replacement costs. You’re calculating lost production per hour, emergency freight charges, and whether the maintenance crew can safely extract a locked bearing from an eccentric shaft in confined spaces. Counterfeit bearings with incorrect bore tapers or soft inner rings that pass visual inspection often show up in these exact scenarios. The bore dimension checks out on a caliper, but under sustained vibration and shock loading, the interference fit breaks down and the bearing creeps axially, destroying the shaft seat [NEED_CITE: bearing creep failure modes in vibrating equipment].
The 22216EK Spherical Roller Bearing addresses this through its tapered bore design, which allows precise axial drive-up during installation. When you tighten the locknut, the bearing moves up the taper, reducing internal clearance to the exact operating specification needed for your thermal expansion range. This isn’t guesswork—it’s controlled preload that prevents both excessive internal clearance (leading to roller skidding and cage damage) and insufficient clearance (causing thermal seizure when the shaft expands under load).
Matching the Bearing to Your Load Spectrum
Vibrating screens operate in a punishing environment where the 22216EK Spherical Roller Bearing faces cyclic radial loads combined with axial thrust from material weight and screen deck inclination. The self-aligning capability compensates for shaft deflection that occurs when the screen structure flexes under dynamic loading—something rigid bearing types cannot tolerate without edge loading and premature raceway spalling. We’ve supplied these for applications where shaft misalignment reaches levels that would destroy cylindrical roller bearings within weeks.
Operating Environment and Performance Demands
The 22216EK operates under conditions where standard bearings fail: high-impact radial loads from rock crushing, moderate rotational speeds that generate heat, and contamination from dust and moisture that destroys inadequate sealing systems. Temperature differentials between the shaft and housing can be significant in outdoor mining installations, making internal clearance selection critical. Lubrication intervals depend on operating temperature and contamination levels—grease degradation accelerates in high-heat zones, while water ingress emulsifies lubricant and promotes corrosion on raceway surfaces [NEED_CITE: bearing lubrication failure in contaminated mining environments]. The double-row spherical roller configuration distributes loads across more rolling elements, reducing contact stress and extending fatigue life compared to single-row alternatives in shock-load applications.
Internal Design That Handles Misalignment
The 22216EK Spherical Roller Bearing features a spherical outer raceway that allows the inner ring and roller assembly to pivot relative to the housing, accommodating static misalignment from housing bore errors and dynamic misalignment from shaft deflection under load. The EK suffix indicates a tapered bore with 1:12 ratio, which requires a locknut and tab washer for secure mounting—this creates an interference fit that prevents inner ring rotation on the shaft under heavy loads. The double-row arrangement with barrel-shaped rollers handles combined radial and axial loads while maintaining the self-aligning function. Chrome steel construction provides the core hardness needed to resist surface fatigue from repeated Hertzian contact stress, but material certification matters because counterfeit rings with improper heat treatment will show correct hardness on the surface while the core remains soft, leading to subsurface cracking under impact loads.
When Specification Errors Become Downtime Events
Selecting the wrong clearance class for a 22216EK installation doesn’t show up as an immediate problem—it manifests weeks later when thermal expansion eliminates internal clearance and the bearing seizes. Standard CN clearance might work in a climate-controlled factory, but a vibrating screen operating in ambient heat with friction-generated internal temperature rise needs C3 or C4 clearance to maintain operating space between rollers and raceways. Similarly, a bearing with incorrect cage material for the vibration frequency will experience cage fatigue and breakage, releasing rollers that damage raceways and lock the shaft [NEED_CITE: bearing cage failure analysis per ISO 15243]. These failures don’t just cost the bearing—they destroy shafts, housings, and production schedules, turning a component replacement into a major repair event.
How We Verify Before We Ship
Every 22216EK Spherical Roller Bearing we supply goes through verification that catches problems before they reach your site. We source through authorized distributor channels, not open-market traders where counterfeit bearings mix with genuine stock. Material certificates accompany shipments, showing the steel grade and heat treatment specifications that confirm the rings have proper through-hardening rather than just surface hardness. Dimensional inspection reports verify the bore taper angle, outer diameter, and width match specifications—because even small deviations in tapered bore geometry create improper interference fits that fail under load. We provide cross-reference documentation that matches not just the base number but the complete suffix string including clearance, cage type, and precision class, ensuring the replacement bearing matches your OEM equipment requirements exactly.
Documentation & Authenticity
- Certificate of Conformity from authorized distributor channels confirming genuine product sourcing with complete supply chain traceability for the 22216EK
- Material certificates specifying steel grade (GCr15 or equivalent) and heat treatment parameters that verify proper core hardness and case depth for impact resistance
- Dimensional inspection reports confirming tapered bore geometry, outer diameter tolerances, and width dimensions meet specification before shipment
- Cross-reference documentation matching OEM equipment numbers to exact 22216EK suffix configurations including clearance class and cage type
- Country-of-origin documentation for import compliance and customs clearance when shipping internationally
- Batch and lot traceability allowing field failure analysis to track back to specific production runs if needed
Storage, Handling & Mounting
- Keep 22216EK bearings in original sealed packaging until installation—opening early exposes the tapered bore surface to moisture and particulate contamination that affects interference fit quality
- Store in temperature-stable environments because thermal cycling in warehouses can cause condensation on bearing surfaces, promoting corrosion on the precision-ground tapered bore
- Handle with clean gloves when mounting—the 1:12 taper requires precise axial drive-up measurement, and fingerprints or debris on the shaft seat create uneven contact that leads to inner ring cracking
- Use induction heating for the inner ring during installation rather than flame or oil bath methods—controlled heating to the specified temperature range ensures proper expansion for slip-fit mounting on the tapered shaft seat without damaging the cage or rolling elements
- Apply anti-creep compound to the shaft seat before mounting the 22216EK to prevent micro-movement under vibration loads that gradually wears away the interference fit over time
- Measure axial drive-up distance during locknut tightening to achieve the correct residual internal clearance—this is critical for applications with thermal expansion where insufficient clearance leads to seizure and excessive clearance causes roller skidding
Moving Forward with Your Inquiry
Share your operating parameters including load magnitude, shaft speed, ambient temperature range, and expected misalignment angles so we can verify the 22216EK Spherical Roller Bearing matches your application requirements. Provide OEM equipment numbers or existing bearing part numbers for cross-reference validation to ensure the replacement bearing maintains proper clearance, cage type, and precision specifications. Request documentation packages including material certificates and dimensional reports if your quality system requires incoming inspection verification. Confirm batch availability and lead times for your maintenance window or production schedule requirements.
Frequently Asked Questions
Q: How do I determine the correct clearance class for a 22216EK in vibrating screen applications?
A: Clearance selection depends on operating temperature differential between inner and outer rings, shaft interference fit amount, and housing fit. Vibrating screens typically generate internal heat from friction and external heat from process materials, requiring C3 or C4 clearance to maintain operating space after thermal expansion. We verify the correct clearance by reviewing your operating temperature range and shaft fit specifications before confirming the order.
Q: What’s the difference between tapered bore and cylindrical bore for this bearing size?
A: The 22216EK’s tapered bore (1:12 ratio) allows precise interference fit adjustment through axial drive-up during locknut tightening, creating a secure mount that prevents inner ring creep under vibration and shock loads. Cylindrical bore bearings rely on press-fit tolerances that are fixed at installation and cannot be adjusted. Tapered bore installation requires measuring axial drive-up distance to achieve correct residual clearance, while cylindrical bore installation depends entirely on shaft and housing machining tolerances.
Q: How does self-alignment capability affect bearing life in misaligned applications?
A: The spherical outer raceway allows the inner ring and roller assembly to pivot, accommodating shaft deflection and housing misalignment without creating edge loading on rollers. This prevents the localized contact stress concentrations that cause premature raceway spalling in rigid bearing types. Self-alignment capability is particularly valuable in vibrating screens where structural flexing under dynamic loads creates varying misalignment angles that would destroy non-aligning bearings within weeks.
Q: What documentation comes with the 22216EK bearing shipment?
A: We provide Certificate of Conformity confirming authorized channel sourcing, material certificates showing steel grade and heat treatment specifications, dimensional inspection reports verifying bore taper and external dimensions, and cross-reference documentation matching your OEM equipment requirements. Country-of-origin documentation is available for import compliance, and batch traceability records allow field failure tracking if needed.
Q: Can I substitute a different brand’s equivalent for the 22216EK?
A: Cross-brand substitution requires verification beyond the base number—clearance class, cage material, internal design, and precision class must all match for the replacement to perform correctly in your application. We provide cross-reference comparison documentation showing which alternative brand designations meet all specification requirements, not just dimensional interchangeability.
