Description
Authorized Channel Procurement — Every 22340CC/W33 unit we source ships with verifiable traceability back through authorized distributor invoices, so maintenance teams at cement plants and mines can confirm origin before mounting.
Technical Specifications
| Parameter | Value |
|---|---|

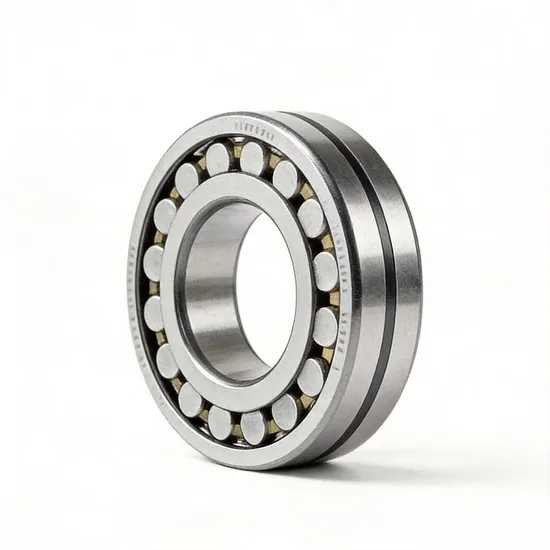

| Designation | 22340CC/W33 (Generic) |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 200 mm |
| Outside Diameter (D) | 420 mm |
| Width (B) | 138 mm |
| Bore Type | Cylindrical |
| Cage Material | Steel (stamped window-type) |
| Seal or Shield Type | Open |
| Lubrication Feature | Annular groove and three lubrication holes in outer ring (W33) |
| Number of Rows | Two |
| Arrangement | Self-aligning |
The CC suffix designation in this product draft remains unverified against a specific manufacturer catalog; cross-reference with the intended brand’s technical documentation before final procurement.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining & Crushing | Crusher eccentric shaft, jaw crusher main bearing |
| Industrial Machinery | Vibrating screen exciter bearing, quarry screen deck |
| Steel & Metallurgy | Continuous caster guide roller, rolling mill table roll |
| Pulp & Paper | Paper machine dryer cylinder bearing, press section roll |
What a Cage Material Mismatch Costs on a Crusher Eccentric
A stamped steel cage swapped in where a machined brass cage was specified can fail catastrophically within weeks under heavy vibration.
I watched a crusher in West Africa shut down mid-shift because someone cross-referenced the base number correctly but ignored the cage suffix. Vibration loads tore the stamped cage apart, scoring the outer ring raceway beyond salvage. That single mismatch cost the site days of unplanned downtime and a full bearing replacement on an expedited shipping budget. Situations like this repeat across mining and aggregate operations where 22340CC/W33 spherical roller bearing procurement focuses on base designation alone. [NEED_CITE: premature bearing failure modes under vibration loading per ISO 15243]
Matching This Bearing to High-Vibration, High-Load Duty Cycles
Spherical roller bearings like the 22340CC/W33 handle combined radial and axial loads while accommodating shaft misalignment — a constant reality in vibrating screens and crusher applications where frame flex and thermal shaft growth are unavoidable. The W33 lubrication feature channels oil or grease directly through the outer ring, reaching both roller rows even when the bearing sits deep inside a housing with limited access to grease points. When sourcing a 22340CC/W33 spherical roller bearing for this class of equipment, confirming that the cage design and internal geometry align with the vibration frequency and load amplitude of the specific machine is what separates a twelve-month service life from a six-week failure. We routinely review OEM equipment numbers against our cross-reference database to catch these details before the order ships.
Operating Environment and Performance Demands
Crusher and vibrating screen environments subject bearings to heavy shock loads, frequent directional reversals, and contaminated atmospheres filled with abrasive dust. Temperature swings from cold startup to sustained operating heat cause thermal expansion that directly affects internal clearance — install a standard CN clearance where C3 was required and the bearing will thermally bind once the shaft reaches equilibrium. Lubrication intervals shorten dramatically in dusty conditions, and without the W33 annular groove feeding lubricant through the outer ring, re-greasing becomes inconsistent across both roller rows. Housing fit and shaft tolerance compound these challenges; an interference fit that is too tight reduces the already-critical internal clearance, while a loose fit invites creep and fretting corrosion on the shaft seat. [NEED_CITE: thermal expansion effects on bearing internal clearance in heavy machinery]
Inside the W33 Lubrication Path and Cage Geometry
The W33 suffix specifies an annular groove cut around the outer ring circumference with three equally spaced lubrication holes feeding into the bearing interior. This design ensures that fresh lubricant reaches both roller rows rather than pooling at the grease fitting entry point — a significant advantage when the bearing operates in a sealed housing with a single re-lubrication port. The CC cage design uses a stamped steel window-type cage with a floating guide ring between roller rows, allowing each row to self-align independently under misalignment conditions. Stamped steel cages handle moderate speeds and steady loads well but are less tolerant of sustained high-vibration environments than machined brass alternatives. The spherical outer ring raceway lets the bearing accommodate static misalignment up to a few degrees without edge-loading the rollers, which protects against premature spalling on misaligned crusher shafts. Internal clearance selection — CN, C3, or C4 — must account for the interference fit on the shaft and the temperature differential between inner and outer rings during operation.
The Hidden Cost of Ignoring Suffix Details
A base-number-only match might get a bearing that physically fits the housing, but mismatched clearance or cage material turns a scheduled replacement into an emergency teardown. Incorrect clearance class leads to either thermal binding under load or excessive play that accelerates fatigue spalling. Counterfeit bearings entering the supply chain through unverified intermediaries often carry cloned markings and soft inner rings that pass visual inspection but fail under operating loads within months. ISO 281 life calculations assume correct internal geometry and material integrity; when those assumptions are violated by a counterfeit or a specification mismatch, actual service life becomes unpredictable. [NEED_CITE: rolling bearing life calculation assumptions per ISO 281]
Why Procurement Engineers Source Through Our Channel
We source 22340CC/W33 spherical roller bearings exclusively through authorized distributor channels, which means every shipment carries invoice traceability back to the original manufacturer’s distribution network. Our cross-reference comparison does not stop at the base number — we align clearance class, cage material, and precision suffixes across SKF, NSK, FAG, TIMKEN, NTN, and KOYO so that substitution decisions are made on complete technical equivalence. Buyers receive country-of-origin documentation and HS code support with every order, removing friction at customs clearance. Authenticity verification guidance accompanies each delivery, including QR code verification pathways through official brand applications. For buyers managing multi-brand maintenance inventories, our engineering team provides application-based selection reviews that check load spectra, speed ranges, and thermal conditions before confirming the final part number. Dimensional inspection reports and certificates of conformity ship with the product, not as an afterthought upon request.
Documentation & Authenticity
- Supplier Certificate of Conformity referencing batch and lot numbers specific to each 22340CC/W33 shipment
- Material certificates confirming bearing steel grade and heat treatment compliance for the delivered lot
- Country-of-origin documentation with HS code classification to support import clearance at destination
- QR code verification pathway through the applicable brand’s official mobile application for anti-counterfeit confirmation
- Pre-shipment dimensional inspection sampling available for bulk orders to confirm bore, OD, and width tolerances before dispatch
- Batch and lot traceability records maintained for post-delivery warranty or failure investigation support
Storage, Handling & Mounting
- Retain original sealed packaging until the moment of mounting; the 200 mm bore and 138 mm width of this spherical roller bearing make it heavy enough that dropped packaging exposes the outer ring raceway to impact damage.
- Store horizontally in a dry environment to prevent condensation from settling on the open-type W33 annular groove, which would introduce corrosion*sees service.
- Use induction heating for the 200 mm cylindrical bore inner ring rather than pressing or hammering, which risks brinelling the rollers and scoring the CC cage windows during forced assembly.
- Apply clean gloves when handling; the W33 lubrication holes are direct pathways into the bearing interior, and particulate contamination introduced at the bench will circulate through both roller rows once the equipment starts.
- Confirm shaft and housing seating dimensions before mounting; thermal growth in vibrating screen applications demands that the fit preserve the specified internal clearance class rather than squeezing it out through excessive interference.
- For open-type bearings in dusty crusher environments, ensure external housing seals are inspected and replaced at each bearing change to protect the W33 relubrication path from abrasive ingress.
Request a Technical Review Before Your Next Order
Share your application parameters — load, speed, operating temperature, and OEM equipment number — so we can confirm clearance class and cross-reference compatibility before quoting. Request a documentation package preview if import compliance or origin verification is a priority for your procurement team. We will verify batch availability and typical lead time against current distributor inventory.
Frequently Asked Questions
Q: How can I verify that the 22340CC/W33 bearing I receive is genuine?
A: Every unit we supply includes traceable documentation through authorized distributor channels. You can verify authenticity using the applicable brand’s official mobile application by scanning the QR code on the packaging or bearing label. We also provide guidance on visual and dimensional checks that distinguish genuine products from sophisticated counterfeits with cloned markings.
Q: Why does cross-referencing require more than just matching the base number?
A: The base number identifies bore, OD, and width, but clearance class, cage material, and precision suffixes determine whether the bearing survives in your specific application. A 22340CC/W33 spherical roller bearing with a stamped steel cage behaves very differently under sustained vibration than one with a machined brass cage. Our cross-reference process aligns all three parameters across brands to prevent field failures.
Q: What does the W33 suffix mean for relubrication in practice?
A: The W33 suffix indicates an annular groove cut around the outer ring with three lubrication holes drilled through to the bearing interior. This allows grease or oil introduced at the housing fitting to distribute evenly across both roller rows, which is critical in vibrating screens and crushers where consistent lubrication directly affects service life.
Q: Can I order a trial batch before committing to a full production order?
A: Yes, we support sample or trial-batch orders for new applications. This allows your maintenance team to verify fitment, run-in performance, and relubrication behavior before scaling to full inventory replenishment. Lead times and minimum quantities are confirmed during the quotation stage.
Q: What post-delivery support is available if we encounter installation issues?
A: We provide technical support for mounting questions, relubrication scheduling, and failure analysis after delivery. If a bearing fails prematurely, our team can review operating conditions and installation records to determine whether the root cause was selection, handling, or application-related.
