Description
Authorized Channel Traceability — Every INA joint bearing we dispatch ships with verifiable batch records traceable back to Schaeffler’s distribution network, protecting hydraulic cylinder builders from undocumented substitutions.
Technical Specifications
| Parameter | Value |
|---|---|

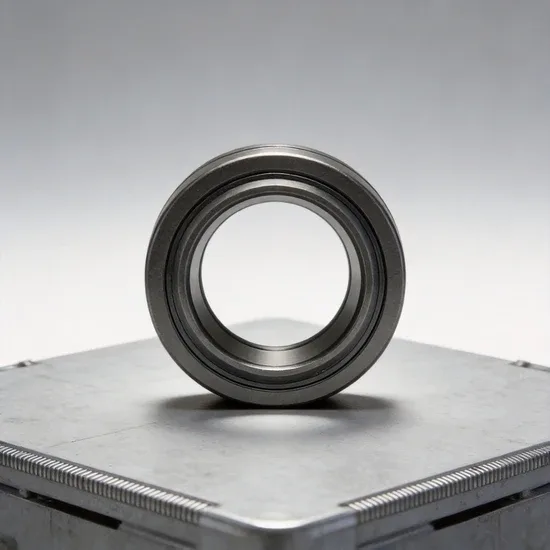

| Designation | INA GE50-ZO |
| Bearing Type | Radial Spherical Plain Bearing |
| Bore Diameter (d) | 50 mm |
| Outside Diameter (D) | 75 mm |
| Width Inner Ring (B) | 35 mm |
| Width Outer Ring (C) | 28 mm |
| Spherical Diameter (Dk) | 65 mm |
| Sliding Surface | Steel-on-Steel, Phosphated |
| Lubrication Feature | With Lubrication Groove |
| Seal or Shield Type | Open / Without Seal |
| Weight | 0.6 Kg |
| Origin | China |
The suffix ZO on this identifier remains unverified against standard INA catalog designations; cross-reference confirmation is recommended prior to bulk commitment.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Machinery | Hydraulic cylinder pivot eyes, rod-end clevis joints |
| Construction & Earthmoving | Excavator boom linkage pins, loader bucket tilt joints |
| Agricultural Machinery | Tractor hitch lift arms, combine header pivot points |
| Material Handling | Forklift mast tilt cylinders, crane outrigger joints |
| Heavy-Duty Industrial | Press frame linkages, rolling mill guide roller pivots |
What a Missing Lubrication Groove Costs on a Hydraulic Cylinder Pivot
The sliding surface starves within weeks when the substitution part lacks the factory grease channel.
On a mining site in West Africa, I watched a cylinder seize mid-shift because a replacement spherical plain bearing matched the GE50 base number perfectly but omitted the lubrication groove. The original had a phosphated steel-on-steel contact zone fed by a circumferential groove; the substitute was a dry plain surface. Under oscillating load, dust ingress, and ambient heat, the inner ring scored deeply before the third week ended. The machine went down, the rod bent, and the repair bill dwarfed the bearing cost. That failure traces directly to a suffix and feature mismatch that no one checked at procurement. This is exactly the trap that the GE50-ZO spherical plain bearing with lubrication groove is designed to avoid [NEED_CITE: spherical plain bearing failure modes under oscillating motion and insufficient lubrication].
How the GE50-ZO Matches Oscillating Hydraulic Duty
Hydraulic cylinder pivots demand bearings that tolerate slow oscillation under heavy radial load, with periodic grease replenishment to flush wear debris from the sliding zone. The GE50-ZO spherical plain bearing with lubrication groove delivers precisely that: the groove routes grease directly into the steel-on-steel phosphated contact band, maintaining a boundary film even when the cylinder rod cycles through short strokes. Open construction means maintenance crews can inspect the sliding surface visually during scheduled regreasing without pulling the pin. When we supply these to earthmoving contractors, we verify the groove geometry against the OEM print — a step most catalog-only suppliers skip — so the replacement behaves identically to the factory-fitted part.
Operating Demands at the Pivot Pin
Radial load dominates at a cylinder eye, but shock loads from bucket breakout or uneven terrain introduce transient axial components that test the outer ring’s seating stability. Temperatures in hydraulic systems can climb as the oil heats, raising the thermal gradient across the relatively thin outer ring and demanding adequate clearance between the sliding surfaces. Relubrication intervals depend heavily on contamination exposure; in open-pit mining or cement handling, dust infiltration accelerates abrasive wear on the phosphated surface, shortening the time between grease purges. Mounting typically involves pressing the outer ring into a housing bore with a transition fit, while the inner ring slides over the pin with a close clearance — both fits must be controlled to avoid distorting the raceway [NEED_CITE: spherical plain bearing mounting tolerances and housing fits per ISO 12240].
Reading the Core Specifications
The phosphated steel-on-steel sliding surface is the defining feature here. Phosphating creates a micro-porous manganese or zinc phosphate layer that acts as a solid lubricant during the critical run-in period, reducing scuffing risk before the grease film fully establishes. The 50 mm bore and 75 mm outside diameter place this bearing in a compact envelope that fits standard hydraulic cylinder eye bores without housing modification. At 35 mm inner ring width, the load-carrying contact area is generous enough for sustained oscillating duty, while the 28 mm outer ring width keeps the housing bore length manageable. The absence of seals is deliberate: in dirty environments, an external wiper or boot takes on the contamination exclusion role, while the open bearing allows free grease purge to flush particles out of the sliding zone.
The Hidden Expense of Specification Oversights
Correct selection backed by traceable sourcing delivers predictable service life; a mismatched substitute delivers unplanned downtime. When a procurement team accepts a bearing that shares the GE50 base number but lacks the lubrication groove or carries a different surface treatment, the first sign of trouble is often elevated operating temperature or audible scraping at the pivot. By then, the phosphated layer on the mating parts may already be compromised, and the cylinder rod seal can suffer secondary damage from the vibration. ISO 15243 classifies such failures under adhesive wear and surface disturbance — both avoidable if the original specification had been preserved at the point of substitution [NEED_CITE: bearing damage classification per ISO 15243 sliding surface wear categories]. Warranty claims on the cylinder itself may be voided if the investigation traces the seizure to an unapproved bearing variant.
Why Maintenance Engineers Source Through Us
Our role as a multi-brand genuine bearing supplier means we pull INA spherical plain bearings from authorized Schaeffler distributor channels, not from gray-market aggregators. Each shipment carries batch documentation traceable to the point of origin, and we cross-check the lubrication groove presence, surface treatment, and dimensional envelope against your OEM equipment number before confirming the order. For buyers managing cross-brand interchange — perhaps swapping an INA designation for an SKF or NTN equivalent — we align not just the base bore and OD but the sliding surface type, groove configuration, and seal status. Origin documentation accompanies every export consignment, smoothing customs clearance whether the destination is Lagos, Lima, or Almaty. Pre-shipment inspection covers critical dimensions and the phosphate coating integrity, so you receive verified parts rather than hoping the box label is accurate.
Documentation & Authenticity
- Supplier Certificate of Conformity referencing the INA GE50-ZO batch number and authorized distributor chain
- Material certificate confirming the phosphating treatment specification on the steel-on-steel sliding surface
- Dimensional inspection report verifying bore, OD, inner ring width, and spherical diameter against standard tolerances
- Country-of-origin documentation supporting import clearance and buyer-side vendor qualification audits
- HS code classification guidance and export paperwork prepared for destination customs requirements
Storage, Handling & Mounting
- Retain the GE50-ZO in its original protective wrapping until the moment of installation; the phosphated surface is susceptible to moisture-induced corrosion if exposed to humid warehouse air for extended periods.
- Handle the open-type bearing with clean, lint-free gloves to prevent fingerprint acids from etching the unsealed steel-on-steel sliding contact zone before the first grease application.
- Press the 75 mm outer ring into the housing bore using controlled force aligned to the axis; cocking during insertion can score the phosphate layer and create a preferential wear path.
- After mounting, purge the lubrication groove with the specified grease grade until fresh compound emerges at the outer ring gap, confirming the groove is fully charged before the cylinder enters service.
- In high-dust environments, fit an external boot or wiper seal over the cylinder eye — the open bearing design places contamination exclusion responsibility on the housing seal, not the bearing itself.
Request a Quotation
Share your hydraulic cylinder model number or the specific load, stroke rate, and environmental conditions so we can confirm the GE50-ZO spherical plain bearing with lubrication groove matches your application. If you are evaluating a cross-brand substitution, provide the OEM part number and we will return a full interchange comparison covering sliding surface type, groove presence, and dimensional fit. Ask for the documentation package and country-of-origin confirmation alongside your pricing.
Frequently Asked Questions
Q: What does the ZO suffix indicate on the GE50-ZO spherical plain bearing?
A: The ZO suffix does not appear in widely published INA catalog tables as a standard designation. We recommend confirming its exact meaning — whether it denotes a specific lubrication feature, surface variant, or internal clearance — against the manufacturer’s current product documentation before placing volume orders. Our technical team can assist by pulling the latest available data from authorized distributor resources.
Q: How do I verify the phosphated sliding surface quality on a steel-on-steel plain bearing?
A: Visual inspection should reveal a uniform, matte gray coating without flaking or bare steel patches. A material certificate referencing the phosphating process specification provides documentary evidence. For critical applications, a microscopic surface examination can confirm the coating’s pore structure, which is essential for initial run-in lubricity.
Q: What relubrication intervals apply to maintenance-required spherical plain bearings like this one?
A: Intervals depend on oscillation frequency, load magnitude, ambient temperature, and contamination level. Manufacturers typically provide relubrication charts based on the bearing’s dynamic load rating and the operating conditions. The lubrication groove ensures that each grease purge reaches the full sliding contact area, but the purge frequency must be set according to the actual duty cycle.
Q: Can the GE50-ZO substitute for spherical plain bearings from other manufacturers?
A: Cross-brand substitution is feasible when the bore, OD, width, sliding surface type, seal configuration, and lubrication groove presence all align — not just the base designation. We perform a full parameter interchange check across SKF, NTN, and other catalog equivalents so you can substitute confidently without field performance loss.
Q: What documentation ships with the bearing for import and verification purposes?
A: Each consignment includes a Certificate of Conformity, material and dimensional inspection reports, batch traceability records, and country-of-origin paperwork. These documents support both buyer-side quality audits and destination customs clearance requirements.
Confirm Your GE50-ZO Requirement Today
Send us your application parameters or OEM equipment number for a verified quote and full interchange analysis.
Contact our technical sales team through the inquiry form or your regional sales representative.
