Description

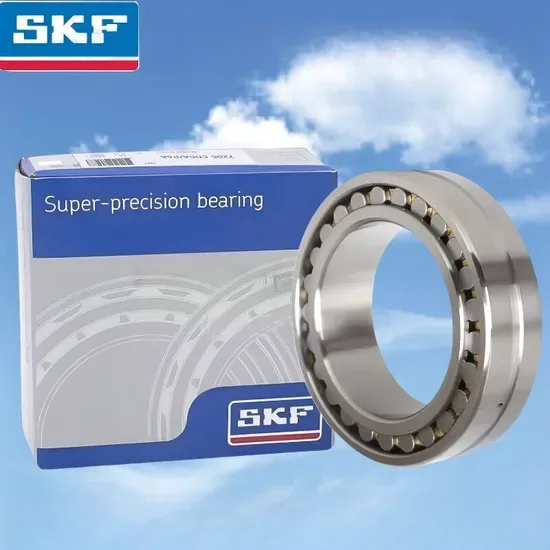

Traceable Batch Sourcing — Every SKF NN3032K/SPW33 double row cylindrical roller bearing ships with Certificate of Conformity and batch documentation tied to authorized distributor channels.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SKF NN3032K/SPW33 |
| Bearing Type | Double Row Cylindrical Roller Bearing |
| Bore Diameter (d) | 160 mm |
| Outside Diameter (D) | 240 mm |
| Number of Rows | Double Row |
| Bore Type | Tapered (1:12 taper, K suffix) |
| Precision Class | SP |
| Seal or Shield Type | Open |
| Lubrication Feature | W33 — Annular groove and three lubrication holes in outer ring |
| Origin | China |
| Weight | 0.250 kg |
| Standards | ISO 15 / ISO 492 |
The SP precision suffix in this identifier requires confirmation against the manufacturer catalog to verify dimensional and running accuracy tolerances before final specification lock-in.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial machinery | Precision gearbox main shafts requiring high radial rigidity |
| Machine tool manufacturing | Lathe and milling machine spindle rear support positions |
| Steel and metallurgy | Rolling mill work roll neck assemblies with tapered shaft seats |
| Material handling | High-speed conveyor drive gearboxes with thermal expansion demands |
What Happens When SP Precision Meets a Standard Clearance Assumption on the SKF NN3032K/SPW33
A tapered bore bearing mounted without verifying internal clearance residual after drive-up will thermally lock within hours of reaching operating temperature.
I have seen this pattern repeat across mining and industrial sites: the procurement team specifies SP precision correctly, but the maintenance crew installs the NN 3032 K/SPW33 on a tapered seat using standard drive-up procedures without measuring residual clearance. The interference fit consumes the internal clearance entirely. Once the spindle reaches thermal equilibrium, the rollers bind against the outer ring raceway. Cage failure follows within days, not months. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] The cost is never just the bearing — it is the unplanned downtime on a precision machine tool or rolling mill that halts an entire production line.
How This Bearing Matches Spindle and Precision Gearbox Demands
The SKF NN3032K/SPW33 double row cylindrical roller bearing addresses the specific combination of high radial load and rotational accuracy demanded by machine tool spindles and precision industrial gearboxes. The double row cylindrical roller arrangement delivers the radial rigidity needed to resist deflection under heavy cutting forces or gear mesh loads. Meanwhile, the tapered bore allows fine adjustment of internal clearance during mounting — essential when the application demands minimal radial runout at operating speed. We once cross-referenced this designation for a gearbox rebuild in West Africa and caught a clearance mismatch before shipment that would have caused thermal seizure underground.
Thermal Expansion and Lubrication Challenges at Speed
Operating conditions in precision rotating equipment push bearings across multiple stress dimensions simultaneously. Radial loads on spindle bearings remain dominant, but thermal expansion from high-speed rotation changes the internal geometry dynamically. The W33 annular groove with three lubrication holes in the outer ring of the SKF NN3032K/SPW33 allows relubrication without disassembly — critical when grease degradation at elevated temperatures shortens service intervals. [NEED_CITE: bearing relubrication interval guidance for high-speed cylindrical roller applications] Open bearing designs place the sealing responsibility on the housing, meaning the machine builder must ensure adequate contamination barriers to protect the rolling elements from particulate ingress common in industrial environments.
Decoding the Suffixes That Define Performance
The K suffix indicates a tapered bore with a 1:12 taper ratio, designed for mounting on tapered shaft seats or adapter sleeves where interference fit and residual clearance are adjusted through axial drive-up distance. This is not a press-and-forget installation — the drive-up procedure directly controls the final operating clearance. The SP precision class positions this bearing above standard P0 tolerance, targeting applications where radial runout and dimensional accuracy affect end-product quality. The W33 lubrication feature — an annular groove with three radial holes in the outer ring — eliminates the need to disassemble the housing for routine grease replenishment, reducing maintenance exposure to contamination. [NEED_CITE: cylindrical roller bearing precision class comparison per ISO 492]
What Selection Errors Actually Cost Beyond the Bearing Invoice
Correct selection paired with a verified supply chain protects against failure modes catalogued in ISO 15243 — smearing, cage fracture, thermal discoloration, and fatigue spalling. The hidden cost is not the replacement bearing itself. It is the unplanned downtime on a spindle or rolling mill, the scrapped production batch from dimensional drift, and the warranty claims that follow when OEMs trace field failures back to unverified components. [NEED_CITE: unplanned downtime cost multiplier in industrial rotating equipment] A bearing that arrived without traceable documentation or with an incorrectly matched clearance class can void equipment warranties and shift liability onto the maintenance team.
What Sets Our Sourcing Process Apart for This Bearing
Every SKF NN3032K/SPW33 we supply enters through authorized distributor channels with full batch and lot traceability, not through unverified secondary markets where counterfeit risk concentrates. Our cross-reference database matches clearance, cage material, and precision suffixes across SKF, NSK, FAG, TIMKEN, NTN, and KOYO — not just the base number. We have rejected shipments where the outer ring QR code cloned successfully but the cage material did not match the original specification. Each order ships with country-of-origin documentation prepared for import compliance, and we provide QR code verification pathways through the brand’s official apps so buyers can confirm authenticity before installation. When an application involves unusual thermal profiles or non-standard shaft tolerances, our technical team reviews the selection parameters before quotation.
Documentation & Authenticity
- Supplier Certificate of Conformity with batch and lot traceability linking each SKF NN3032K/SPW33 to its production run
- Third-party dimensional inspection report covering bore taper verification and OD tolerances against ISO 492 SP requirements
- Country-of-origin documentation and HS code classification prepared for customs clearance at destination ports
- QR code verification pathway via SKF official applications for on-site authenticity confirmation before mounting
- Material certificate confirming bearing steel specification consistent with the original manufacturer’s metallurgical standards
Storage, Handling & Mounting
- Keep the SKF NN3032K/SPW33 in original sealed packaging until the moment of mounting to protect the W33 lubrication groove from particulate contamination
- Tapered bore installation requires controlled axial drive-up on the 1:12 taper seat with residual clearance measurement after each increment — never force-fit beyond the calculated interference envelope
- Store horizontally in a climate-controlled environment to prevent outer ring raceway corrosion on this open-type bearing, particularly in high-humidity regions before shipment
- Handle with clean lint-free gloves to avoid fingerprint etching on the SP-class precision ground raceways, which are more sensitive to surface contamination than standard tolerance bearings
Starting Your Technical Review
Share your operating parameters — radial load, speed range, thermal profile, and housing design — so we can verify the SKF NN3032K/SPW33 is the correct fit for your application. If you are replacing an existing bearing, provide the OEM equipment number or the full designation currently installed, and we will confirm cross-reference alignment including clearance and precision suffixes. Documentation packages with origin certification can be prepared in advance for buyers managing import compliance requirements.
Frequently Asked Questions
Q: What does the SP precision suffix mean for the SKF NN3032K/SPW33, and how does it compare to P5 or P4?
A: SP is a precision class specific to SKF’s super-precision cylindrical roller bearing range, positioned between standard P5 and P4 in terms of dimensional and running accuracy. It targets applications like machine tool spindles where radial runout directly affects machining quality. Always confirm the exact tolerance band against the manufacturer’s current catalog, as precision suffix definitions can shift between product generations.
Q: How should a tapered bore (K suffix) cylindrical roller bearing be mounted — adapter sleeve or direct shaft fit?
A: The K suffix indicates a 1:12 tapered bore that can be mounted directly on a tapered shaft seat or via an adapter sleeve on a cylindrical shaft. Direct tapered seat mounting offers higher rigidity and better concentricity for precision spindle applications. The critical step is measuring residual internal clearance after each drive-up increment to prevent thermal binding at operating temperature.
Q: What cross-reference considerations matter when finding equivalents for the NN3032K/SPW33?
A: Matching the base designation alone is insufficient. The cross-reference must align the tapered bore geometry, the SP precision class equivalent in the alternate brand’s nomenclature, and the W33 lubrication groove feature. Different manufacturers use different suffix systems for the same features, and a mismatch in any of these parameters can cause installation or performance failures.
Q: What relubrication approach does the W33 groove support in high-speed spindle applications?
A: The W33 annular groove with three lubrication holes in the outer ring enables grease replenishment without dismounting the bearing from the housing. Relubrication intervals depend on operating speed, temperature, and grease type. For high-speed spindle applications, grease selection must account for the speed-temperature limit to avoid lubricant breakdown between service intervals.
