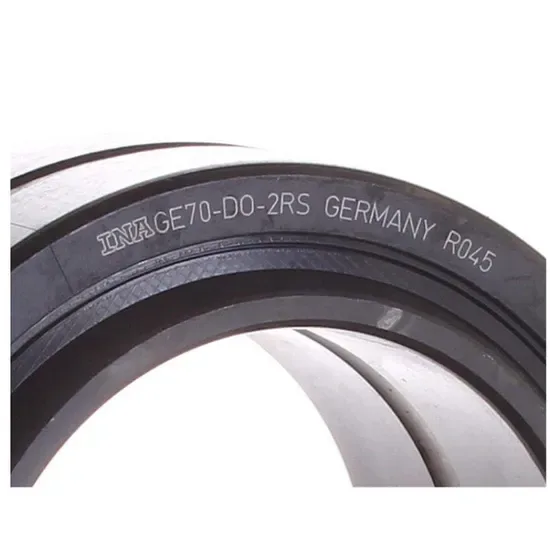

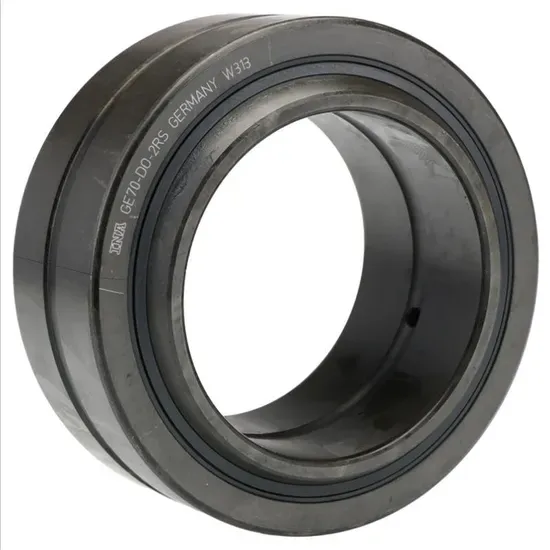

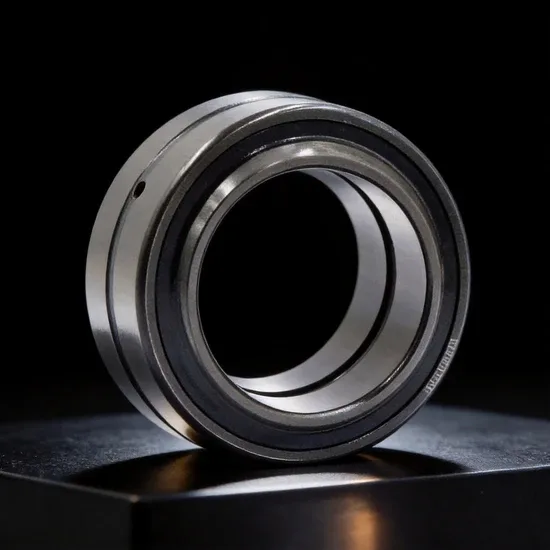

Description
Authorized Channel Sourcing — every FAG GE70-DO-C3 spherical plain bearing ships with distributor-chain paperwork tracing back to the factory lot, so your receiving team can match the batch number before it ever reaches the hydraulic cylinder assembly bay.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | FAG GE70-DO-C3 |
| Bearing Type | Radial Spherical Plain Bearing |
| Bore Diameter (d) | 70 mm |
| Outside Diameter (D) | 110 mm |
| Width Inner Ring (B) | 49 mm |
| Width Outer Ring (C) | 35 mm |
| Sliding Surface | Steel on Steel, Phosphated |
| Lubrication Feature | Groove and Hole in Both Rings (DO) |
| Seal or Shield Type | Open |
| Weight | 1.8 kg (approx.) |
| Clearance Class | C3 |
| Origin | China |
The C3 clearance designation on this FAG GE70-DO-C3 spherical plain bearing reflects supplier documentation; confirm the exact clearance value against the manufacturer catalog before finalizing installation tolerances.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining Machinery | Crusher toggle plate pivot, vibrating screen exciter linkage |
| Engineering Hydraulic Cylinder | Cylinder eye bushing, rod-end clevis pin joint |
| Construction Machinery | Excavator boom-to-stick pivot, loader bucket linkage |
| Forging & Metallurgy | Press frame hinge point, roll adjustment actuator joint |
What Happens When Lubrication Grooves Get Overlooked on a Hydraulic Cylinder Pivot
A missing -DO suffix on a cross-referenced plain bearing can shut down a mining hydraulic circuit within a single shift.
Maintenance crews swapping out a seized joint bearing often match the base number — GE70 — and overlook the DO lubrication feature and C3 clearance entirely. The replacement drops in without a grease path, and under continuous oscillation at the cylinder eye, the phosphated steel-on-steel sliding surface starves within weeks. Heat builds, the outer ring distorts, and the cylinder rod starts binding mid-stroke [NEED_CITE: spherical plain bearing failure modes under oscillating load]. By the time the hydraulics technician traces the fault, unplanned downtime has already eclipsed the cost of the bearing itself many times over.
How the GE70-DO-C3 Fits Heavy Oscillating Joints
This FAG GE70-DO-C3 spherical plain bearing is dimensioned for pivot points that see slow, heavy oscillation rather than continuous rotation — exactly the motion profile inside a hydraulic cylinder eye or a crusher toggle linkage. The 70 mm bore seats on a hardened pin while the 110 mm outer ring locates in the housing, and the phosphated steel-on-steel contact handles the alternating radial loads that rolling-element bearings would struggle to survive. We have supplied this size range to MRO teams replacing OEM joints on mining cylinders, where the cross-reference must align on sliding surface treatment, lubrication access, and clearance — not just envelope dimensions.
Load Spectra, Thermal Drift, and Contamination at the Pivot
Radial loads on a cylinder eye joint spike every time the actuator changes direction, and in mining environments those reversals come with shock components from the driven load. Ambient temperatures at a crusher station can swing widely between day and night shifts, which is where C3 clearance gives the joint room to expand without the outer ring gripping the housing bore tight. Re-lubrication intervals shorten dramatically once grit enters the sliding zone, so the DO-type groove and hole let grease purge contaminants outward during each maintenance round [NEED_CITE: re-lubrication interval adjustment for contaminated environments]. The open design means the sliding surface is exposed — external sealing responsibility falls on the housing design, not the bearing.
Reading the Specs That Actually Govern Field Life
The phosphated steel-on-steel sliding surface is the first spec to verify: phosphate conversion coating lowers the breakaway friction coefficient and provides a run-in layer that prevents metal-to-metal galling during the first hours of operation. The DO suffix confirms lubrication grooves and through-holes in both inner and outer rings, enabling grease to reach the entire contact arc regardless of which ring is stationary. C3 clearance sits above the standard CN group, compensating for interference fits on the pin and housing plus thermal growth during sustained operation — installing a CN-clearance bearing in this spot would risk preload lock-up once temperatures climb. The open construction trades contamination protection for lower friction, making housing seals and wiper rings critical to service life.
The Downtime Bill Behind a Wrong Suffix
A standard-clearance plain bearing forced into a C3 application does not fail gracefully. The inner ring seizes on the pin, the phosphated layer spalls, and the resulting debris scores the housing bore — turning a component swap into a full cylinder rebuild. Counterfeit bearings compound the problem: soft inner rings that pass a Rockwell spot-check but collapse under sustained load, or cloned packaging that defeats a visual inspection [NEED_CITE: counterfeit bearing detection methods in industrial supply chains]. ISO 15243 classifies these outcomes under adhesive wear and surface disturbance, yet the real cost is measured in missed production shifts and warranty disputes that no supplier wants to own.
Sourcing Confidence Without Guessing
Every FAG GE70-DO-C3 spherical plain bearing we ship traces through authorized distributor channels with lot-level documentation, so your quality team can verify the batch before it leaves the receiving dock. Our cross-reference database matches sliding surface material, clearance class, and lubrication features simultaneously — not just the bore and OD — eliminating the suffix mismatches that cause field failures. When your procurement spec calls for origin paperwork, we include country-of-origin certificates and HS code guidance with the shipment. Pre-delivery authenticity checks follow the brand’s official verification pathway, and our engineering team stays available after the bearing is in service to walk through installation torque, alignment checks, and first-interval re-greasing schedules.
Documentation & Authenticity
- Supplier Certificate of Conformity listing batch and lot numbers traceable to the FAG GE70-DO-C3 production run
- Third-party dimensional inspection report confirming bore diameter, OD, and width against ISO 6124-1 tolerances
- Country-of-origin certificate and HS code documentation packaged for import clearance at destination
- Authenticity verification guidance referencing the manufacturer’s official QR-code or app-based validation channel
- Material certificate covering the steel grade and phosphate surface treatment of the sliding contact zones
Storage, Handling & Mounting
- Keep the FAG GE70-DO-C3 in its original sealed wrapping until the day of installation; the phosphated sliding surface attracts condensation once exposed to humid workshop air.
- Store flat on a shelf — not standing on edge — to prevent the 1.8 kg outer ring from deforming the inner ring’s lubrication groove profile under its own weight over prolonged periods.
- Before pressing the 70 mm bore onto the pin, verify the shaft interference fit does not consume the entire C3 clearance; residual internal clearance must remain positive after mounting.
- After installation, pump grease through the DO-type lubrication hole until fresh grease purges from both sides of the sliding gap, confirming the groove path is unobstructed.
- In mining or quarry environments where airborne grit is constant, confirm the housing wiper seal contacts the outer ring face — this open bearing relies on external sealing for contamination defense.
Start the Technical Conversation
Share your hydraulic cylinder drawing or OEM equipment number so we can confirm the FAG GE70-DO-C3 spherical plain bearing matches your pivot geometry, load spectrum, and re-lubrication access. If a cross-reference from another brand is already on the BOM, send it over and we will verify sliding surface, clearance, and lubrication alignment before quoting.
Frequently Asked Questions
Q: How do I confirm the authenticity of a FAG spherical plain bearing bought through a multi-brand supplier?
A: Request the batch and lot number from your supplier, then cross-check it through the manufacturer’s official verification app or authorized distributor portal. A genuine FAG GE70-DO-C3 will return matching production data including origin facility and date code.
Q: What does C3 clearance mean on a spherical plain bearing, and when should I avoid standard CN?
A: C3 indicates internal clearance greater than the normal CN group. For hydraulic cylinder pivots where the inner ring is an interference fit on the pin and operating temperatures rise above ambient, C3 prevents the clearance from collapsing to zero and locking the joint.
Q: How does the DO suffix affect my re-lubrication schedule?
A: The DO suffix means both rings carry lubrication grooves and through-holes. Grease injected at the fitting travels across the full sliding arc, allowing shorter purge intervals in contaminated environments compared to bearings without dedicated grease paths.
Q: Can I substitute a different brand for the GE70-DO-C3 without re-engineering the pivot?
A: A direct substitute must match the 70 × 110 mm envelope, the steel-on-steel phosphated sliding surface, the C3 clearance, and the DO lubrication feature simultaneously. Missing any one of these parameters risks misalignment, inadequate lubrication, or clearance loss under load.
Q: What installation checks matter most for this open-type spherical plain bearing?
A: Verify shaft and housing fits preserve residual C3 clearance after mounting, confirm the DO grease path is unobstructed before closing the housing, and ensure external wiper seals are in place since the open design provides no built-in contamination barrier.
