Description
Authorized Channel Integrity — Every SKF N 1016 PHA/SPVR521 we supply ships with batch-level traceability tied to an authorized distributor invoice, not a middleman’s spreadsheet.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SKF N 1016 PHA/SPVR521 |

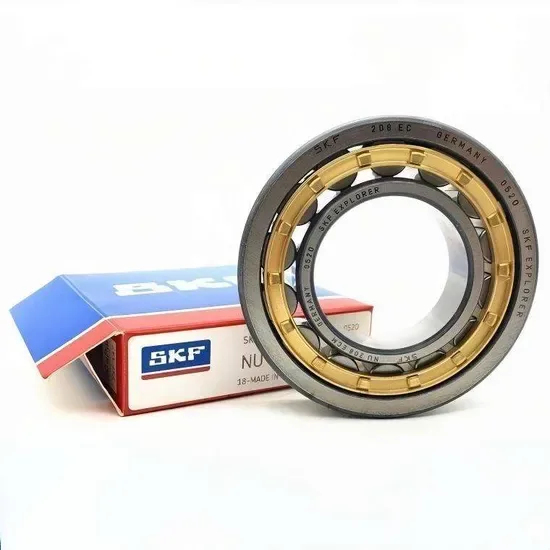

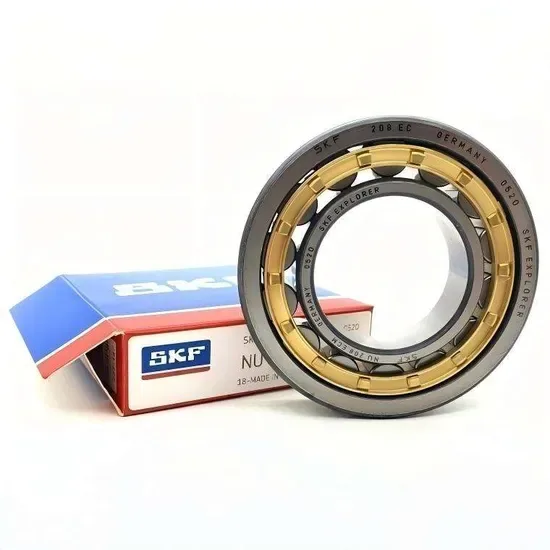

| Bearing Type | Single Row Cylindrical Roller Bearing |
| Bore Diameter (d) | 80 mm |
| Outside Diameter (D) | 125 mm |
| Width (B) | 22 mm |
| Number of Rows | Single Row |
| Bore Type | Cylindrical |
| Arrangement | Single Row, Non-locating |
| Weight | 0.250 kg |
| Origin | China |
Suffix note: PHA and SPVR521 are specialized design codes that require confirmation against the current SKF super-precision catalog for exact internal geometry and clearance specification.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machine tool manufacturing | High-speed spindle front and rear support positions |
| Precision equipment | Optical grinding head main shaft |
| Industrial gearboxes | High-speed stage shaft support in precision drives |
| Steel and metallurgy | Rolling mill guide roller journals |
What Happens When a Suffix Gets Ignored on a Spindle Bearing
The suffix is where the bearing’s real identity lives — and where most field failures begin.
I pulled a failed N1016 out of a high-speed spindle in Lagos three years ago. The procurement team had matched the base number perfectly, ordered from a trader who quoted well, and installed a standard P0-grade cylindrical roller bearing where an SP-precision unit was required. Three weeks later, shaft vibration spiked past acceptable thresholds, the spindle overheated during a finishing cut, and the entire line went down for unplanned maintenance [NEED_CITE: bearing failure mode classification per ISO 15243]. The base number was right. Everything else was wrong. That pattern repeats constantly — buyers focus on the bore and outside diameter while the clearance, cage material, and precision suffixes that determine whether a bearing survives in a high-speed application get treated as optional details. Counterfeit units with cloned QR codes and soft inner rings make the problem worse, because they pass a casual visual inspection and only reveal themselves under thermal load.
Matching Precision Cylindrical Rollers to Spindle Duty
A spindle bearing does not just carry radial load — it maintains rotational accuracy at speeds where even minor geometric deviation generates heat. The SKF N 1016 PHA/SPVR521 cylindrical roller bearing enters applications where radial stiffness and high-speed capability must coexist, typically in machine tool spindles that demand consistent bore-to-OD concentricity throughout the operating temperature range. We have supported buyers retrofitting grinding heads where the original equipment specified a particular internal clearance and cage configuration, and matching those parameters — not just the envelope dimensions — determined whether the replacement unit lasted a full production campaign or failed before the first tool change.
Thermal Drift and the Clearance Problem in High-Speed Spindles
Spindle bearings face a contradiction: they need tight internal geometry for rotational accuracy, but the friction heat generated at high rpm expands the inner ring and closes whatever clearance existed at room temperature. A standard CN clearance installed in a spindle application often results in preload conditions that the bearing was never designed to handle, driving cage temperatures upward and accelerating lubricant breakdown [NEED_CITE: thermal expansion effects on bearing internal clearance per ISO 281]. Oil-air or oil-jet lubrication is typically mandatory at these speeds — grease-packed arrangements simply cannot shed heat fast enough. The cylindrical bore on this N1016 configuration demands precise shaft and housing fits, because unlike tapered bore variants, there is no adjustment mechanism to set residual clearance during mounting. Every micron of interference fit directly affects the operating clearance under load.
Reading Between the Lines of the N1016 Designation
The N-type single row cylindrical roller bearing carries radial loads through line contact between the rollers and raceway, providing high radial capacity while permitting axial displacement in one direction. The 80 mm bore and 125 mm outside diameter place this bearing in a size range common to medium-speed precision spindles and gearbox high-speed stages. The SP precision class — when confirmed for this specific variant — indicates dimensional and running accuracy tightened beyond standard P5 tolerances, which is essential for applications where shaft runout directly affects workpiece surface finish. The roller complement and cage design in super-precision cylindrical rollers are optimized to minimize friction heat while maintaining roller guidance at speed, a balance that standard industrial grades do not attempt to achieve [NEED_CITE: super-precision bearing classification standards DIN 620].
The Invoice Price Versus the Real Cost
A genuine SKF N 1016 PHA/SPVR521 from a traceable source costs more upfront than an unverified alternative — but the cost comparison changes completely when you factor in what happens when the wrong bearing goes into a spindle. Premature cage failure in a precision grinding application does not just mean a bearing replacement; it means scrapped workpieces, missed delivery deadlines, and potential damage to the spindle housing if a roller breaks through the cage under load. Unplanned downtime on a machine tool is measured in lost production hours, not bearing unit prices. Counterfeit bearings with case-hardened rings that appear correct on the outside but lack core hardness fail unpredictably, often after passing initial run-in inspection [NEED_CITE: counterfeit bearing detection methods and field failure patterns]. Sourcing through verified channels with documentation is not a premium preference — it is the only way to close the loop between what was specified and what was actually installed.
How We Close the Gap Between Part Number and Installed Reality
Our approach starts before the quotation. When an inquiry arrives for an SKF N 1016 PHA/SPVR521, we verify the suffix combination against the current manufacturer catalog and confirm whether the requested configuration is an active production variant or requires cross-reference to an equivalent designation. Every unit we supply is sourced through authorized distributor channels with batch-level traceability — not from open-market stock where provenance is uncertain. Our cross-brand interchange database matches not just the base number but the clearance, cage material, and precision suffix across SKF, NSK, FAG, TIMKEN, NTN, and KOYO catalogs, so buyers evaluating alternatives can substitute with confidence. We provide country-of-origin documentation for import compliance, and every shipment includes the dimensional inspection data needed to verify that what arrived matches what was ordered.
Documentation & Authenticity
- Supplier Certificate of Conformity with batch and lot numbers tied to the SKF N 1016 PHA/SPVR521 shipment, enabling full upstream traceability
- Third-party dimensional inspection report confirming bore, OD, and width against super-precision tolerances before dispatch
- QR code verification pathway via the SKF Authenticate app for end-user confirmation of genuine origin
- Country-of-origin documentation package supporting customs clearance and import duty classification
- Material test certificate available upon request, confirming bearing steel grade and heat treatment compliance
Storage, Handling & Mounting
- Retain the original sealed packaging until the moment of mounting — the N1016’s precision-ground raceways are vulnerable to particulate contamination that degrades running accuracy
- Store horizontally in a climate-controlled environment with stable temperature to prevent condensation inside the packaging, particularly critical for super-precision cylindrical rollers where surface corrosion initiates spalling
- Use clean, lint-free gloves during handling; skin moisture on the 80 mm bore surface creates localized corrosion that compromises shaft fit integrity
- For cylindrical bore mounting, apply controlled induction heating to the inner ring only — uneven thermal expansion during press-fitting can brinell the raceway and destroy the precision class before the spindle ever starts
- Confirm shaft and housing tolerance zones match the super-precision fit recommendation before mounting; standard industrial fits will preload or loosen this bearing outside its design envelope
Starting the Conversation
Share your spindle speed range, operating temperature, and required rotational accuracy class so we can verify whether the SKF N 1016 PHA/SPVR521 is the correct configuration for your application or whether a different suffix variant better matches your duty cycle. If you are replacing an existing bearing, providing the OEM equipment number and the full designation from the nameplate allows us to cross-check clearance, cage, and precision alignment before quoting.
Frequently Asked Questions
Q: How can I verify that a SKF N 1016 PHA/SPVR521 is genuine after delivery?
A: SKF provides an official authentication app that reads the QR code or barcode on the bearing packaging and cross-references it against their production database. We support this verification by supplying batch and lot traceability documentation that links back to the authorized distributor channel.
Q: What documentation should accompany a genuine super-precision bearing purchase?
A: At minimum, you should receive a Certificate of Conformity with batch traceability, dimensional inspection data, and country-of-origin documentation. For import shipments, HS code classification and customs support documents are also standard from our supply chain.
Q: How do I match a cross-reference bearing to the correct internal specifications?
A: Base number matching is only the first step. The clearance class, cage material and design, precision grade, and any internal geometry suffixes must all align. Our cross-reference database covers SKF, NSK, FAG, TIMKEN, NTN, and KOYO with these parameters matched simultaneously, not sequentially.
Q: What does the SP precision class mean in practical terms for spindle applications?
A: SP (Super Precision) indicates dimensional and running accuracy that exceeds standard P5 tolerance boundaries, providing tighter control on bore diameter, outside diameter, and running accuracy. This is essential in spindle applications where shaft runout directly affects machining quality.
Q: What are the risks of sourcing precision bearings from unverified traders?
A: Unverified supply chains introduce counterfeit bearings with soft inner rings, cloned packaging, and QR codes that redirect to fraudulent verification sites. These units may pass visual inspection but fail under thermal load, causing unplanned downtime and potential spindle damage.
Get Your Spindle Bearing Sourced Right
Send us your application parameters or OEM equipment number, and we will confirm suffix availability, cross-reference alignment, and lead time within one business day.
