Description
Authorized-Channel Traceability — Every NNU4921BK/SPW33 we ship is backed by batch-level paperwork tracing it to the manufacturer’s official distribution network, not a spot-market reseller.
Technical Specifications
| Parameter | Value |
|---|---|

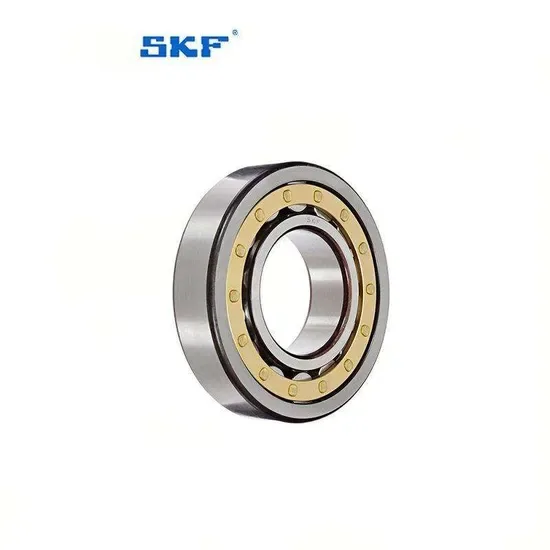

| Designation | SKF NNU4921BK/SPW33 |
| Bearing Type | Double Row Cylindrical Roller Bearing |
| Bore Diameter (d) | 105 mm |
| Outside Diameter (D) | 145 mm |
| Width (B) | 40 mm |
| Bore Type | Tapered Bore (1:12) |
| Number of Rows | Double Row |
| Seal or Shield Type | Open |
| Precision Class | SP (Super Precision) |
| Cage Type | W33 — Annular Groove with Three Lubrication Holes |
| Arrangement | NNU — Outer Ring with Three Ribs, Inner Ring without Ribs |
| Origin | China |
Suffix W33 indicates lubrication groove and holes on the outer ring; confirm exact cage material designation against the manufacturer’s current catalog as cage variants may exist within the SP class.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machine Tool | Main spindle front and rear support positions |
| Steel & Metallurgy | Rolling mill work roll and backup roll necks |
| Industrial Gearbox | High-speed pinion shaft support in planetary stages |
| Mining & Crushing | Vibrating screen exciter shafts under continuous radial load |
Why Overlooking the /SPW33 Suffix Triggers Spindle Seizure
A base-number match without suffix verification can install a bearing that thermally binds within the first warm-up cycle.
I once matched an NNU4921 cross-reference for a steel mill client. The base designation was correct, but I missed the SP-class cage and clearance spec on the print. The replacement unit seized within weeks because its standard cage could not survive the thermal load of a high-speed roll neck. That failure shaped how I now read every suffix before a single unit ships [NEED_CITE: cylindrical roller bearing cage failure under thermal cycling]. Counterfeit units with cloned QR codes and soft inner rings are circulating through unverified middlemen, and a spindle operating at SP-class tolerances has zero margin for dimensional drift or material shortcuts.
How the Tapered Bore and SP Class Match Spindle Demands
The SKF NNU4921BK/SPW33 double row cylindrical roller bearing pairs a 1:12 tapered bore with SP super-precision tolerances to let you dial in exact radial preload during mounting. On machine tool spindles where runout must stay within microns after thermal growth, that combination of adjustable fit and tight manufacturing class is what keeps the cutting edge true. We routinely supply these alongside matched angular contact sets so the entire spindle stack is cross-referenced on clearance, cage, and precision — not just the base number.
Operating Loads, Speeds, and Thermal Behaviour
Spindle and roll-neck applications impose continuous radial loads with minimal axial component, demanding high radial rigidity that only a double-row NNU arrangement provides. Operating speeds often push the oil-film boundary, meaning the annular groove and three lubrication holes of the W33 feature become essential for maintaining a stable hydrodynamic film between roller and raceway [NEED_CITE: rolling bearing lubrication regime transition under high-speed operation]. Thermal expansion of the shaft during warm-up directly alters internal clearance, which is why the tapered bore must be driven to a calculated axial position rather than simply pressed to a shoulder.
Decoding the Critical Suffixes
The NNU inner-ring-without-ribs design lets the inner ring, cage, and roller assembly be mounted independently of the outer ring — a practical necessity on roll necks where interference fits are measured in thousandths. The K tapered bore (1:12 taper) is not a convenience feature; it is the preload adjustment mechanism itself, and the correct drive-up distance governs whether the installed clearance ends up beneficial or destructive. SP precision sits above P5 and below UP in the ISO 492 hierarchy, specifying tighter running accuracy and dimensional variation than standard production. W33 adds an annular groove and three radial oil holes in the outer ring, allowing re-lubrication without disassembling the housing — a small detail that extends relube intervals significantly on enclosed gearboxes.
The Hidden Expense of a Wrong-Suffix Substitution
Correct specification and a trusted supply source protect against unplanned downtime that dwarfs the unit cost of the bearing itself. A standard-clearance substitute in an SP-required spindle causes thermal binding and raceway smearing classified under ISO 15243 as surface distress from inadequate internal geometry [NEED_CITE: ISO 15243 rolling bearing damage classification]. Counterfeit inner rings with lower core hardness spall prematurely under the same load spectrum, and warranty claims on downstream equipment are voided the moment a non-traceable component is found in the assembly.
Why Procurement Engineers Route NNU Orders Through Our Supply Chain
Every SKF NNU4921BK/SPW33 double row cylindrical roller bearing we source passes through authorized distributor channels, which means the Certificate of Conformity references a verifiable production batch rather than a trading-company lot number. We run cross-brand interchange checks against NSK, FAG, and TIMKEN equivalents — aligning clearance class, cage material, and precision suffix, not just the base bore code — so you can substitute confidently when lead times diverge. Our origin documentation package clears customs without last-minute holds, and for new applications we recommend a sample or trial batch before you commit to full production volumes.
Documentation & Authenticity
- Supplier Certificate of Conformity (COC) referencing the exact production batch of this NNU4921BK/SPW33, linking it to the manufacturer’s authorized distribution chain.
- Dimensional and runout inspection data confirming SP-class running accuracy before dispatch, so the tapered bore drive-up calculation starts from verified figures.
- QR code verification pathway via the brand’s official mobile application, allowing your incoming inspection team to confirm authenticity on the receiving dock.
- Country-of-origin statement and HS-code documentation prepared for import clearance, reducing broker back-and-forth on metallurgical goods.
- Material certificate accompanying the shipment, confirming bearing steel composition and heat-treatment lot for your quality management system.
Storage, Handling & Mounting
- Keep this SP-precision NNU4921BK/SPW33 in its original sealed packaging until the moment of mounting; opening early exposes the honed raceways to humidity and dust that degrade running accuracy.
- The tapered bore requires a controlled axial drive-up on the shaft journal; use a hydraulic nut or calibrated locknut method and measure residual internal clearance with a dial indicator rather than relying on feel.
- W33 lubrication holes must be aligned with the housing oil-feed port during outer-ring installation — misalignment blocks re-lubrication and shortens service intervals on enclosed spindle housings.
- Handle the separated inner ring and roller assembly with clean, lint-free gloves; fingerprint residue on SP-class surfaces can initiate corrosion pits that manifest as vibration signatures within the first operating month.
- For large-diameter open bearings like this 145 mm OD unit, store horizontally on a flat surface to prevent cage distortion under the weight of the roller set.
Request a Technical Quotation
Share your spindle speed, radial load, and operating temperature envelope so we can confirm whether the standard SP clearance band suits your thermal growth profile, or whether an adjusted drive-up specification is needed. Provide the OEM equipment number for a full cross-reference check against NSK, FAG, and TIMKEN equivalents. We will respond with batch availability, lead time, and the documentation package matched to your import requirements.
Frequently Asked Questions
Q: How can I verify the authenticity of the SKF NNU4921BK/SPW33 I receive?
A: Scan the QR code on the packaging using the brand’s official mobile application. The app returns production batch, manufacturing site, and distribution path. Cross-check this against the Certificate of Conformity we supply — the batch numbers must match.
Q: What does SP precision class mean for my machine tool spindle compared to P4 or P5?
A: SP is a super-precision class defined for machine tool applications, specifying tighter bore and outside diameter tolerances plus running accuracy than P5. It sits between P4 and UP in the hierarchy. The correct class depends on your spindle speed and runout tolerance.
Q: How do I mount a tapered bore cylindrical roller bearing and set the correct preload?
A: The 1:12 tapered bore is driven axially onto the matching tapered journal using a hydraulic nut or precision locknut. The drive-up distance is calculated from the required residual radial clearance. Measure actual clearance with a dial indicator after mounting to confirm the target is reached.
Q: What is the purpose of the W33 lubrication feature?
A: W33 provides an annular groove and three radial holes in*ugh the housing directly into the bearing interior. This enables effective re-lubrication without disassembly, extending service intervals on gearboxes and spindles.
Q: Can the NNU4921BK/SPW33 be interchanged with NSK, FAG, or TIMKEN equivalents?
A: Cross-brand substitution is possible, but the interchange must align not just the base bore and OD, but also the SP precision class, tapered bore ratio, cage design, and W33 lubrication feature. Request a full cross-reference comparison from us before substituting.
Secure Your NNU4921BK/SPW33 Supply
Send us your application parameters or OEM drawing number, and we will return a matched quotation with full traceability documentation.
Contact our engineering desk through your preferred inquiry channel for batch availability and lead-time confirmation.
