Description
Authorized Channel Sourcing — 22208EK spherical roller bearings procured through traceable distributor networks with batch-linked certificates and origin documentation.
Technical Specifications
| Parameter | Value |
|---|---|

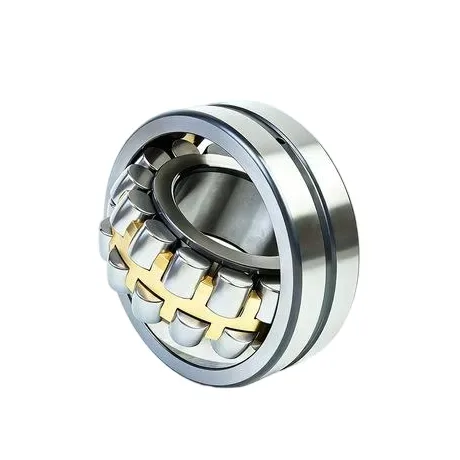

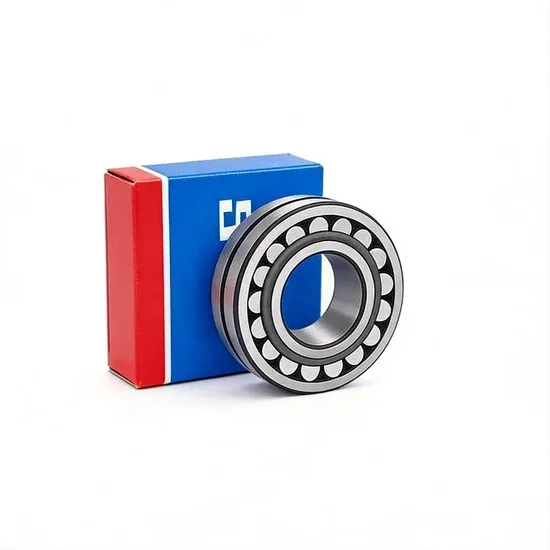

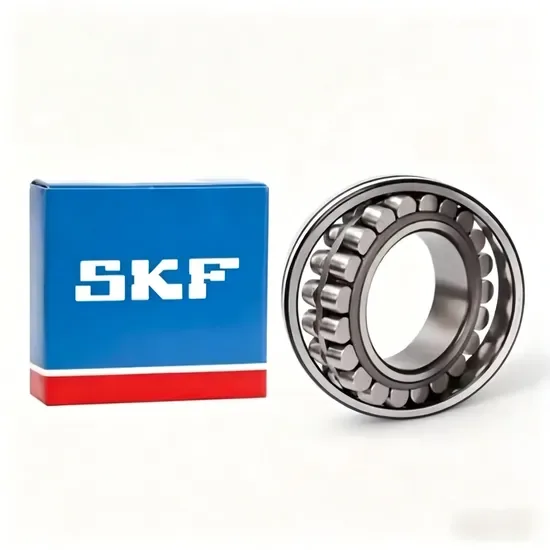

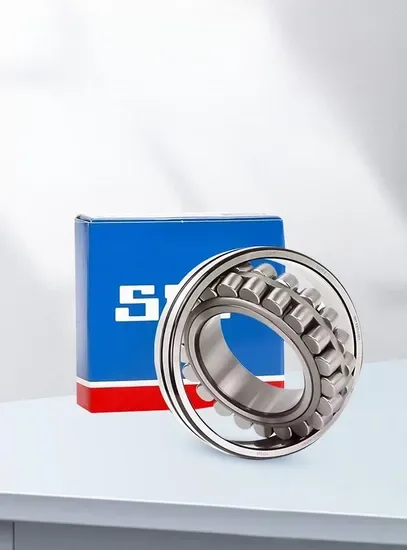

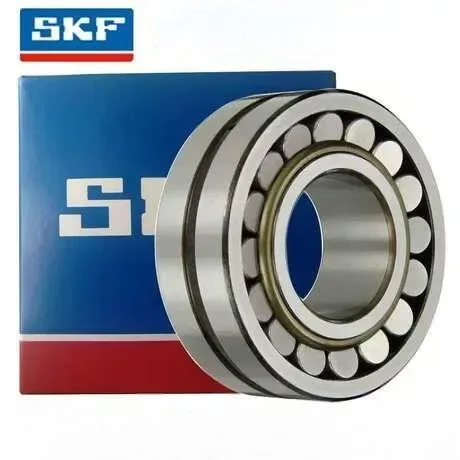

| Designation | 22208EK Spherical Roller Bearing |
| Bearing Type | Spherical Roller Bearing |
| Bore Type | Tapered (1:12) |
| Outside Diameter (D) | 80mm |
| Width (B) | 23mm |
| Number of Rows | Two |
| Cage Material | Steel (CC-type) |
| Clearance Class | CN (standard) |
| Precision Class | P0 |
| Arrangement | Single bearing |
| Seal or Shield Type | Open |
| Standards | ISO 15, ISO 281, ISO 15243 |
| Origin | Verified upon order confirmation |
Clearance, cage variant, and precision suffixes beyond the EK designation are to be confirmed per the specific brand catalog when cross-referencing.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and Crushing | Crusher eccentric shaft, vibrating screen exciter |
| Steel and Metallurgy | Continuous caster guide roller, rolling mill table roller |
| Industrial Machinery | Heavy-duty gearbox intermediate shaft, paper machine dryer section |
What a Tapered Bore Mismatch Costs on Vibrating Equipment
A base-number match without the EK suffix lands a cylindrical bore where a 1:12 taper was specified.
I’ve seen the aftermath on a Chilean copper site where the procurement team swapped a 22208EK for a plain 22208 because the base designation aligned. The adapter sleeve wouldn’t seat on a cylindrical bore, misalignment chewed through the pressed-steel cage, and the vibrating screen went down inside six weeks. That line processes ore around the clock, so unplanned downtime on the primary screen cascades into the entire crushing circuit. Counterfeit bearings compound the problem further — soft inner rings with cloned markings pass a quick visual check but spall under shock loads that mining duty demands [NEED_CITE: counterfeit bearing detection via hardness verification]. When you source a 22208EK spherical roller bearing wholesale, the suffix isn’t optional.
How the 22208EK Meets Mining and Steel Mill Demands
Vibrating screens and crusher eccentrics impose combined radial and axial loading with continuous deflection, which is precisely where a spherical roller bearing earns its keep. The two-row design distributes load across a large contact area, while the self-aligning geometry absorbs housing bore misalignment that is inevitable under dynamic deflection. The EK taper allows direct shaft mounting with an adapter sleeve, simplifying field replacement where hydraulic presses aren’t available. When we match this 22208EK spherical roller bearing wholesale across brands, we verify that the cross-reference aligns on cage type and clearance — not just the bore size — so a FAG or NTN substitute behaves identically to the SKF original.
Operating Conditions That Define Bearing Life
Radial loads dominate on crusher eccentric shafts, but the cyclic reversal as the shaft orbits generates significant axial thrust components that the second roller row must absorb. Speeds on vibrating screens tend to stay moderate, yet the high-frequency vibration accelerates cage fatigue, making cage material selection critical. Ambient temperatures in steel mill roller tables routinely exceed what standard CN clearance can accommodate, because thermal expansion of the shaft reduces internal clearance and risks thermal binding. Grease lubrication is typical for these sizes, but contamination from ore dust or mill scale demands external sealing that an open bearing like the 22208EK relies on the housing to provide [NEED_CITE: bearing seal effectiveness in particulate environments]. Proper adapter sleeve tightening — achieving the correct axial drive-up and residual clearance — is where most field failures actually originate.
Reading the Specs That Matter
The EK suffix tells you the bore is tapered at 1:12, which dictates both the mounting method and the achievable interference fit. With an adapter sleeve, you tighten the lock nut to drive the bearing up the taper, reducing internal clearance to the target residual value — over-tighten and you crush the roller-to-raceway clearance, under-tighten and the inner ring creeps on the shaft. The CC-type pressed steel cage keeps weight low and handles the vibration spectrum of screening equipment, though brass cages offer higher speed margins where applicable. Two rows of barrel-shaped rollers give the bearing its radial load capacity while the spherical outer raceway permits angular misalignment up to several degrees, a feature that prevents edge loading when the shaft deflects under peak crushing forces. Standard P0 precision is adequate for this size and application class, as the self-aligning function already compensates for geometric deviations that would destroy a rigid bearing [NEED_CITE: ISO 281 basic dynamic load rating and L10 life calculation methodology].
The Hidden Cost of Cutting Corners on Sourcing
Choosing a bearing with the right number but wrong clearance class, an unverified origin, or a counterfeit inner ring doesn’t show up on the purchase order — it shows up as a seized shaft at 3 AM on a Saturday. ISO 15243 classifies bearing failures into distinct damage modes, and a disproportionate share trace back to selection errors, counterfeit material, or improper mounting rather than normal fatigue [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. A premature failure on a primary crusher eccentric doesn’t just cost the replacement bearing; it costs the lost production tonnage, the emergency freight for a substitute, and the credibility you lose with your operations team. Genuine product sourcing with full traceability isn’t a premium feature — it’s the baseline that keeps the cost-per-ton predictable.
What Sets Our Supply Chain Apart
Every 22208EK we ship arrives through authorized distributor channels, which means the paperwork trail goes back to the manufacturer’s production batch — not a trading desk with a photocopied certificate. Our cross-reference database matches across SKF, FAG, NSK, TIMKEN, NTN, and KOYO on cage material, clearance class, and precision suffix simultaneously, so when your preferred brand is on a long lead time, the substitute we quote will perform identically in the housing. We provide country-of-origin documentation that satisfies customs requirements in Middle Eastern, African, and Latin American markets where import compliance is a real gate. Anti-counterfeit verification guidance walks your receiving team through QR code checks using brand official apps before the bearing even leaves the dock. For large-volume projects, we coordinate batch consolidation so your entire vibrating screen rebuild uses bearings from the same production lot.
Documentation & Authenticity
- Supplier Certificate of Conformity tied to the specific production lot of your 22208EK shipment, not a generic blanket certificate
- Third-party dimensional inspection report verifying bore taper angle, outside diameter, and width against ISO 15 tolerances
- Country-of-origin certificate formatted for import documentation in markets requiring consular legalization or chamber of commerce endorsement
- QR code verification instructions using the manufacturer’s official mobile application for on-dock counterfeit screening
- Material certificates confirming bearing steel grade and heat treatment compliance for each batch
Storage, Handling & Mounting
- Keep the 22208EK in its original sealed packaging until the moment of mounting; early exposure in a humid warehouse risks corrosion on the precision-ground tapered bore surface
- When mounting on an adapter sleeve, use the axial drive-up method with a feeler gauge to verify residual clearance matches the target — do not rely on lock nut torque alone
- Store horizontally on a flat shelf rather than standing on edge; uneven support on a 22208EK can deform the pressed steel cage over extended storage periods
- Handle with clean lint-free gloves; fingerprint acidity on the spherical outer raceway initiates corrosion that compromises the self-aligning function
- Apply a compatible rust preventive to the external surfaces if the bearing will sit in an open housing before commissioning, since this is an open-type bearing without integral seals
Technical Consultation & Next Steps
Share your operating parameters — shaft load, speed, ambient temperature, and housing conditions — so we can confirm whether standard CN clearance suits your application or whether C3 is needed for thermal expansion. Provide the OEM equipment number and we will cross-reference the exact suffix combination required, including any cage or clearance variants beyond the base EK. Request the documentation package for your specific destination market to verify import compliance before committing to volume.
Frequently Asked Questions
Q: What does the EK suffix mean on a 22208 spherical roller bearing?
A: EK designates a tapered bore with a 1:12 taper ratio, allowing the bearing to be mounted directly onto a tapered journal shaft or via an adapter sleeve on a cylindrical shaft. This mounting method achieves a secure interference fit and allows precise adjustment of residual internal clearance during installation.
Q: When cross-referencing 22208EK across brands, what besides the base number must match?
A: The cage type (such as CC for pressed steel), clearance class (CN, C3, or C4), and precision grade must all align with the original specification. A base-number-only match can result in a bearing with different thermal behavior or vibration resistance that fails prematurely under your specific operating conditions.
Q: What clearance class should I specify for a 22208EK on a vibrating screen?
A: Standard CN clearance is typical for moderate-temperature vibrating screen applications. However, if the operating environment involves elevated ambient heat or the shaft runs hot from adjacent processes, C3 clearance may be required to compensate for thermal expansion and prevent internal preload from eliminating the operating clearance.
Q: How do I verify the authenticity of a 22208EK before installation?
A: Check the bearing markings against the manufacturer’s official mobile app using the QR code or alphanumeric batch code on the box. Verify that the weight matches catalog specifications, inspect the bore taper for consistent machining quality, and confirm that the cage and roller assembly show no signs of rework or mismatched components.
Q: What are the typical lead times for sourcing 22208EK across different brands?
A: Lead times vary by brand and current distributor stock levels. Common brands may ship within days from regional inventory, while specific suffix combinations or less common origin requirements can require multi-week procurement cycles. We confirm exact availability and shipping timelines at the quotation stage.
Secure Your 22208EK with Full Traceability
Send us your equipment number and operating conditions today, and we will return a cross-referenced quote with matched suffixes and complete documentation. Contact our engineering team through the inquiry form or reach out via the contact channels listed on our site.
