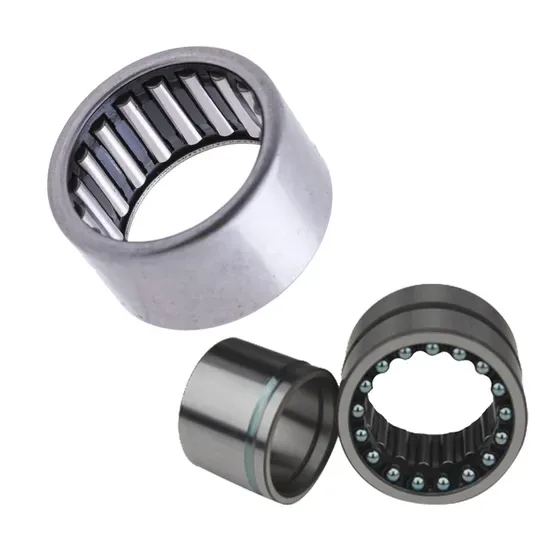

INA NK65/25-XL Needle Roller Bearing 65x78x25mm Genuine

Description

Authorized Channel Sourcing — every INA NK65/25-XL needle roller bearing we ship carries full Schaeffler batch traceability, verified down to the original mill certificate and raceway surface grade.

Technical Specifications

*X-Life (-XL) designation indicates optimized internal geometry per Schaeffler catalogs; specific performance values and fatigue life multipliers should be confirmed against the current INA product datasheet for this exact bore size.

Application Suitability

What Happens When Buyers Ignore the Cage and X-Life Suffix on an NK65/25-XL

A cross-reference that matches only the base NK65/25 number but overlooks the cage retention method and X-Life internal geometry is a premature failure waiting to happen.

I watched a Lagos gearbox assembly line ship sixty gearboxes with what looked like correct needle rollers — the outer diameter and width were within tolerance, the cages were present, and the part numbers on the boxes matched. Three weeks later, micro-pitting appeared on the raceway contact zones before the units even finished burn-in testing. The surface finish specification on the thin-section needles was nowhere near X-Life grade, and the cage pocket geometry allowed roller skew under load [NEED_CITE: needle roller skew and edge-loading failure modes per ISO 15243]. That batch cost the plant double — once for the initial purchase, and again for the replacement and labor. Counterfeit and mis-specified INA NK65/25-XL needle roller bearings enter the supply chain through unverified middlemen every day, and the damage rarely shows up on a simple caliper check.

Where Radial Compactness Dictates the Design Choice

The INA NK65/25-XL needle roller bearing solves a specific packaging problem: when a gearbox housing bore is machined to 78 mm and the shaft journal sits at 65 mm, there is only 6.5 mm of radial section available for load-carrying elements. Ball bearings of comparable bore would demand a far larger outside diameter, and full-complement needle sets without cages sacrifice speed capability. The cage-retained single-row configuration here keeps rollers uniformly spaced under radial load, prevents roller-to-roller friction at higher rotational speeds, and fits within the tight radial envelope that medium gearbox designers rely on. When I review cross-brand substitutions, I always verify that the replacement bearing matches not just the Fw × D × B envelope but also the cage type and the raceway surface grade — because a full-complement substitute in a caged-design application will overheat at speed, and a standard-grade substitute in an X-Life application will pit early under the same load spectrum.

Load, Speed, and Lubrication Realities on the Shaft Journal

This is a shaft-riding bearing, which means the 65 mm journal surface is the inner raceway. If the shaft hardness falls below the manufacturer’s specification — typically HRC 58 minimum — the journal itself will deform under the concentrated line contact of the needle rollers, generating wear debris that contaminates the entire gearbox oil bath [NEED_CITE: shaft hardness requirements for needle roller bearing inner raceway function]. Temperature matters too: gearbox oil sumps routinely reach elevated operating temperatures, and thermal expansion of the shaft relative to the housing changes the effective radial internal clearance. Because this bearing is open-type, it relies entirely on the gearbox’s own oil bath or oil splash system for lubrication — there is no integral seal to retain grease and no shield to block contaminant ingress, so the filtration quality of the gearbox lubrication circuit directly determines service life. Installation is a press-fit on the housing bore side, while the shaft side is a running fit; getting the housing bore tolerance wrong means the outer ring creeps under load, and that fretting wear destroys the housing bore within months.

Reading the Specifications That Actually Matter

The 25 mm width combined with the 65 mm bore gives this bearing a length-to-bore ratio that directly influences load distribution — a wider bearing spreads the radial load across a longer contact line on the shaft journal, reducing peak Hertzian contact stress and extending the calculated L10 life under ISO 281 methodology. The cage-retained design, rather than full-complement, trades a marginal reduction in maximum roller count for the ability to run at higher speeds without roller skew and without the heat generation that comes from unlubricated roller-to-roller contact. The X-Life internal geometry involves optimized roller end geometry and raceway profile modifications that reduce edge-loading stress concentrations — the exact profile parameters are proprietary to the manufacturer’s production facilities, but the practical result is a noticeably extended fatigue life under identical load and speed conditions compared to the standard NK65/25 without the -XL suffix. The 0.222 kg weight is typical for a caged needle roller of this section size and confirms a steel cage construction rather than a heavier machined brass alternative, keeping rotational inertia low for gearbox applications where the shaft must accelerate through critical speeds quickly during startup.

The Hidden Expense of a Bearing That "Looked Right"

Correct selection paired with a verifiable supply chain keeps the gearbox running until the next planned overhaul. The alternative — a bearing with the right part number on the box but the wrong cage geometry, substandard raceway finish, or a shaft journal that was never hardened to specification — manifests as unplanned downtime, catastrophic damage to the housing bore from outer ring creep, and warranty voidance on the assembled gearbox [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. In a medium gearbox application, a single premature needle roller failure can send metallic debris through the entire lubrication circuit, damaging downstream gears and other bearing positions far beyond the original failure point.

What Verifiable Sourcing Actually Looks Like

We source the INA NK65/25-XL needle roller bearing through authorized Schaeffler distributor channels, and every unit ships with batch-level traceability back to the production lot. When buyers request cross-brand interchange to an equivalent SKF, NSK, NTN, or KOYO designation, we align the substitution on cage type, internal geometry class, and precision grade simultaneously — not on the base number alone. Our warehouse checks raceway surface grade before shipment because I learned early in my career that a dimensionally correct needle roller with the wrong surface finish will micro-pit before the gearbox leaves the factory. Country-of-origin documentation and HS code support are included standard for every export shipment, because import compliance at destination should never be an afterthought. When application parameters are unusual — high shaft misalignment, elevated sump temperatures, or non-standard load cycling — we review the selection against the actual operating conditions rather than simply shipping the catalog number requested.

Documentation & Authenticity

• Schaeffler Certificate of Conformity with batch and lot numbers traceable to the specific INA production run for this NK65/25-XL needle roller bearing.
• QR code verification pathway via the official Schaeffler/INA authentication app — scan the packaging code to confirm the bearing has not been re-labeled from a different production batch.
• Third-party dimensional inspection report covering critical bore diameter (Fw 65 mm), outside diameter (D 78 mm), and width (B 25 mm) tolerances before dispatch.
• Country-of-origin documentation and HS code declaration prepared for import clearance at destination, specific to the actual manufacturing origin of the batch supplied.
• Material certificate confirming bearing steel specification for the cage and needle rollers, supporting incoming quality audits at buyer facilities.

Storage, Handling & Mounting

• Keep the INA NK65/25-XL in its original sealed packaging until the moment of installation; the open-type design means the exposed needle rollers and cage are vulnerable to ambient dust and moisture the instant the wrapper is removed.
• Store the gearbox shaft assembly horizontally in a dry environment — the 65 mm shaft journal that serves as the inner raceway must be protected from corrosion with a compatible preservative oil, because any rust pitting on that surface will imprint directly onto the needle rollers during the first hours of operation.
• During housing press-fit installation, apply force only to the 78 mm outer ring — never transmit mounting force through the cage or needle rollers, as the thin-section cage pockets on this single-row design will deform under axial impact.
• Verify shaft journal hardness (minimum HRC 58–62 range) and surface finish before mounting; this bearing has no inner ring, so the shaft itself must meet the manufacturer’s raceway specification or the needle rollers will cause rapid journal wear.
• Fill the gearbox with filtered lubricant before initial run-in — because the open-type NK65/25-XL has no integral seals, the first oil change should come early to flush any assembly debris from the roller contact zones.

Request a Technical Review Before You Order

Share your gearbox operating parameters — shaft speed, radial load spectrum, sump temperature, and filtration rating — and we will confirm whether the INA NK65/25-XL needle roller bearing matches your application or whether a different clearance or cage variant is required. If you are replacing an existing bearing by OEM equipment number rather than by part number, send us the equipment tag details and we will cross-verify the designation, including the cage and suffix alignment. We can also confirm current batch availability, lead time, and the origin documentation package for your specific import destination before you commit to a purchase order.

Frequently Asked Questions

Q: When cross-referencing the INA NK65/25-XL to another brand, what must match beyond the base number?
A: The base NK65/25 designation only confirms the bore, outside diameter, and width envelope. A correct interchange must also align the cage-retained design (not full-complement), the open-type configuration, and the X-Life internal geometry class. Substituting a standard-geometry equivalent without the optimized roller profile will reduce fatigue life under identical loading conditions. We verify all three parameters before confirming any cross-brand recommendation.

Q: What is the difference between NK and RNA needle roller bearings, and which one fits a hardened shaft?
A: NK bearings operate without an inner ring, running directly on a hardened and ground shaft journal. RNA bearings include a separate inner ring for applications where the shaft cannot be hardened to raceway specification or where shaft replacement is impractical. For your 65 mm gearbox shaft, if the journal surface meets the required hardness and surface finish, the NK65/25-XL is the correct choice — it saves radial space and eliminates one component. If the shaft is not hardened, an RNA equivalent with an inner ring would be needed instead.

Q: What does the -XL suffix mean, and how do I verify it?
A: The -XL suffix denotes Schaeffler’s X-Life series, which indicates optimized internal geometry — modified roller end profiles and raceway contours designed to reduce edge-loading stress concentrations. Verification is done by checking the suffix against the current INA product datasheet and confirming via the Schaeffler authentication app that the bearing’s QR code matches an X-Life production lot, not a relabeled standard series unit.

Q: How should I lubricate an open-type needle roller bearing in a gearbox?
A: Because the NK65/25-XL has no integral seals or shields, lubrication is the responsibility of the gearbox’s own oil circulation or splash system. Oil bath lubrication with filtration appropriate to the needle roller contact zone is typical. Grease lubrication is possible in non-immersed applications but requires a re-lubrication interval calculated from the operating temperature and load conditions, since there are no seals to retain the grease charge.

Q: How do I spot counterfeit INA needle roller bearings before installation?
A: Common indicators include needle rollers that pass dimensional checks but show incorrect surface finish under magnification, cages with inconsistent pocket geometry, packaging with cloned QR codes that do not resolve in the official Schaeffler app, and unusually low unit pricing from sellers who cannot provide a Certificate of Conformity linked to a verifiable production batch. We recommend scanning every bearing’s packaging code through the manufacturer’s official verification tool before mounting.

Get a Verified Quote with Full Traceability
Send your application parameters or OEM equipment number to confirm the INA NK65/25-XL needle roller bearing selection, and we will respond with batch availability, lead time, and the complete documentation package for your import requirements.
