Description
Authorized Channel Sourcing — Every SKF NN3022KTN9/SPVR521 unit we dispatch ships with batch-level traceability back to the manufacturer’s distribution network, so your spindle rebuild never starts with a question mark.
Technical Specifications
| Parameter | Value |
|---|---|

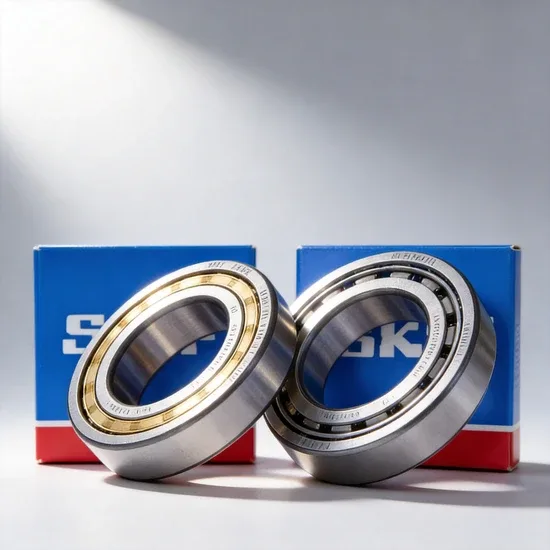

| Designation | SKF NN3022KTN9/SPVR521 |
| Bearing Type | Double Row Cylindrical Roller Bearing |
| Bore Diameter (d) | 110 mm |
| Bore Type | Tapered (1:12) |
| Outside Diameter (D) | 170 mm |
| Width (B) | 45 mm |
| Number of Rows | Double Row |
| Cage Material | Injection molded glass fiber reinforced polyamide 6,6 (TN9) |
| Seal or Shield Type | Open |
| Precision Class | SP (Super Precision) |
| Origin | China |
| Weight | 0.250 kg |
Note: The suffixes /SP and /VR521 appear on the product nameplate but require confirmation against the current SKF super-precision catalog for their exact definition and scope of supply.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machine Tool Manufacturing | High-speed spindle rear support, precision boring bar housing |
| Industrial Gearbox OEMs | Precision planetary gearbox main shaft, high-rigidity transmission shaft |
| General Industrial Machinery | Rotary indexing table center bearing, heavy-duty conveyor drive shaft |
What Happens When a Tapered Bore Meets the Wrong Fit Practice
A 1:12 tapered bore demands controlled axial drive-up — guesswork during mounting destroys residual clearance and invites thermal seizure within the first shift.
I once stood next to a CNC horizontal boring mill in northern Chile while the maintenance crew pressed an NN 3022 series bearing onto a tapered journal using nothing but a locknut and a feeler for feedback. They chased the "right" tightness by hand, overshooting the drive-up distance. The spindle ran warm within two hours and seized before the weekend. That SKF NN3022KTN9/SPVR521 would have survived for years if the installer had measured axial advance rather than relying on the torque wrench click [NEED_CITE: cylindrical roller bearing tapered bore mounting procedure per SKF methodology]. The real cost wasn’t the bearing — it was three days of scrapped castings and a missed shipment deadline.
Matching the Spindle Load Spectrum
The NN 3022 configuration carries pure radial loads with high rigidity while allowing the shaft to float axially — exactly what a machine tool spindle rear support demands when thermal growth runs the shaft forward. The double-row layout keeps radial deflection minimal under interrupted cuts, and the open design lets circulating oil flush heat away from the raceway. When we cross-check an OEM spindle drawing, we verify not just the base number but the cage material and precision suffix together, because a stamped steel cage at SP speeds won’t survive the same duty cycle.
Load, Speed, and the Thermal Tightrope
In a precision gearbox or spindle, radial loads dominate but the rotational speed pushes cage-centrifugal forces into the equation. The TN9 polyamide cage keeps mass low, cutting friction heat at elevated RPM while still distributing lubricant across both roller rows. Ambient temperature in a sealed gearbox housing can climb well above the shop floor reading, shrinking internal clearance. If the original design called for a specific clearance band, substituting standard CN where C3 was intended will bind the rollers as the rings expand [NEED_CITE: thermal expansion effects on bearing internal clearance ISO 281]. Oil-mist or jet lubrication is the norm here; grease packing in an open bearing at these speeds simply churns and overheats.
Decoding the Suffix Stack
The K suffix confirms a 1:12 tapered bore, meaning every micrometer of axial drive-up on the tapered seat directly reduces internal radial clearance — this is how preload is set without shims. The TN9 cage is glass-fiber-reinforced polyamide 6,6, chosen over machined brass for its lower inertia at high RPM and its ability to conform slightly to roller misalignment without galling. The NN double-row layout with flanges on the inner ring and none on the outer ring lets the outer ring float in the housing to absorb axial thermal growth while the inner ring locks tight on the tapered journal. The SP precision class sits above P5 and targets the running accuracy demanded by machine tool spindles, keeping bore-to-OD concentricity and raceway profile within tighter bands than industrial-grade tolerances.
The Price Tag Hidden Inside a Shortcut
A counterfeit NN 3022 with a soft inner ring (HRC well below the expected 58–62 range) will show correct dimensions on a micrometer but collapse under operational stress, spalling the raceway and sending debris through the gearbox oil circuit. A cross-reference error — installing a P0 clearance bearing where the OEM specified SP — produces excessive runout that migrates into the cutting tool, wrecking surface finish and tool life simultaneously. Per ISO 15243, these failure modes fall under material fatigue and mounting damage categories that trace directly back to procurement decisions, not operating conditions [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Unplanned downtime on a mining crusher or a mill spindle doesn’t cost a bearing price — it costs a production shift.
How Procurement Engineers Validate Our Supply Chain
We source SKF NN3022KTN9/SPVR521 units through authorized distributor channels rather than gray-market brokers, which means every shipment carries batch-level documentation back to the manufacturer’s production facilities. Our cross-reference database aligns clearance, cage material, and precision class simultaneously — not just the base number — so an interchange request for an NSK or FAG equivalent returns a match that actually fits the application. For import compliance, we supply country-of-origin paperwork and HS code guidance alongside the commercial invoice. Every unit ships with a Certificate of Conformity and, where requested, third-party dimensional verification before crating.
Documentation & Authenticity
- Supplier Certificate of Conformity referencing the SKF NN3022KTN9/SPVR521 batch number and authorized channel origin
- SKF Authenticate app QR scan pathway for verifying each unit against the manufacturer’s database
- Third-party runout and bore diameter inspection report confirming SP-class tolerances before export
- Country-of-origin certificate aligned with the destination country’s import regulation requirements
- Material traceability documentation linking cage material (TN9 polyamide) and ring steel to the production lot
Storage, Handling & Mounting
- Keep the SKF NN3022KTN9/SPVR521 in its original sealed wrapping until the moment of mounting; early exposure in a humid shop floor environment risks corrosion on the exposed open-type raceways
- Handle with lint-free gloves to prevent fingerprint acid etching on the precision-ground SP-class outer ring surface
- For tapered bore mounting, measure axial drive-up distance against the OEM-specified value rather than relying on locknut torque alone — residual clearance depends on it
- Flush the housing with clean circulating oil before introducing the bearing; the open design offers no built-in contamination barrier, so external sealing is the installer’s responsibility
- Store flat in a vibration-free area away from direct sunlight to protect the TN9 polyamide cage from UV degradation over long shelf periods
Request a Quotation With Full Technical Context
Send us the OEM equipment number or the application parameters — load, speed, operating temperature, and housing fit — so we can confirm the SKF NN3022KTN9/SPVR521 is the correct configuration and verify lead time against current authorized-channel stock. If you need a cross-reference validated against NSK, FAG, or NTN equivalents, include the original bearing photo and nameplate data for a full suffix-level comparison.
Frequently Asked Questions
Q: How can I confirm the authenticity of the SKF NN3022KTN9/SPVR521 before installation?
A: Scan the product packaging QR code through the SKF Authenticate app to verify batch registration against the manufacturer’s records. We also provide a Certificate of Conformity with traceable batch documentation linking back to the authorized distributor channel.
Q: What do the /SP and /VR521 suffixes indicate on this bearing?
A: /SP designates a super-precision tolerance class above standard P5, intended for machine tool spindle and precision gearbox applications. The /VR521 suffix relates to a specific variant feature that should be confirmed against the current SKF catalog at the time of order to ensure it matches the OEM requirement.
Q: Can you cross-reference the NN3022KTN9 to an NSK or FAG equivalent?
A: Yes — we provide a full interchange comparison that matches not just the base designation but also the tapered bore, polyamide cage material, and SP precision class. Share your OEM drawing or existing bearing nameplate for a verified equivalent.
Q: What clearance class should I specify when replacing this bearing in a spindle application?
A: The correct clearance depends on the original OEM specification, the shaft and housing fits, and the operating temperature gradient. We recommend sharing the equipment manual page or the original bearing nameplate data so we can confirm whether CN, C3, or another band was specified.
Q: What lubrication method is recommended for this open-type bearing at high spindle speeds?
A: Circulating oil or oil-mist systems are standard for open double-row cylindrical roller bearings at elevated RPM, as they provide both lubrication and heat extraction. Grease is generally unsuitable at these speeds due to churning losses and inadequate heat dissipation.
Verify Your Spindle Bearing Selection Before It Costs a Shift
Submit your OEM equipment number or operating parameters to our engineering team — we’ll return a confirmed match with full documentation, lead time, and cross-reference data within one business day.
