Description
Authorized Channel Procurement — Every SKF NN3036 K/W33VL124 we supply traces back through verified distributor networks with matching batch and lot records.
Technical Specifications
| Parameter | Value |
|---|---|

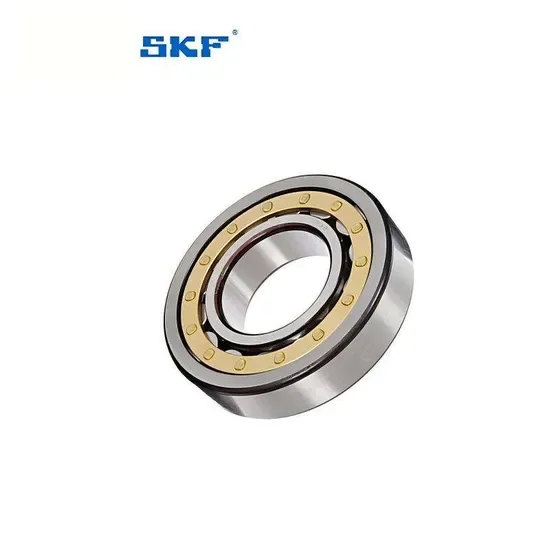

| Designation | SKF NN3036 K/W33VL124 |
| Bearing Type | Super Precision Double Row Cylindrical Roller Bearing |
| Bore Diameter (d) | 180 mm |
| Outside Diameter (D) | 280 mm |
| Width (B) | 74 mm |
| Number of Rows | Double Row |
| Bore Type | Tapered (1:12) |
| Seal or Shield Type | Open |
| Weight | 0.250 kg (source value — verify against shipment documentation) |
| Origin | China (source value — verify against shipment documentation) |
Note: The VL124 suffix designation requires confirmation against the manufacturer’s current catalog for precise coating or insulation specifications. We cross-check every suffix against application requirements before dispatch.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machine Tool Manufacturing | CNC grinding spindle rear support, precision lathe headstock |
| Rolling Mills | Work roll neck bearing positions requiring insulated barriers |
| Precision Industrial Machinery | High-rigidity rotary tables, indexing spindles |
| Heavy-Duty Gearboxes | High-speed pinion shaft support with electrical isolation needs |
What the Wrong Suffix Costs on a CNC Grinding Spindle
Missing a single insulation suffix can destroy a precision spindle within weeks of commissioning.
I’ve seen it happen at trade floors in Hanover — a spindle builder sources an NN3036 bearing matching only the base number, ignoring the VL124 insulation requirement. The standard bearing goes in, stray electrical currents from variable-frequency drives pass through the rollers, and fluting damage appears on the raceway almost immediately. The spindle gets scrapped, warranty claims pile up, and the end user loses weeks of production. Super precision cylindrical roller bearings live or die on their suffixes — the SKF NN3036 K/W33VL124 exists precisely because standard versions cannot survive electrically hostile spindle environments [NEED_CITE: electrical erosion damage in motor-driven spindle bearings].
How This Bearing Meets Spindle Rigidity Demands
The NN3036 designation signals a double row cylindrical roller configuration engineered for the extreme radial stiffness that precision spindles demand. With a 180 mm bore and 280 mm outside diameter, this bearing seats directly onto tapered shaft journals using the K-suffix 1:12 taper — no adapter sleeves, no axial play ambiguity. The W33 lubrication groove with three outer ring holes enables re-lubrication without disassembly, which matters when spindle housings run continuous shifts. We routinely help buyers match this SKF NN3036 K/W33VL124 against OEM equipment numbers, verifying that the insulation suffix aligns with the drive motor’s electrical environment rather than just matching dimensions.
Operating Conditions That Push Cylindrical Roller Bearings to Failure
Spindle environments combine high rotational speeds with thermal gradients that shift internal clearance dynamically. When a grinding spindle heats unevenly — hot at the cutting zone, cooler at the rear support — thermal expansion alters the interference fit and squeezes out whatever clearance margin exists. An open bearing design like this one transfers heat more readily through the housing but demands external sealing solutions matched to coolant splash and fine grinding swarf. The tapered bore adds another variable: mounting drive-up distance directly controls residual clearance, and over-tightening on a 180 mm shaft can collapse the internal geometry before the first revolution [NEED_CITE: tapered bore mounting drive-up and residual clearance relationship]. Lubrication intervals shorten further when ambient temperatures exceed standard ranges or when oil-mist systems deliver insufficient volume to the W33 groove.
Decoding the Specs That Actually Matter
The double row cylindrical roller arrangement delivers radial load capacity that single row designs cannot approach, while maintaining the low cross-section needed for compact spindle envelopes. The K-suffix tapered bore with 1:12 taper ratio allows direct mounting on matching shaft tapers — the installer controls interference fit through axial drive-up distance rather than relying on press-fit tolerances alone. This gives maintenance teams repeatability during spindle rebuilds. The W33 annular groove and three lubrication holes in the outer ring channel fresh grease or oil directly into the roller-raceway contact zone, addressing the starvation failures common in sealed-for-life alternatives. Super precision classification means the bearing reaches tight running accuracy standards required for spindle applications where runout translates directly into workpiece surface finish defects. The VL124 suffix addresses electrical isolation — a protection layer that prevents current passage through the rolling elements when VFD-induced shaft voltages seek ground through the bearing.
The Hidden Costs Behind Incorrect Bearing Selection
Correct specification paired with verified sourcing protects against failures that ISO 15243 categorizes as electrical erosion, mounting damage, and clearance-related fatigue. A bearing with the right base number but wrong insulation suffix fails the same way as a counterfeit — just more slowly and with more warranty paperwork. Unplanned spindle teardowns cascade into missed delivery schedules, scrapped workpieces, and replacement part expedite fees that dwarf the bearing’s purchase price. We’ve watched buyers save marginally on unverified stock only to face catastrophic spindle damage that voids the machine tool builder’s warranty entirely [NEED_CITE: bearing failure cost multipliers in precision manufacturing]. The SKF NN3036 K/W33VL124 represents an investment in suffix-level accuracy that prevents these downstream losses.
What Sets Our Sourcing Process Apart
Every SKF NN3036 K/W33VL124 we supply moves through authorized distributor channels with traceable documentation from factory gate to your receiving dock. Our cross-reference database covers SKF, NSK, FAG, TIMKEN, NTN, and KOYO — but we match on clearance class, cage material, precision grade, and insulation suffixes together, never on base numbers alone. When a maintenance engineer sends us an OEM spindle part number, we verify the full designation including the VL124 requirement rather than substituting a standard NN3036 and hoping for the best. Origin documentation travels with every shipment for customs clearance, and our authenticity verification process includes QR code pathways through brand official apps. Technical selection guidance extends beyond the catalog — we review application parameters like spindle speed, load spectrum, and electrical environment before confirming suitability.
Documentation & Authenticity
- Supplier Certificate of Conformity with batch and lot numbers traceable to the SKF NN3036 K/W33VL124 production run
- Country-of-origin documentation prepared for import compliance, particularly for buyers navigating customs requirements in regulated markets
- QR code verification pathway via the official SKF app confirming genuine product status before installation
- Dimensional inspection data available upon request, confirming bore taper geometry and outer ring diameter tolerances
- Material certification confirming bearing steel composition meets super precision cylindrical roller bearing requirements
Storage, Handling & Mounting
- Retain original sealed packaging until the moment of spindle assembly — premature exposure to shop-floor humidity risks surface corrosion on the precision-ground raceways of this open bearing
- The tapered K bore demands controlled axial drive-up during mounting; verify residual clearance with feeler gauges through the W33 lubrication holes after seating
- Handle with lint-free gloves to prevent fingerprint etching on the 180 mm bore surface, which can initiate corrosion under super precision operating conditions
- Store horizontally in original packaging to prevent brinelling of the double row cylindrical rollers under their own weight during extended warehouse periods
- Confirm the VL124 insulation coating integrity visually before press-fitting — any nick or scratch on the coated surface compromises electrical isolation performance
Ready to Verify Suitability for Your Application
Share your spindle operating parameters — speed range, radial and axial loads, ambient temperature, and whether VFD-driven motors are in the circuit — so we can confirm the SKF NN3036 K/W33VL124 matches your application or recommend the correct alternative. If you’re working from an OEM equipment number, send it over and we’ll cross-reference the full designation against our database. Need the documentation package reviewed before committing? Request the Certificate of Conformity, origin papers, and verification pathway details upfront.
Frequently Asked Questions
Q: What does the VL124 suffix indicate on this SKF bearing?
A: The VL124 suffix denotes a specialized coating or insulation treatment applied to protect against electrical current passage through the bearing. We verify the exact specification against the manufacturer’s current catalog for each order to ensure it matches your spindle’s electrical environment requirements.
Q: How does the W33 lubrication groove affect re-lubrication intervals?
A: The annular groove with three lubrication holes in the outer ring allows direct replenishment of lubricant into the roller contact zone without bearing disassembly. Actual re-lubrication intervals depend on spindle speed, operating temperature, and grease type — we can guide interval calculations based on your specific parameters.
Q: What mounting method works best for the K tapered bore?
A: The 1:12 tapered bore mounts directly onto a matching tapered shaft seat. Axial drive-up distance controls the interference fit and residual internal clearance. Hydraulic nuts or threaded locknuts with controlled tightening sequences deliver repeatable results on 180 mm bore spindle shafts.
Q: Can I substitute a different brand for this SKF NN3036 K/W33VL124?
A: Cross-brand substitution is possible but requires matching on more than the base designation. Clearance class, cage material, precision grade, and the VL124 insulation treatment must all align. We maintain cross-reference data across SKF, NSK, FAG, TIMKEN, NTN, and KOYO to verify complete equivalence.
Q: How do I verify this bearing is genuine before installation?
A: Each bearing carries a QR code verifiable through the official SKF mobile application. We also supply traceable batch documentation and can arrange third-party dimensional inspection for buyers requiring additional verification before committing the bearing to a precision spindle build.
