Description
Traceable Batch Documentation — Every UCF205 stainless steel pillow block bearing ships with a supplier Certificate of Conformity tied to its production lot, ensuring full traceability for food-grade and washdown facility audits.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | UCF205 (generic) |
| Bearing Type | Insert Bearing / Pillow Block Unit |
| Bore Diameter (d) | 25 mm |
| Housing Type | F — Square Flange |
| Locking Method | Set Screw |
| Raceway | Spherical Raceway |
| Number of Rows | Single |
| Feature | Corrosion Resistant, High Temperature, High Speed |
| Transport Package | Carton + Wooden Pallet / Export Standard Packing |
Note: "Stainless Steel" material designation is an unverified suffix and requires confirmation against the manufacturer catalog for exact grade specification (e.g., 440C, 304, or 316).
Application Suitability
| Industry | Typical Applications |
|---|---|
| Food Processing | Washdown conveyor rollers, bottling line guide shafts |
| Agricultural Machinery | Fertilizer spreader auger supports, irrigation pivot joints |
| Packaging Machinery | Form-fill-seal film guide rollers, carton flap actuators |
| Textile Machines | Dyeing vat agitator shafts, yarn tensioning idlers |
What Corrosion Really Does to a Standard Pillow Block on a Washdown Line
A chrome steel housing with basic seals will fail long before the bearing itself reaches its calculated L10 life.
I remember a call from a food processing plant near São Paulo where UCF205 pillow blocks seized in under three weeks. The buyer matched the bore and outside dimensions perfectly but never checked the housing material or seal specification. Daily caustic washdowns corroded the standard carbon steel housing, rust locked the inner ring on the shaft, and contaminated product forced a two-day line shutdown. In food, beverage, and chemical processing environments, a UCF205 stainless steel pillow block bearing is not a luxury specification — it is the minimum viable choice. Standard zinc-plated or painted housings degrade rapidly when exposed to steam cleaning, chlorine-based sanitizers, and acidic food residues. [NEED_CITE: bearing corrosion failure modes in washdown environments per ISO 15243]
Matching the UCF205 to Corrosive and High-Temperature Conveyor Duty
The UCF205 stainless steel pillow block bearing handles combined radial and light axial loads on shafts where misalignment is unavoidable. Its spherical raceway allows the outer ring to self-align inside the housing, compensating for frame deflection and mounting surface imperfections common on conveyor assemblies. We frequently cross-check this unit against OEM equipment numbers from packaging and food processing lines, verifying that the bolt hole spacing, set screw position, and sealing type all align before substitution — because matching the base number alone has shut down more lines than I can count.
Load, Speed, and Seal Challenges on Food and Packaging Lines
Conveyor and packaging shafts experience continuous radial loading with occasional axial thrust from belt tracking adjustments. Speeds are typically moderate, but the environment is what dictates bearing life. Steam cleaning raises housing temperatures rapidly, and thermal cycling breaks down standard grease while compromising rubber seal lips. In agricultural fertilizer spreading equipment, the challenge reverses — abrasive dust penetrates poorly sealed housings and scores raceways within weeks. The seal selection on a UCF205 stainless steel pillow block bearing must account for whether the primary contaminant is liquid ingress or particulate, because contact rubber seals resist water but generate friction heat, while metal shields handle dust with less thermal penalty. [NEED_CITE: seal friction and contamination trade-offs in pillow block units]

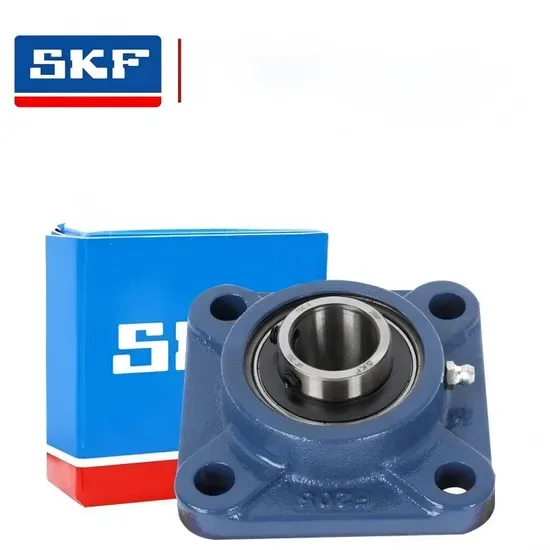

Inside the Flanged Housing and Set Screw Locking
The F-type square flange housing distributes bolt load across four mounting points, providing rigid support that resists moment loads on conveyor side frames. The set screw locking mechanism clamps the inner ring directly to the shaft without requiring adapter sleeves or locknuts — simplifying field replacement when maintenance windows are measured in minutes rather than hours. The spherical raceway between the outer ring and housing bore allows approximately a few degrees of angular misalignment, absorbing installation error and shaft deflection under load. Single-row deep groove internal geometry handles the radial-dominant load profile typical of conveyor rollers and guide shafts, while still accommodating light thrust from belt tension or chain drive forces. The stainless steel construction extends beyond the housing — when specified and verified, it covers the bearing rings and balls, preventing subsurface corrosion that causes spalling even when the exterior looks intact.
What an Unverified Material Claim Costs in the Field
Specifying a stainless steel pillow block without obtaining a material certificate confirming the exact grade is how procurement teams get caught. A 440C martensitic stainless bearing ring holds a raceway hardness suitable for rolling contact fatigue, while a 304 austenitic grade offers superior chemical resistance but lower hardness — making it appropriate for housings but problematic for rolling elements under load. If a supplier ships a UCF205 unit labeled stainless without traceable documentation, and the inner ring turns out to be chrome steel with only a zinc-flake coating, the result is premature inner ring cracking once that coating wears through. These failures are classified under surface-originated fatigue per ISO 15243, and they void equipment warranties when root cause analysis traces the contamination or seizure back to a non-conforming component. [NEED_CITE: material grade impact on rolling contact fatigue life]
How We Verify What Others Only Label
Our sourcing runs through authorized distributor channels, meaning the UCF205 stainless steel pillow block bearing you receive carries batch-level traceability back to the manufacturer’s production facilities. We do not simply match base numbers across SKF, NSK, FAG, TIMKEN, NTN, and KOYO catalogs — we verify bolt hole pitch circle diameter, set screw angular position, and seal type before confirming interchange equivalence. When your application involves washdown exposure, we confirm the stainless grade on both housing and insert, not just the external coating. Every shipment includes dimensional inspection data and origin documentation so your import paperwork and incoming quality checks proceed without delays.
Documentation & Authenticity
- Supplier Certificate of Conformity referencing the specific UCF205 batch and lot number for audit traceability
- Material certificate confirming stainless steel grade for housing and insert components, distinguishing 440C rolling elements from 304/316 housing construction
- Dimensional inspection report verifying bore tolerance, bolt hole spacing, and flange squareness against ISO specifications
- Country-of-origin documentation supporting import customs clearance and buyer-side vendor qualification
- QR code verification pathway via brand official apps for authenticity confirmation at receiving inspection
Storage, Handling & Mounting
- Retain the factory-sealed packaging until the moment of installation; early exposure to humid washdown-area ambient air begins surface oxidation even on stainless components
- Use clean, lint-free gloves when handling the UCF205 insert bearing to prevent chloride transfer from skin contact, which initiates pitting on stainless raceways
- Torque the set screws to the manufacturer’s specified value using a calibrated driver — overtightening distorts the inner ring and creates an interference point that accelerates fatigue on the 25 mm shaft
- Align the square flange housing to the mounting surface before tightening all four bolts in a diagonal sequence, allowing the spherical raceway to self-center rather than binding the outer ring
- For units operating in food-grade washdown zones, confirm that the grease fill is NSF H1 registered before the bearing enters production contact areas
Confirm Your Application Parameters Before Ordering
Share your operating environment details — washdown frequency, cleaning chemical concentration, shaft speed, and ambient temperature range — so we can verify whether the UCF205 stainless steel pillow block bearing material grade and seal configuration match your actual duty cycle. If you are replacing an existing OEM unit, provide the equipment nameplate number and we will cross-reference the bolt pattern, seal type, and shaft locking method against our interchange database.
Frequently Asked Questions
Q: What must I check when cross-referencing a UCF205 across different bearing brands?
A: Beyond the 25 mm bore and outer dimensions, verify the bolt hole pitch circle diameter, set screw angular position on the inner ring, and seal type — these vary between manufacturers even when the base designation is identical, and mismatches cause housing interference or seal failure.
Q: When should I specify stainless steel over chrome steel for a UCF205 pillow block?
A: Any environment involving liquid washdown, steam cleaning, high humidity above 70 percent, or exposure to corrosive chemicals requires stainless construction. Standard chrome steel with zinc plating degrades rapidly under caustic sanitizers used in food and beverage processing.
Q: Which seal type suits wet versus dusty conditions on a flanged pillow block?
A: Rubber contact seals provide superior water and liquid exclusion for washdown applications, while metal shields offer lower friction and better protection against fine particulate in dry agricultural or textile environments.
Q: How do I prevent inner ring spin on the shaft with set screw locking?
A: Ensure the shaft surface finish and diameter tolerance are within specification, torque the set screws evenly to the recommended value, and avoid using undersized or worn shafts that reduce clamping force on the 25 mm bore.
Secure Your UCF205 Stainless Steel Pillow Block Bearing With Full Traceability
Submit your application parameters or OEM equipment number for cross-reference verification and a quotation with confirmed lead time and documentation package.
