Description

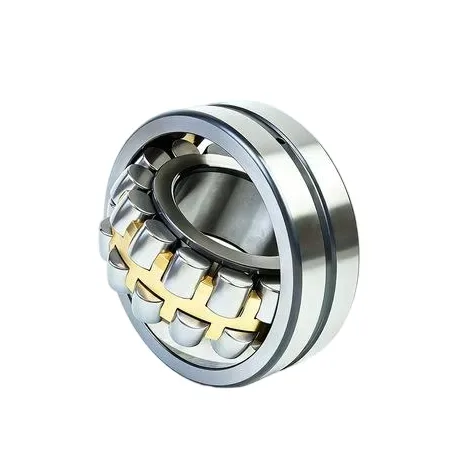

Authorized Channel Traceability — Every 22311E spherical roller bearing ships with batch-level documentation linking back to the manufacturer’s production facilities.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 22311E Spherical Roller Bearing |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 50mm |
| Outside Diameter (D) | 110mm |
| Width (B) | 40mm |
| Internal Design | Reinforced (E suffix) |
| Cage Material | Window-type pressed steel cage |
| Bore Type | Cylindrical |
| Number of Rows | Two |
| Seal or Shield Type | Open |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and Crushing | Crusher eccentric shaft / jaw plate drive assemblies |
| Steel and Metallurgy | Continuous caster guide rollers / rolling mill stands |
| Industrial Machinery | Vibrating screen side plate exciters |
| Material Handling | Bucket elevator head shaft bearings |
What the E Suffix Actually Prevents on Heavy-Duty Shafts
A reinforced internal geometry distributes load across a larger roller contact zone, reducing edge stress under combined radial and moment loading.
When procurement teams replace a 22311E spherical roller bearing with a standard-design unit that shares the same base number, the machine may run for weeks before symptoms surface. The rollers in a non-reinforced design concentrate stress at their ends under heavy radial loads. In vibrating screens operating above 1000 RPM with constant centrifugal excitation, this edge loading accelerates raceway spalling [NEED_CITE: spherical roller bearing internal design and load distribution per ISO 281]. On crusher eccentric shafts where shock loads occur with every compression stroke, the absence of the E-profile geometry can trigger premature cage fracture — and a four-day line shutdown that dwarfs any unit price savings.
Matching the 22311E Spherical Roller Bearing for Heavy Machinery to Shock and Vibration Loads
Vibrating screens and crushers impose alternating radial and axial forces with significant impact components. The 22311E spherical roller bearing for heavy machinery handles these through its self-aligning outer ring and reinforced roller profile, absorbing misalignment up to a few degrees without edge-loading the raceway. When we matched a West African mining operation’s crusher main shaft requirements, the cross-reference review confirmed that competing brands’ equivalent models needed identical E-type internal geometry — substituting a plain 22311 without the reinforced suffix would have shortened L10 life noticeably under that duty cycle.
Operating Environment and Performance Demands
Crusher eccentric shafts see cyclic shock loading at moderate speeds with ambient dust and occasional water ingress from washdown. The open design of the 22311E relies on the equipment builder’s housing seals to keep contaminants out — a worn labyrinth seal will let slurry reach the rollers within days [NEED_CITE: bearing contamination impact on fatigue life per ISO 281]. Temperature swings between cold startup and sustained operation drive thermal expansion that must be accommodated by the correct internal clearance. Mounting typically involves induction heating of the inner ring to achieve proper interference fit on solid shafts, and the cylindrical bore requires precise temperature control to avoid annealing the ring.
Inside the E-Suffix Engineering
The E suffix on the 22311E indicates a reinforced internal design where roller count and roller diameter have been optimized for higher load capacity. More rollers sharing the same envelope means each carries a smaller portion of the total radial load, pushing the fatigue life calculation in a favorable direction under ISO 281. The window-type pressed steel cage keeps roller spacing consistent at high speeds and resists the vibration-induced cage wear that plagues polymer cages in screen applications. The open configuration eliminates seal friction, which matters when shaft speeds approach the limiting threshold and any additional heat source risks thermal runaway. Two rows of barrel-shaped rollers allow the outer ring to pivot on its spherical raceway, compensating for shaft deflection or housing misalignment without transferring bending moments to the rollers.
The True Cost of Ignoring the E Suffix on a 22311
Correct selection backed by a verifiable source chain keeps a production line running between planned maintenance intervals. Wrong clearance, a missing E suffix, or a counterfeit inner ring with substandard hardness each create failure modes classified under ISO 15243 as fatigue, wear, or fracture [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The hidden cost is never the bearing itself — it is the unplanned downtime, the collateral damage to shafts and housings, and the voided warranty on the equipment. A crusher down for four days in a remote mine site costs orders of magnitude more than the price difference between a verified unit and a shortcut procurement.
How Maintenance Engineers Verify Our Supply Chain
Every 22311E we ship traces back to authorized distributor invoices with lot numbers you can cross-check. Our cross-reference database matches not just the base designation but the E suffix, clearance class, and cage type across six major brands — so a substitution is engineered, not guessed. When an inquiry arrives with OEM equipment numbers, we pull the original specification and confirm whether C3 clearance was specified for thermal growth or whether standard CN suffices for ambient-temperature duty. Material certificates and dimensional inspection reports accompany each shipment, and country-of-origin documentation is prepared to smooth customs clearance at destination.
Documentation & Authenticity
- Supplier Certificate of Conformity with batch and lot traceability specific to your 22311E shipment
- Material certificate confirming bearing steel grade and heat treatment compliance
- Third-party dimensional inspection report verifying bore, OD, and width within tolerance before dispatch
- Country-of-origin documentation prepared for import compliance at destination port
- QR code verification pathway through the brand’s official authentication app
Storage, Handling & Mounting
- Retain the 22311E in factory-sealed packaging until the day of mounting — early exposure in a humid workshop invites corrosion on the open bearing surfaces
- Mount the cylindrical-bore inner ring using controlled induction heating, monitoring temperature to avoid softening the hardened raceway
- Check the housing seal condition before fitting; the open 22311E design places contamination protection entirely on the equipment’s external seals
- Store flat in a vibration-free area — vibrating screen replacement bearings stacked on edge risk brinelling from adjacent equipment vibration through the warehouse floor
- Apply the manufacturer-recommended grease grade and fill quantity after mounting, as the open bearing ships without pre-lubrication
Requesting a Quotation with Confidence
Share your operating parameters — load magnitude, shaft speed, ambient temperature range, and mounting envelope — so our technical team can verify the 22311E selection and confirm clearance requirements. If you are replacing an existing bearing, provide the OEM equipment number or the full designation printed on the original unit so we can cross-reference against our database. Ask for the documentation package including country-of-origin and batch traceability before committing to a bulk order. Lead times vary by brand availability; requesting early confirmation ensures your maintenance window stays on schedule.
Frequently Asked Questions
Q: Why does matching only the base number 22311 without the E suffix create a field risk?
A: The E suffix specifies a reinforced internal design with optimized roller count and geometry. A plain 22311 may share the same 50x110x40mm envelope but carries lower dynamic load capacity, which shortens calculated L10 life under heavy or shock loading conditions typical in crushers and vibrating screens.
Q: How do I verify interchange compatibility across different brands for this bearing?
A: Genuine interchange requires alignment on three elements: the E-type reinforced internal design, the clearance class (CN, C3, or C4), and the cage type. Our cross-reference database maps these parameters across six major brands to ensure functional equivalence, not just dimensional fit.
Q: What authentication methods are available for the 22311E before installation?
A: Brand official apps offer QR code scanning to confirm the unit’s origin and production batch. We also supply material certificates and dimensional inspection reports, and our documentation chain traces each bearing back to authorized distributor records.
Q: What does the E suffix mean on a spherical roller bearing?
A: The E suffix denotes a reinforced internal design where roller dimensions and count are optimized for higher load-carrying capacity compared to earlier design generations. This matters most in applications with sustained heavy radial loads or frequent shock impacts.
Q: What are typical lead times and order considerations for the 22311E?
A: Availability depends on the brand and clearance variant requested. High-demand models like the 22311E are often stocked across multiple brand channels, but C3 or special clearance variants may require allocation lead time. Confirming your full specification early prevents delays against your maintenance schedule.
Confirm Your 22311E Specification and Documentation Requirements
Send us your application parameters or OEM equipment number, and our technical team will return a cross-reference match with full documentation details.
