Description
Authorized Channel Procurement — Batch-level traceability documentation accompanies every shipment, linking the GE125-LO-E back through verified INA distributor pathways to the original production lot.
Technical Specifications
| Parameter | Value |
|---|---|

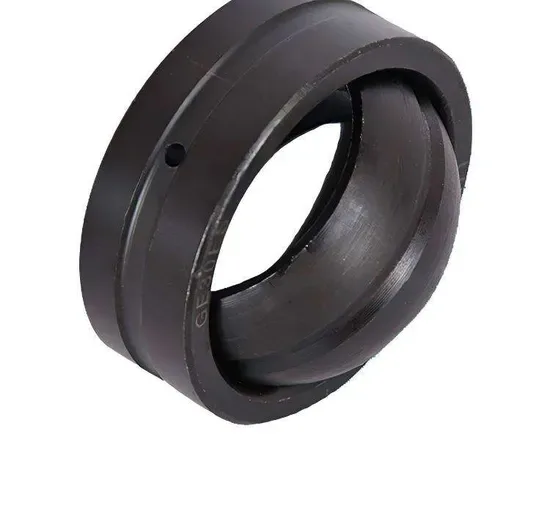

| Designation | INA GE125-LO-E |
| Bearing Type | Spherical Plain Bearing |
| Bore Diameter (d) | 125 mm |
| Outside Diameter (D) | 180 mm |
| Ball Diameter | 160 mm |
| Weight | 8.100 kg |
| Material | Bearing Steel (inner ring, outer ring, and ball) |
| Precision Class | P0 |
| Origin | China |
| Rod End | Rod End |
Suffixes LO and E are present in the designation but require confirmation against the INA catalog for exact design variant meaning (e.g., lubrication groove configuration, sealing arrangement, or material treatment).
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and Crushing | Crusher hydraulic cylinder pivot points, jaw crusher toggle seat assemblies |
| Steel and Metallurgy | Continuous caster guide roller pivot joints, ladle crane linkage bearings |
| Material Handling | Stackers and reclaimers boom hinge points, heavy-duty conveyor tensioner arms |
| Agricultural Machinery | Combine harvester header linkage joints, tractor-mounted implement pivots |
What Missing Lubrication Grooves Cost on a 125mm Spherical Plain Bearing
A matched base designation without the correct internal lubrication pathway turns a steel-on-steel joint into a dry-grind failure point within the first few hundred operating hours.
I once shipped a batch of 125mm spherical plain bearings to a copper mine in West Africa. The designation on the label matched their OEM spec perfectly. What the supplier had missed was the lubrication groove and hole configuration — the inner and outer rings were plain, with no oil pathways. Within weeks, the crusher hydraulic cylinders were scoring their mating surfaces. Metal-on-metal without relubrication in a dusty, high-shock environment does not degrade gracefully; it fails catastrophically. That single oversight cost the site unplanned downtime, replacement logistics across two continents, and a hydraulic rebuild they had not budgeted for. [NEED_CITE: ISO 15243 bearing failure classification for insufficient lubrication modes]
The INA GE125-LO-E spherical plain bearing addresses this directly through its lubrication feature design, ensuring that field relubrication is not an afterthought but a built-in maintenance pathway. When procurement teams substitute on base number alone — GE125 — without locking down the suffix-driven features, they expose their equipment to exactly this class of silent, expensive failure.
How This Bearing Fits Heavy-Duty Oscillating Joints
Mining crushers and steel mill linkages do not rotate continuously. They oscillate under heavy radial loads, often in contaminated atmospheres where dust and moisture invade every unsealed gap. The INA GE125-LO-E spherical plain bearing is engineered for precisely this duty profile: slow oscillation or static alignment adjustment under radial forces that would destroy a standard rolling element bearing. The 125 mm bore and 180 mm outside diameter fit the standard mounting envelopes found in heavy machinery rod end assemblies, while the bearing steel construction across all contact surfaces provides the load-carrying density that polymer-lined alternatives cannot match in shock-loading scenarios. When a maintenance engineer in our network needed to replace an OEM-specified spherical plain bearing for a mill guide roller pivot, we cross-checked not only the envelope dimensions but also the lubrication hole positions and groove geometry to ensure the replacement matched the relubrication interval already programmed into their PM schedule.
Operating Environment and Performance Demands
Heavy-duty oscillating joints in mining and metallurgy face a punishing combination of conditions. Radial loads are dominant, often with shock components from impact crushing or thermal cycling in caster segments. Speeds are negligible — typically a few degrees of oscillation per cycle — which means hydrodynamic lubrication films cannot form, placing the full burden on boundary lubrication and surface treatments. Temperatures vary from ambient to elevated levels near furnace zones, making thermal expansion of the housing a factor in fit selection. Relubrication intervals must be short enough to purge contaminants from the sliding contact zone, which requires accessible lubrication holes and grooves. Field maintenance crews need to re-grease without disassembly, so the bearing must support external lubricant feed paths. Installation typically involves pressing the outer ring into a housing bore with controlled interference, making dimensional accuracy of the OD and outer ring roundness critical to avoid binding. [NEED_CITE: spherical plain bearing load and oscillation duty classification per ISO 12240]
Decoding the Core Specifications
The bearing steel construction across the inner ring, outer ring, and ball segment is the defining material choice for steel-on-steel spherical plain bearings. Unlike bearings with PTFE or bronze-lined contact surfaces, all-steel variants like this one depend on regular lubrication to maintain a protective film between sliding surfaces. The trade-off is higher load capacity and resistance to shock loading — steel-on-steel handles impact peaks that would deform or delaminate a softer lining. The P0 precision class aligns with standard ISO tolerances for general industrial applications where sub-micron running accuracy is not required but consistent dimensional fit is essential for proper housing interference and shaft clearance. At 8.100 kg, the mass reflects the solid bearing steel cross-section needed to carry the heavy radial loads typical of 125 mm bore pivot joints in crushers and linkage arms. The 160 mm ball diameter defines the spherical contact geometry and determines the angular misalignment range available during installation and operation.
The Hidden Cost of a Designation-Only Substitution
When a purchasing manager sources a GE125 spherical plain bearing based solely on the base number, without verifying the lubrication features, material treatment, and dimensional tolerances locked in by the suffix, they accept a risk that does not appear on any invoice. The wrong lubrication groove configuration means field crews cannot relubricate effectively, accelerating wear under contaminated conditions. A soft inner ring from an unverified source will score prematurely, generating metallic debris that migrates into hydraulic fluid or adjacent gearboxes. Counterfeit markings cloned from genuine labels pass casual inspection but mask substandard heat treatment that leads to spalling under shock loads. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] These failures manifest as unplanned downtime, emergency air-freight replacements, and in the worst cases, secondary damage to the equipment the bearing was meant to protect. The INA GE125-LO-E spherical plain bearing, sourced with full documentation, eliminates this class of risk.
Why Procurement Engineers Source This Bearing Through Us
Every INA GE125-LO-E we supply comes with batch-level traceability back through authorized distributor channels, so the buyer receives not just a bearing but a documentation chain that satisfies import auditors and quality managers alike. Our cross-reference database does not stop at matching bore and OD; we align lubrication features, surface treatments, and precision class so that a substitution from another brand in our coverage range is a true functional equivalent. When a distributor in Central Asia needed to verify origin documentation for customs clearance, we provided country-of-origin certificates alongside the commercial invoice before the container was sealed. Authenticity verification is supported through the official QR code pathway on each unit, giving maintenance engineers a field-checkable confirmation that does not rely on supplier claims alone. Pre-shipment dimensional inspection confirms bore, OD, and width against tolerance before the bearing leaves our facility, catching deviations that would otherwise surface only during press-fit installation on site.
Documentation & Authenticity
- Supplier Certificate of Conformity (COC) tied to the specific production batch of the INA GE125-LO-E, linking the serial lot to the manufacturing facility and date code
- Third-party dimensional inspection report verifying bore diameter at 125 mm, OD at 180 mm, and width against P0 tolerance limits before dispatch
- Country-of-origin documentation prepared for import clearance, including HS code classification for spherical plain bearings entering Middle Eastern, African, or Latin American markets
- QR code verification pathway compatible with the official brand app, allowing on-site maintenance teams to confirm authenticity without returning the bearing to a lab
- Material certificate confirming bearing steel grade for inner ring, outer ring, and ball segment, supporting quality audits at the buyer’s receiving inspection
Storage, Handling & Mounting
- Keep the GE125-LO-E in its original sealed packaging until the day of installation; the 8.100 kg mass means this bearing should be stored horizontally on a flat shelf to prevent brinelling of the spherical contact surface from its own weight resting on a single point
- Inspect the lubrication holes and grooves for any protective wax or preservative blockage before mounting — these pathways must be clear for the first field relubrication cycle
- Use induction heating for the outer ring press-fit into the housing bore rather than mechanical force alone; the 180 mm OD requires controlled thermal expansion to achieve proper interference without galling the bearing steel surface
- After installation*h grease appears at the spherical contact gap, confirming that the internal groove network is fully charged before the equipment enters service
- In dusty mining environments, ensure that external seals or bellows are fitted over the rod end assembly to protect the exposed spherical contact surface from particulate ingress between relubrication intervals
Request a Technical Quotation
Share your application parameters — oscillation angle, radial load magnitude, operating temperature range, and relubrication interval — so we can confirm the INA GE125-LO-E spherical plain bearing matches your duty cycle or recommend a cross-reference equivalent with identical lubrication and dimensional features. Provide your OEM equipment number if available, and we will verify the suffix-driven specifications against the original manufacturer’s bill of materials. Contact us to request the full documentation package including origin certificates and batch traceability before placing your order.
Frequently Asked Questions
Q: How can I verify the authenticity of an INA spherical plain bearing after delivery?
A: Each genuine INA bearing carries a QR code or batch marking that can be scanned through the official brand application. Cross-check the scanned result against the Certificate of Conformity and the lot number printed on the packaging. If the QR code redirects to an unofficial domain or the batch number does not resolve in the system, flag the unit before installation.
Q: What should I check when cross-referencing a GE125 spherical plain bearing from another brand?
A: Match the bore diameter, outside diameter, and ball diameter first, then verify the lubrication groove and hole configuration, the material of the sliding contact surfaces, and the precision class. A base-number match alone does not guarantee that relubrication pathways or load capacity are equivalent.
Q: What do the LO and E suffixes indicate on this bearing?
A: These suffixes denote specific design variants that may relate to lubrication groove configuration, surface treatment, or sealing arrangement. The exact meaning should be confirmed against the current INA catalog or by requesting clarification from the supplier before the order is finalized.
Q: What relubrication interval is recommended for steel-on-steel spherical plain bearings in mining service?
A: Relubrication frequency depends on oscillation speed, load magnitude, and contamination level. In heavily contaminated mining environments with shock loading, intervals are typically shorter than in clean, low-load applications. Consult the equipment OEM maintenance manual or request application-specific guidance based on your operating parameters.
Q: Can you provide import documentation for customs clearance in my country?
A: Yes. We prepare country-of-origin certificates, HS code classifications, and commercial invoices formatted to meet import requirements in Middle Eastern, African, Latin American, and Central Asian markets. Specify your destination port and any special documentation requirements at the inquiry stage.
Secure Your INA GE125-LO-E With Full Traceability
Send us your application parameters or OEM equipment number to confirm fit, lubrication features, and documentation availability before your next container booking.
