Description
Authorized-Channel Traceability — Batch-level documentation and QR verification via SKF official tools confirm the provenance of every NN3018 KTN9/VQ554 unit before it leaves our warehouse.
Technical Specifications
| Parameter | Value |
|---|---|

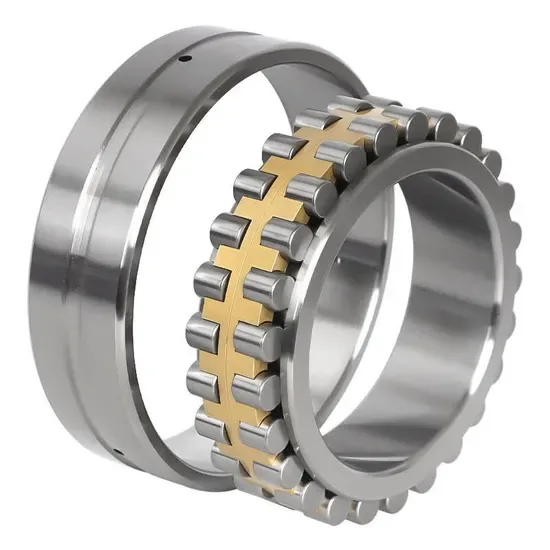

| Designation | SKF NN3018 KTN9/VQ554 |
| Bearing Type | Double Row Cylindrical Roller Bearing |
| Bore Diameter (d) | 90 mm |
| Outside Diameter (D) | 140 mm |
| Width (B) | 37 mm |
| Number of Rows | Double Row |
| Bore Type | Tapered Bore (1:12 Taper) |
| Cage Material | Polyamide 66 (Glass Fiber Reinforced) |
| Seal or Shield Type | Open |
| Precision Class | SP, UP |
| Arrangement | NN Design (Inner Ring with Integral Flanges) |
| Origin | China |
| Note: /VQ554 suffix indicates a variant feature requiring manufacturer catalog confirmation. |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machine Tool Manufacturing | High-speed spindle rear support, precision rotary tables |
| Industrial Gearbox Production | Continuous-duty reducer intermediate shafts, high-load transfer cases |
| Steel and Metallurgy | Rolling mill guide rollers, continuous caster segment rolls |
| Material Handling | Heavy-duty conveyor drive pulleys, stacker/reclaimer pivot points |
What a Polyamide Cage Mismatch Costs on a High-Speed Spindle
Matching the base designation without verifying the TN9 cage and K bore profile often leads to thermal seizure in continuous-duty applications.
I recall a teardown of a precision gearbox where the maintenance team was baffled by repeated failures of a double row cylindrical roller bearing. The replacement part had the correct 90 mm bore and 140 mm outer diameter, but it featured a generic brass cage and standard clearance instead of the specified glass-fiber reinforced polyamide design. [NEED_CITE: impact of cage material selection on high-speed bearing thermal equilibrium] The supplier had cross-referenced only the core numbers, ignoring the suffix requirements. That single oversight caused unplanned downtime and damaged the shaft seat. This SKF NN3018 KTN9/VQ554 double row cylindrical roller bearing is engineered for applications where high rotational speeds generate significant internal heat, requiring a lightweight cage to minimize friction and a specific internal geometry to maintain stability under radial loads.
Aligning Suffix Profiles with Precision Drive Requirements
The NN30 series is the standard for radial stiffness in precision rotating assemblies. This SKF NN3018 KTN9/VQ554 double row cylindrical roller bearing integrates a tapered bore (K suffix) which allows for precise adjustment of internal radial clearance during mounting on a tapered shaft seat. We frequently assist procurement engineers who are sourcing replacements for OEM equipment; in these cases, verifying the TN9 cage specification is critical. While many suppliers offer the base NN 3018, the polyamide cage is essential for the high-speed envelopes typical of modern machine tool spindles and precision reducers, a detail we always verify before confirming a cross-reference or substitution.
Managing Thermal Expansion in Continuous Operations
When a gearbox runs at high speeds, internal temperatures rise significantly. The TN9 injection-molded polyamide 6.6 cage reduces weight and inertia, allowing the bearing to operate at higher limiting speeds than metal-caged equivalents. The SP or UP precision class ensures tighter dimensional tolerances, which is necessary to control vibration and maintain running accuracy. [NEED_CITE: relationship between precision class and spindle vibration levels] If the application involves high radial loads combined with thermal growth, the internal clearance must be carefully managed. Using a standard clearance bearing in an application designed for a specialized clearance (as potentially indicated by the /VQ554 suffix) can lead to preload loss or excessive operating temperatures.
Inside the Engineering: Bore Profile and Cage Material
The tapered bore (1:12 taper) is a defining feature of this model. It enables the inner ring to be driven onto a tapered shaft or adapter sleeve, expanding the ring slightly to dial in the exact radial clearance required for the operating temperature. The TN9 cage is glass-fiber reinforced to withstand the centrifugal forces at high RPMs while maintaining lubricant flow through the roller set. The NN design, with two rows of rollers and integral flanges on the inner ring, provides exceptional radial load capacity and rigidity, making it far superior to single-row designs for supporting heavy radial loads in rigid spindles.
The Hidden Costs of Ignoring Suffix Variants
Substituting a standard P0 or P6 precision bearing for an SP/UP grade may seem like a cost-saving measure, but it often results in catastrophic damage to the mating shaft and housing. According to ISO 15243 failure mode classification, improper clearance and precision mismatches are primary drivers of premature smearing and thermal cracking. [NEED_CITE: ISO 15243 bearing failure modes] If the cage material is not verified, a brass cage might fail at high speeds where a polyamide cage would thrive, or vice-versa if chemical compatibility is ignored. These errors lead to warranty voidance and expensive secondary repairs that far exceed the initial savings on the bearing procurement.
Sourcing Traceability and Verification Support
We source genuine SKF bearings through authorized distributor channels, ensuring every unit is backed by a Certificate of Conformity (COC) with batch traceability. Our process includes verifying the country of origin for import documentation and providing guidance on QR code verification via official manufacturer apps. For buyers substituting between brands, we provide a comprehensive cross-reference that aligns not just the base number, but the clearance, cage material, and precision class. [NEED_CITE: risks of counterfeit bearings in industrial supply chains] We also offer pre-shipment dimensional inspection to confirm the SP/UP running accuracy before the product is dispatched, giving maintenance managers confidence that the replacement will perform as the OEM intended.
Documentation & Authenticity
- Supplier Certificate of Conformity (COC): Includes batch and lot traceability linking the specific NN3018 unit to its production run.
- QR Code Verification Pathway: Guidance on using SKF official apps to scan and confirm the authenticity of the product markings and packaging.
- Country-of-Origin Documentation: Essential paperwork provided for customs clearance and import compliance, confirming the manufacturing origin.
- Pre-Shipment Dimensional Verification: Optional third-party or in-house inspection reports confirming bore taper and running accuracy meet SP/UP standards.
- Material Certification: Documentation confirming the bearing steel and polyamide cage materials meet manufacturer specifications.
Storage, Handling & Mounting
- Humidity Control for Open Bearings: Keep the NN3018 KTN9/VQ554 in its original sealed packaging until mounting to prevent corrosion on the exposed raceways and rollers.
- Tapered Bore Mounting Protocol: Use hydraulic nuts or locknuts with precision spanners to achieve the correct axial drive-up on the 1:12 tapered seat; measure the internal clearance reduction during mounting.
- Cleanliness Standards: Wear lint-free gloves during handling to prevent debris from contaminating the open bearing, which can cause indentation failures in high-precision SP applications.
- Polyamide Cage Temperature Limits: Ensure any induction heating used for the inner ring does not exceed the thermal limits of the TN9 cage (typically 120°C maximum for short periods).
- Shaft Seat Verification: Inspect the tapered shaft seat for out-of-roundness or taper errors before mounting, as these defects will distort the thin-walled inner ring and compromise running accuracy.
Ready to Verify Your Spindle Replacement?
Send us your OEM equipment number or application parameters (load, speed, and operating temperature) for a technical selection review. We can confirm the availability of the specific /VQ554 variant and provide a complete documentation package for your import and maintenance records.
Frequently Asked Questions
Q: How do I verify the authenticity of the SKF NN3018 KTN9/VQ554?
A: Authenticity can be verified by scanning the QR code on the packaging using the official SKF app, which links to the manufacturer’s database. We also provide a Certificate of Conformity with batch traceability for every shipment.
Q: What does the TN9 suffix mean for this double row cylindrical roller bearing?
A: TN9 indicates an injection-molded, glass-fiber reinforced polyamide 6,6 cage. This cage is lightweight and designed for high-speed operation, reducing friction and heat generation compared to machined brass cages.
Q: Can I substitute this SKF model with an NSK or FAG equivalent?
A: Yes, but the substitution must match the tapered bore (K), the polyamide cage (TN9 equivalent), and the SP/UP precision class. We provide a cross-reference chart that aligns these critical suffixes to ensure the replacement performs correctly in your spindle or gearbox.
Q: How is the tapered bore (K suffix) mounted?
A: The 1:12 tapered bore allows the bearing to be mounted on a tapered shaft seat or an adapter sleeve. The inner ring is driven up the taper to expand it slightly, setting the required radial clearance for the application.
Q: What is the significance of the SP precision class?
A: SP (Super Precision) class provides tighter dimensional and running accuracy than standard grades, which is essential for machine tool spindles and high-precision gearboxes where vibration and thermal growth must be minimized.
