Description
Authorized Channel Sourcing — Every 21311E spherical roller bearing we supply ships with traceable batch documentation linked back to the manufacturer’s authorized distribution network.
Technical Specifications
| Parameter | Value |
|---|---|

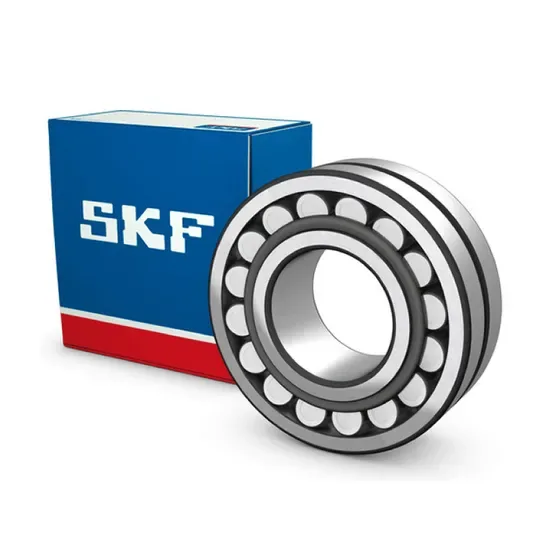

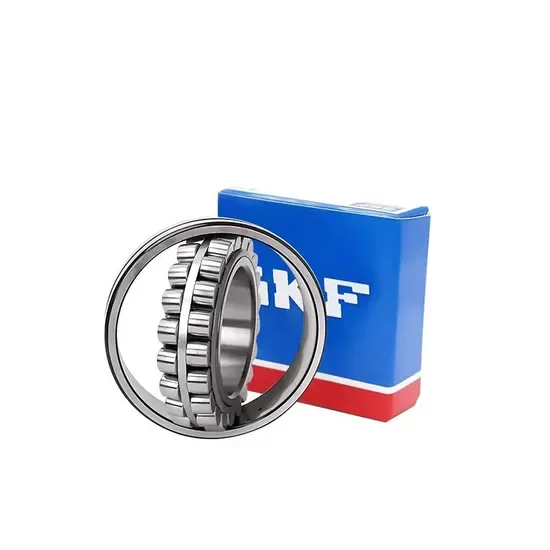

| Designation | 21311E Spherical Roller Bearing |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 55 mm |
| Outside Diameter (D) | 120 mm |
| Width (B) | 29 mm |
| Internal Design | E — reinforced internal geometry for higher load capacity |
| Number of Rows | Two |
| Bore Type | Cylindrical |
Note: Suffixes beyond the confirmed E designation should be verified against the specific brand catalog before final order placement.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and Crushing | Vibrating screen exciter shafts, jaw crusher toggle seats |
| Construction Machinery | Concrete batching plant drum drives, excavator swing gearboxes |
| Steel and Metallurgy | Continuous caster guide rollers, rolling mill work roll necks |
| Wind Energy | Yaw drive gearboxes, pitch mechanism support positions |
Why a Soft Inner Ring Destroys a Vibrating Screen Before the First Shift Ends
Counterfeit spherical rollers with cloned markings pass visual checks but fail under the first hour of cyclic impact loading.
I once watched a shipment clear customs in Valparaíso only to arrive at a copper mine with stamped steel cages where machined brass was specified. Three vibrating screens seized within weeks. The inner rings showed soft spots that accelerated raceway spalling, and by the time the maintenance crew traced it back, the supplier had already vanished [NEED_CITE: premature bearing failure modes from material nonconformity per ISO 15243]. This is the reality procurement engineers face when sourcing the 21311E spherical roller bearing for heavy-impact equipment — visual inspection alone cannot reveal thermal binding risks buried in mismatched clearance or cage material.
How the 21311E Meets the Demands of Shaking and Crushing Equipment
The 21311E spherical roller bearing is designed around a reinforced internal geometry that increases roller count and contact length, directly raising dynamic load capacity. On a vibrating screen operating at high frequency and moderate speed, this translates into extended L10 life under continuous radial shock. The self-aligning outer ring accommodates shaft deflection common in mining drilling rigs and crusher eccentric assemblies, preventing edge-loading that would otherwise accelerate fatigue. When we cross-reference this position across brands, we align not just the base number but the clearance class and cage type — because a C3 with a brass cage performs fundamentally differently from a CN with stamped steel under the same vibratory load.
Shock Loads, Thermal Swings, and the Clearance Decision
Equipment like jaw crushers and vibrating screens subjects bearings to heavy radial impact with frequent directional reversals. Shaft temperatures can climb well above ambient during continuous operation, meaning the internal clearance must account for differential thermal expansion between the inner ring and housing [NEED_CITE: thermal expansion effects on bearing internal clearance]. If the specified clearance is too tight, the bearing binds as it heats up; too loose, and the rollers skid rather than roll, generating cage wear. Lubrication choice compounds the problem — grease-lubricated positions in dusty environments need seals that block contamination without adding friction heat, while oil-lubricated positions rely on external filtration to maintain cleanliness.
What the E Suffix Actually Changes Inside the Bearing
The E suffix on the 21311E signals a reinforced internal design: optimized roller profile and increased roller complement that shifts the load distribution across a larger contact area. This matters most under the heavy, repetitive shock loads typical of mining and crushing duty cycles. A standard internal design without the E suffix may share the same envelope dimensions — 55 mm bore, 120 mm OD, 29 mm width — but will carry a lower dynamic load rating and fatigue sooner under equivalent impact conditions. For applications involving continuous vibration, this reinforced geometry is not an optional upgrade; it is the difference between a planned annual overhaul and an unplanned shutdown mid-season.
The Downtime Cost Nobody Puts on the Purchase Order
Selecting a bearing on price alone, without confirming cage material or internal geometry, creates costs that never appear on the original invoice. An incorrect 21311E spherical roller bearing with a stamped steel cage in a vibrating screen application risks cage fracture under resonant frequencies, leading to catastrophic roller displacement and shaft scoring [NEED_CITE: cage failure classification under ISO 15243 rolling bearing damage analysis]. The resulting unplanned downtime — lost production, emergency logistics for replacement parts, and potential collateral damage to adjacent components — typically dwarfs the initial price saving many times over. ISO 281 life calculations assume correct internal geometry; a mismatched suffix invalidates the entire life projection.
How We Keep the Supply Chain Honest
Our sourcing model pulls the 21311E spherical roller bearing through authorized distributor channels, so every shipment carries batch-level traceability back to the manufacturer’s production facilities. We provide cross-brand interchange comparisons that match clearance, cage material, and precision class — not just the base number — across SKF, NSK, FAG, TIMKEN, NTN, and KOYO catalogs. Before dispatch, buyers receive a documentation package including country-of-origin papers, HS code support for import compliance, and QR code verification pathways through official brand apps. For new applications, we review load spectra and operating temperatures to confirm the selected suffix and clearance actually fit the duty cycle, catching mismatches before they reach the field.
Documentation & Authenticity
- Supplier Certificate of Conformity listing batch and lot numbers traceable to the manufacturer’s authorized distribution record for this 21311E shipment
- Material certificate confirming bearing steel grade consistent with the reinforced E-series internal geometry requirements
- Pre-shipment dimensional inspection covering bore diameter, OD, width, and radial internal clearance against specified tolerance
- Country-of-origin documentation prepared for import compliance, including HS code classification for spherical roller bearings
- QR code verification instructions for confirming authenticity through the brand’s official mobile application upon receipt
Storage, Handling & Mounting
- Retain the 21311E in its original sealed packaging until the moment of installation; early exposure to humid air risks corrosion on the machined raceways before the bearing ever sees load
- Store the boxed bearing horizontally in a vibration-free area — continuous ambient vibration can cause false brinelling on the reinforced roller-raceway contacts even in static storage
- Use clean, lint-free gloves when handling the open bearing; fingerprint moisture on the high-load-capacity E-design rollers initiates localized corrosion that propagates under cyclic stress
- For cylindrical bore mounting on vibrating screen shafts, apply induction heating to the inner ring with controlled temperature to achieve the required interference fit without damaging the reinforced roller complement
- After mounting, confirm residual internal clearance with a feeler gauge through the outer ring gap — thermal expansion during induction heating may have temporarily masked a tight-fit condition
Request a Technical Review Before You Commit
Share your operating parameters — load spectrum, shaft speed, ambient and operating temperature, and housing fit — so we can verify whether the E-suffix internal design and the selected clearance class match your specific duty cycle. If you are replacing an OEM-specified position, provide the equipment serial number or OEM part number for cross-reference validation across all six brand catalogs. We will respond with a quotation that includes confirmed lead time, documentation scope, and batch availability.
Frequently Asked Questions
Q: How can I confirm the 21311E I receive is genuine and not a counterfeit with cloned markings?
A: Every shipment we supply includes batch and lot traceability linked to authorized distributor records. Upon receipt, you can scan the QR code on the packaging using the brand’s official mobile application to confirm authenticity. We also provide QR code verification pathway guidance so your receiving team knows exactly where to look.
Q: Why does cross-referencing the 21311E require more than matching the base number?
A: A base number match confirms envelope dimensions but ignores clearance class, cage material, and internal geometry suffixes. Installing a CN-clearance bearing where C3 was specified for thermal expansion, or a stamped steel cage where brass was required for vibration resistance, leads to thermal binding or premature cage failure. Our interchange process aligns all three parameters across SKF, NSK, FAG, TIMKEN, NTN, and KOYO.
Q: What does the E suffix mean on the 21311E, and why does it matter for my application?
A: The E suffix indicates a reinforced internal design with optimized roller profile and increased roller complement. This raises the dynamic load-carrying capacity, which is critical for applications involving heavy impact and continuous vibration such as vibrating screens and crushers. Substituting a non-E variant in the same envelope dimensions reduces fatigue life under equivalent loading.
Q: What clearance should I specify for a 21311E on a vibrating screen?
A: Vibrating screens typically require C3 or C4 clearance to accommodate thermal expansion and shaft deflection during operation. The correct choice depends on shaft speed, ambient temperature, and housing fit. We review these parameters before confirming the order to prevent the binding or skidding that occurs when clearance is under-specified.
Q: What documentation will I receive with a bulk order of 21311E bearings?
A: Each bulk shipment includes a Certificate of Conformity with batch traceability, material certificates, a dimensional inspection report, country-of-origin documentation, and HS code classification support for customs clearance. Pre-shipment inspection can be arranged for buyers requiring independent third-party verification.
Confirm Your 21311E Specification and Lead Time
Send us your application parameters or OEM equipment number, and we will return a matched specification with full documentation scope and confirmed availability.
