Description

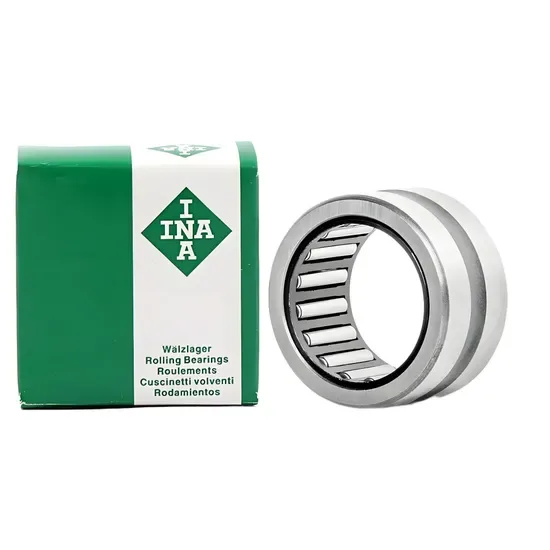

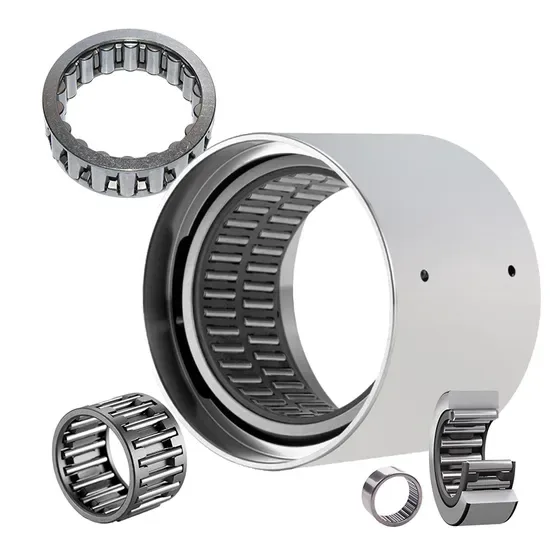

Authorized Sourcing with Traceability — Every INA NK95/36-XL needle roller bearing leaves our facility with batch-matched Certificate of Conformity and QR traceability linked to INA’s official verification portal.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | INA NK95/36-XL |
| Bearing Type | Needle Roller Bearing (without inner or outer ring) |
| Bore Diameter (Fw) | 95 mm |
| Outside Diameter (D) | 115 mm |
| Width (B) | 36 mm |
| Weight | 0.648 kg |
| Style | Open, Single Row |
| Load Direction | Radial |
| Material | Bearing Steel |
| Seal or Shield Type | Open |
| Number of Rows | Single Row |
Note: The XL suffix in this product draft is listed as unverified and requires confirmation against the official INA catalog for its exact load rating implications.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and Crushing | Jaw crusher toggle plate pivots, gyratory crusher eccentric bushings |
| Power Transmission | Heavy reduction gearbox intermediate shafts, planetary gear carriers |
| Material Handling | Overhead crane hoist drum bearings, conveyor drive pulley journals |
| Steel and Metallurgy | Continuous caster guide rolls, rolling mill gear spindles |
The Cage Failure That Took Down a Reduction Line
A needle bearing’s dimensions tell only a fraction of the story — the cage is where it lives or dies.
Years ago, I was called to a Brazilian crushing plant after a heavy reduction gearbox seized barely three weeks following a routine needle roller changeout. The cross-reference had matched the basic number perfectly, but nobody had checked the cage. A stamped steel cage had been substituted where a machined brass one was required. Under the shock loads of that application, the cage cracked, the rollers scattered, and the entire gearbox locked up — four days of lost production. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]
Where Compact Radial Capacity Meets Harsh Loads
The INA NK95/36-XL needle roller bearing is built for environments where radial load capacity must be maximized inside a tight cross-section. Without an inner or outer ring, the housing bore and shaft journal serve as the raceways directly — which means those surfaces must be hardened and ground to specification, or the bearing’s theoretical load rating means nothing on the floor. We’ve seen this INA NK95/36-XL needle roller bearing specified in reduction gearbox output stages where the housing is machined as an integral raceway, keeping the overall envelope small enough to fit between gear webs while still absorbing the full radial forces from the gear mesh. That balance between space and capacity is precisely why needle roller designs remain the default for this kind of compact, high-load transmission layout.
Operating Demands on a Gearbox Needle Bearing
Radial shock loads in reduction gearboxes are rarely pure or steady — they arrive as pulsing impacts each time a gear tooth engages under load. Speed on the intermediate shaft is often moderate, but the combination of high unit pressure and interrupted lubrication films creates a regime where boundary lubrication is common. Temperature rises are a secondary concern compared to cage stress, though thermal expansion in a sealed gearbox can close internal clearance faster than anticipated. Open-type bearings like this one depend entirely on the gearbox oil bath or splash system for lubrication; there is no seal to retain grease, and any contamination that enters the oil reaches the rollers directly. Mounting is straightforward in concept — the bearing slides onto a prepared shaft journal — but the shaft and housing surface hardness, typically HRC 58-62, must be verified before installation, or the softer substrate will brinell under load and destroy the needle complement. [NEED_CITE: shaft and housing raceway hardness requirements for needle roller bearings]
Decoding What the Specs Actually Mean
The single-row radial configuration concentrates the full needle complement into one plane, which maximizes radial load capacity per millimeter of width. The 36 mm width is substantial for a 95 mm bore needle bearing, indicating a design intent for sustained heavy loading rather than light-duty pivoting. Open construction means the needle and cage assembly is exposed on both sides — this is deliberate for gearbox applications where the surrounding oil bath provides cooling and lubrication without the friction penalty of contact seals. The bearing steel construction, typically a high-carbon chromium alloy equivalent to 100Cr6, gives the needles the through-hardness needed to resist surface indentation from debris particles that inevitably circulate in industrial gear oil. Without an inner ring, the shaft itself becomes the inner raceway — a design that saves radial space but transfers the quality responsibility to the machine shop that finished the shaft.
What an Unverified Substitution Really Costs
Sourcing a needle roller bearing on base number alone, without confirming cage material and needle complement, is the most common error I see in the field. The direct costs show up quickly — unplanned downtime while the gearbox is pulled apart again, replacement seals and gaskets, and the labor of a second teardown. The indirect costs are steeper: missed production quotas, expedited freight on the replacement, and in the worst cases, damage to the shaft journal or housing bore that escalates a bearing changeout into a full gearbox rebuild. ISO 281 life calculations assume correct internal geometry and verified material — when those assumptions are violated by a substituted cage or a soft inner raceway, the calculated L10 life becomes meaningless. [NEED_CITE: impact of cage material selection on bearing fatigue life under shock loading]
How We Keep the Sourcing Chain Verifiable
Every INA NK95/36-XL needle roller bearing we supply moves through authorized distributor channels with full batch and lot documentation attached at the point of origin. Our cross-reference database does not just match the base designation — it aligns cage type, needle complement, and internal clearance against the OEM equipment number so the substitution is genuinely equivalent, not just dimensionally close. When a buyer needs to confirm whether the XL suffix affects load rating or interchange compatibility with an existing NK95/36 in service, we pull the manufacturer catalog data and resolve that question before the order ships. Country-of-origin documentation travels with the shipment so import paperwork clears without delays at the destination port.
Documentation & Authenticity
- Certificate of Conformity issued against the specific production batch, cross-referenced to the invoice line item for this INA NK95/36-XL
- Dimensional inspection report covering Fw, D, and B tolerances verified against INA’s published limits before dispatch
- Country-of-origin certificate aligned with the shipping documentation package for customs and import compliance
- QR code verification pathway linked to INA’s official authentication channels for post-delivery traceability confirmation
- Material certificate confirming bearing steel grade consistent with INA’s standard specification for the NK series
Storage, Handling & Mounting
- Retain the INA factory packaging on this open-type NK95/36-XL until the moment of installation to prevent corrosion on the exposed needle surfaces
- The shaft journal acting as the inner raceway must be verified for HRC 58-62 hardness and Ra surface finish before the bearing is slid into position
- Use clean lint-free gloves when handling; fingerprint acids on the 95 mm bore diameter needles will initiate corrosion pits within weeks in a humid gearbox environment
- Verify the gearbox oil filtration rating before commissioning — open-type needle bearings in splash-lubricated systems have no seal to block ingested particles
- For press-fit installation on the housing side, use a mounting sleeve that contacts only the outer diameter, never the needles or cage directly
Getting the Right Bearing to Your Floor
Share the OEM equipment number or the existing bearing’s full designation — including any suffixes stamped on the cage — and we will confirm cross-reference compatibility, cage type alignment, and the verified meaning of the XL suffix for your specific application. If the gearbox operates under non-standard temperature or load conditions, include those parameters so we can review whether an alternative clearance or cage specification is warranted. Documentation packages, lead time, and minimum order quantities are confirmed once the technical match is locked.
Frequently Asked Questions
Q: When cross-referencing an NK-type needle roller bearing, what must match beyond the base number?
A: The Fw, D, and B dimensions are only the starting point. Needle complement — the actual number of needles in the cage — directly affects load capacity. Cage material, whether machined brass or stamped steel, determines shock load tolerance. These three parameters together define whether a substitution will survive in the target application.
Q: What does the XL suffix mean for this INA NK95/36-XL, and does it change compatibility with a standard NK95/36?
A: The XL suffix designation requires confirmation against the current INA catalog edition. Until verified, it should not be assumed to be a direct drop-in replacement for a standard NK95/36 without checking whether load ratings or internal geometry differ. We resolve this against manufacturer documentation before confirming an order.
Q: How should an open-type needle roller bearing without inner or outer ring be installed without damaging the cage?
A: A properly sized mounting sleeve that bears on the outer ring contact surface — never on the cage or needle tips — is essential. Induction heating of the housing is generally not required for this configuration since the outer diameter fits into the housing bore and the shaft acts as the inner raceway.
Q: What lubrication approach is correct for an open NK-series needle bearing in a heavy gearbox?
A: The gearbox oil bath or forced-feed system is the lubrication method. Oil viscosity must be selected for the operating temperature and speed; the open design offers no seal to retain grease, so any attempt to pre-grease and run dry will fail rapidly.
Q: What lead time should I expect for less common needle roller designations sourced through authorized channels?
A: Availability depends on the distributor network stock at the time of inquiry. Less common width and bore combinations can carry multi-week lead times when not held in regional inventory. We confirm availability and dispatch dates once the technical specification is agreed.
Secure Your Verified INA NK95/36-XL Sourcing
Send us the OEM equipment number or your application parameters, and we will return a confirmed technical match with full documentation and batch traceability.
