Description

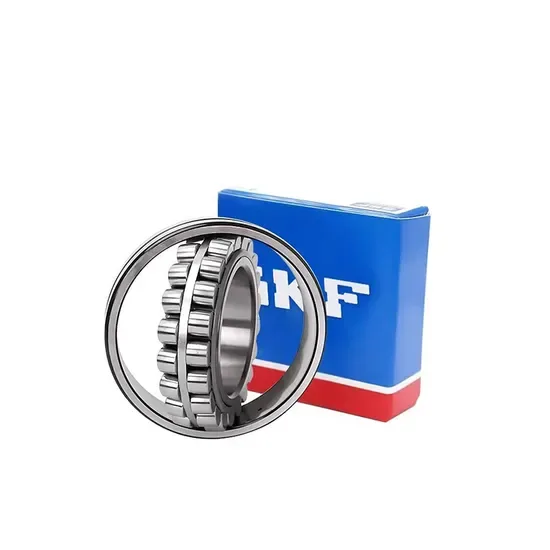

Authorized Channel Sourcing — Every 22244CC/W33 spherical roller bearing we dispatch ships with full batch traceability linked back to the manufacturer’s production facilities through verified distributor networks.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SKF 22244CC/W33 |
| Bearing Type | Spherical Roller Bearing |
| Width (B) | 108mm |
| Lubrication Feature | Annular groove and three lubrication holes in outer ring (W33) |
| Cage Design | CC-type pressed steel cage |
| Number of Rows | Two |
| Bore Type | Cylindrical |
| Origin | Available upon request with country-of-origin documentation |
The CC cage design suffix remains unverified against the current manufacturer catalog and should be confirmed prior to final order placement.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and crushing | Crusher eccentric shaft, jaw crusher toggle plate pivot |
| Steel mill equipment | Continuous caster guide rolls, rolling mill work roll necks |
| Pulp and paper | Paper machine dryer cylinder bearings, press section rolls |
| Heavy-duty industrial | Vibrating screen eccentric mechanism, kiln support rollers |
What Happens When a Suffix Gets Overlooked on a Kiln Bearing
A single missed suffix once shut down a cement kiln for seven days.
Early in my career, I shipped a batch of 22244 bearings to a plant in Vietnam. The base designation matched perfectly, but I overlooked the CC suffix and sent standard CN clearance instead of C3. Within three months, thermal expansion locked the rollers against the cage. The cage tore apart under load, and the kiln sat idle while replacement parts were flown in. That phone call from the plant manager is something I have never forgotten. [NEED_CITE: thermal expansion effects on roller bearing clearance in high-temperature kiln applications]
Counterfeit spherical roller bearings now circulate through unverified middlemen with soft inner rings and cloned markings that pass casual visual inspection. A 22244CC/W33 spherical roller bearing sourced outside authorized channels may look identical on the shelf but fail catastrophically under the combined radial and axial loads found in crushers and vibrating screens.
How the W33 Feature Serves Vibrating Screen and Crusher Duty
Vibrating screens and crushers subject bearings to heavy shock loads and constant misalignment. The W33 suffix on this 22244CC/W33 spherical roller bearing provides an annular groove and three lubrication holes in the outer ring, allowing grease or oil to reach the roller-cage interface directly during re-lubrication intervals. Without this feature, maintenance crews must rely on grease migration through the cage pockets, which becomes unreliable once contamination builds up in mining environments.
We once supported a quarry operator who kept replacing screen bearings every few months. Switching to a W33-equipped variant with a disciplined re-greasing schedule noticeably extended service intervals. Our cross-brand interchange database helped them identify equivalent designs across SKF, NSK, and FAG, matching not just the base number but the lubrication suffix and clearance class as well.
Load Profiles, Temperatures, and Lubrication Demands in Heavy Industry
Crusher eccentric shafts experience cyclic radial loads combined with moderate axial thrust from belt tension and material impact. Vibrating screens add high-frequency oscillation that accelerates cage wear if the bearing operates with insufficient internal clearance at elevated temperatures. [NEED_CITE: ISO 281 bearing life calculation under combined loading conditions]
In steel mill continuous casters, ambient heat radiating from slabs raises housing temperatures well above the grease dropping point of standard lithium-complex lubricants. The W33 lubrication groove becomes essential here, as it allows high-temperature synthetic grease to be injected directly into the load zone without dismantling the housing. Proper sealing on the housing side — not the bearing itself, since this is an open design — becomes the responsibility of the equipment engineer to prevent scale and coolant ingress.
Reading the Suffix Stack: What CC and W33 Actually Control
The two suffixes on this bearing each govern a distinct performance dimension. The CC cage designation refers to a pressed steel cage design intended for moderate-speed, heavy-load applications where cage strength under shock loading matters more than high-speed friction reduction. Pressed steel cages tolerate the vibration amplitudes found in screens and crushers without the fatigue cracking that can affect machined brass cages under similar oscillatory stress.
The W33 feature addresses lubrication logistics. In large-bore spherical roller bearings, getting fresh lubricant to the roller ends and cage pockets is difficult through side-fill methods alone. The annular groove acts as a distribution channel, and the three radial holes feed lubricant directly into the space between the two roller rows. For equipment running in dusty or wet environments, this means maintenance teams can purge contaminated grease more effectively during scheduled re-lubrication stops.
Downtime Costs That Do Not Show Up on a Purchase Order
A bearing that costs slightly less upfront but arrives with incorrect clearance or an unverified cage material can trigger unplanned downtime that dwarfs the original savings. In crusher applications, a single unplanned shutdown for bearing replacement involves crane mobilization, housing disassembly, shaft inspection for scoring damage, and lost production throughput. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]
Counterfeit bearings with soft inner rings may show acceptable hardness readings at the raceway surface but fail at the roller-guiding flanges where contact stresses concentrate. Once flange spalling begins, the resulting debris accelerates cage wear and can lead to catastrophic roller ejection. Sourcing a 22244CC/W33 spherical roller bearing through authorized distributor channels with pre-shipment inspection eliminates this failure pathway before the bearing ever reaches the site.
How We Reduce Procurement Risk on Every Shipment
Every 22244CC/W33 spherical roller bearing we supply is traced through authorized distributor channels back to the manufacturer’s production lot, with documentation you can audit independently. Our cross-reference database does not stop at matching base designations — it aligns clearance class, cage material, and precision suffix across all six major brands so that substitutions perform identically in the field.
When a buyer in Central Asia needed to replace a vibrating screen bearing originally specified by an OEM in a different brand, we provided a full interchange comparison showing the exact suffix equivalence including W33 lubrication and cage type. Country-of-origin documentation accompanied the shipment for customs clearance, and the buyer verified authenticity via the brand’s official QR code application upon receipt.
Documentation & Authenticity
- Supplier Certificate of Conformity linked to the specific production batch of this 22244CC/W33 spherical roller bearing, not a generic blanket certificate
- Third-party dimensional inspection report confirming bore, OD, and width against tolerances before pallet leaves the warehouse
- Country-of-origin certificate supporting import documentation requirements for buyers in regions with strict customs verification
- QR code verification pathway enabling on-site authenticity confirmation through the brand’s official mobile application
- Material certificate confirming bearing steel grade and heat treatment condition for the inner and outer rings
Storage, Handling & Mounting
- Retain the factory-sealed VCI packaging until the moment of mounting; premature exposure to humid workshop air can initiate corrosion on the exposed raceways of this open-design W33 bearing
- Store horizontally on a flat shelf rather than standing on edge to prevent cage distortion in this large-bore 108mm-width spherical roller bearing
- Use clean lint-free gloves when handling; fingerprint residue on the outer ring lubrication groove can contaminate the first grease charge pumped through the W33 holes
- For cylindrical bore mounting on crusher eccentric shafts, apply induction heating to the inner ring and monitor temperature to avoid exceeding the tempering threshold of the bearing steel
- After mounting, pump fresh grease through the W33 outer ring groove until clean grease purges from both sides, confirming the lubrication channel is clear and fully charged
Start Your Technical Review
Share your operating parameters — load magnitude, shaft speed, housing temperature, and re-lubrication interval — so we can verify that the 22244CC/W33 clearance and cage configuration match your application requirements. If you are replacing an existing bearing, provide the OEM equipment number or the markings from the removed unit and we will run a full cross-reference check including suffix alignment.
Frequently Asked Questions
Q: How do I verify that a 22244CC/W33 spherical roller bearing is genuine and not counterfeit?
A: Request the QR code printed on the bearing packaging and scan it using the brand’s official mobile application. Genuine products will return a match in the manufacturer’s database linked to the specific production batch. We provide this verification pathway along with a Certificate of Conformity tied to your shipment’s lot number. Counterfeit bearings often have cloned QR codes that redirect to unofficial websites — always verify through the brand’s official app downloaded from a trusted source.
Q: What does the W33 suffix mean, and is it always required for crusher and screen applications?
A: W33 indicates an annular groove with three lubrication holes in the outer ring. This feature is highly recommended for applications where re-lubrication through the housing is the primary maintenance method, such as vibrating screens and crushers operating in contaminated environments. If your equipment uses oil bath lubrication with sealed housings, the W33 feature may be unnecessary, but it does no harm.
Q: How should I cross-reference this bearing to other brands like NSK or FAG?
A: Cross-referencing requires matching more than the base designation. You must also align the clearance class, cage type, and lubrication suffix. Our interchange database compares these parameters across SKF, NSK, FAG, TIMKEN, NTN, and KOYO to ensure that a substitute bearing performs identically under your specific load and speed conditions.
Q: What clearance class should I specify for a vibrating screen operating at elevated temperatures?
A: Vibrating screens typically require C3 or greater internal clearance to accommodate thermal expansion and the interference fit on the shaft. Operating a standard CN clearance bearing in a high-vibration, elevated-temperature screen application risks internal preload buildup, which accelerates roller and cage wear. Share your measured housing temperature and shaft fit tolerance so we can confirm the correct clearance.
Q: What documentation comes with a bulk order of these bearings?
A: Each bulk shipment includes a Certificate of Conformity with batch and lot traceability, country-of-origin documentation for import compliance, dimensional inspection results, and material certificates. Pre-shipment inspection reports are available upon request, and all documentation is compiled into a single package with your shipping documents.
Get Your Application-Specific Quotation
Send us your operating parameters or OEM equipment number, and we will confirm suffix compatibility, clearance class, and lead time within one business day. Reach out through our inquiry channels to start the technical review.
