Description
Authorized Channel Sourcing — Every SKF 22317EK ships with batch-level traceability and verifiable origin documents that cross-reference against SKF’s global distribution records.
Technical Specifications
| Parameter | Value |
|---|---|

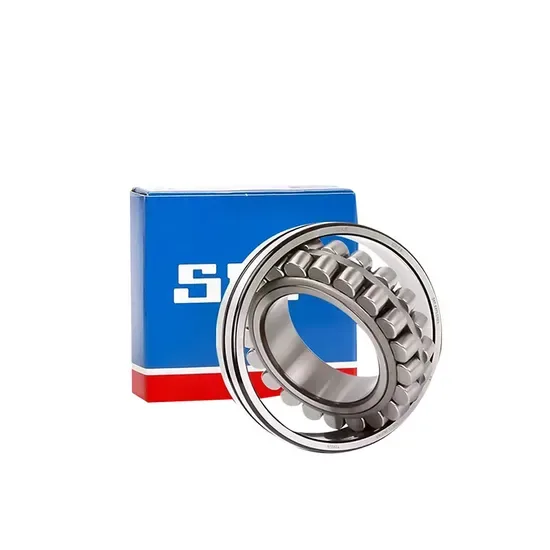

| Designation | SKF 22317EK |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 85mm |
| Outside Diameter (D) | 180mm |
| Width (B) | 60mm |
| Bore Type | Tapered (1:12 taper) |
| Internal Design | Reinforced (E suffix) |
| Number of Rows | Two |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and crushing | Vibrating screen exciter shafts, jaw crusher toggle plate pivots |
| Steel and metallurgy | Continuous caster guide rollers, rolling mill work roll chocks |
| Industrial machinery | Paper machine dryer section rolls, large industrial fan shafts |
What a Soft Inner Ring Costs When Your Screen Won’t Stop Shaking
The SKF 22317EK spherical roller bearing survives where counterfeits collapse — but only when the suffix is right and the supply chain is clean.
I once traced a vibrating screen failure back to a bearing that looked perfect on the outside. The QR code scanned, the box had the right hologram, and the weight felt close. But the inner ring hardness measured well below HRC 58. Under continuous vibration, that soft raceway developed spalls within months, sending steel particles through the entire gearbox. Counterfeit spherical roller bearings with cloned packaging and soft metallurgy enter the supply chain through unverified middlemen regularly, and the damage rarely stays inside one bearing [NEED_CITE: counterfeit bearing detection methods per SKF official guidance]. When you’re running a three-deck screen at full production, unplanned downtime on the exciter shaft cascades into lost tonnes that dwarf whatever you saved on the unit price.
How the 22317EK Handles Vibrating Screen Exciter Duty
The SKF 22317EK spherical roller bearing carries heavy radial loads with moderate axial components — exactly the mixed loading pattern a vibrating screen exciter produces. The reinforced internal geometry (E suffix) increases roller count and optimizes contact profiles, which matters when the screen body deflects under dynamic load at hundreds of cycles per minute. Tapered bore mounting on an adapter sleeve lets you dial in the exact drive-up distance and residual clearance, keeping the bearing seated tight even when the shaft tries to walk. We’ve seen procurement teams match the base number 22317 and skip the E and K entirely, then wonder why a standard clearance open-bore version fails to hold position on a vibrating application.
Load Spectra, Heat, and the Dust That Gets Everywhere
Vibrating screens and crushers expose bearings to heavy radial shock loads that reverse direction with every oscillation cycle. Speeds stay moderate, but the repeated impact demands a cage design that can handle inertia without cracking at the pockets. Ambient temperatures near crushers climb, and the internal heat generated by continuous vibration further reduces operating clearance — making the choice between CN and C3 a decision that determines whether the bearing runs or seizes. Dust ingress is relentless in mining environments; external sealing arrangements (labyrinth plus grease purge) carry most of the contamination defense responsibility since the 22317EK itself is an open bearing [NEED_CITE: bearing contamination impact on fatigue life per ISO 281]. Lubrication intervals shorten considerably in these conditions, and greasing practices matter as much as grease selection.
Reading Between the Suffixes: What E and K Actually Do
The E suffix indicates SKF’s reinforced internal design — larger rollers, optimized raceway curvature, and improved load distribution across the roller-raceway contact zone. For a vibrating screen running under shock load, this translates to reduced edge stress and noticeably extended L10 life under equivalent loading. The K suffix specifies a tapered bore with a 1:12 ratio, designed to mount on an adapter sleeve (typically an H-series sleeve). The interference fit generated by driving the inner ring up the taper creates a tight shaft lock that resists creeping under vibration — a failure mode that destroys cylindrical-bore bearings on exciter shafts within weeks. Together, E and K make the SKF 22317EK spherical roller bearing specifically suited to heavy-vibration mounting environments where shaft security and load capacity must coexist.
What Wrong Clearance and Fake Metallurgy Actually Cost
Selecting CN clearance for an application that thermally demands C3, or installing a counterfeit with soft raceways, doesn’t just shorten bearing life — it triggers unplanned downtime, secondary damage to housings and shafts, and potential safety incidents on heavy rotating equipment. ISO 15243 classifies these outcomes as spalling, smearing, and cage fracture, all of which appear disproportionately in bearings that passed visual inspection but failed metallurgical reality [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The real cost sits in the lost production hours while your maintenance team pulls the shaft, replaces the bearing, and re-aligns the entire drive train. Genuine SKF product sourced through authorized distributor channels with batch-level documentation eliminates the metallurgy lottery entirely.
How Our Supply Chain Protects Your Crusher Downtime Budget
We source the SKF 22317EK through authorized SKF distributor channels, which means every unit carries batch traceability back to the production facility — not a trading company invoice with a vague origin claim. Our cross-reference database matches clearance, cage material, and precision suffixes across brands, so if an OEM manual specifies an FAG or NSK equivalent, we verify all three parameters align rather than swapping on base number alone. Country-of-origin documentation ships with every order for import compliance, and third-party pre-shipment dimensional inspection is available when your maintenance protocol requires it. We provide QR code verification guidance through SKF’s official app so your receiving team can confirm authenticity before the bearing leaves the crate. Application-based technical selection guidance covers clearance decisions, adapter sleeve pairing, and drive-up calculations for tapered bore installations — the details that separate a bearing that lasts a full campaign from one that fails before the next scheduled shutdown.
Documentation & Authenticity
- Supplier Certificate of Conformity with batch and lot numbers traceable through SKF’s authorized channel records
- QR code verification pathway using the SKF official mobile app for on-site authenticity confirmation at receiving
- Country-of-origin certificate included in shipping documents for customs clearance and import compliance
- Third-party dimensional and runout inspection reports available for critical vibrating screen installations
- Material and heat treatment certificates confirming inner and outer ring hardness within HRC 58-62 range
Storage, Handling & Mounting
- Keep the SKF 22317EK in original sealed packaging until the adapter sleeve and shaft are ready — early exposure to humid mine-site air accelerates corrosion on the tapered bore surface
- Mount on the matching H-series adapter sleeve using the manufacturer’s specified drive-up distance to achieve correct residual internal clearance after thermal expansion
- Apply induction heating to the inner ring only, keeping temperature within the manufacturer’s recommended range to avoid annealing the tapered bore contact surface
- Store horizontally on a flat surface; the 180mm outside diameter and 60mm width make this bearing prone to cage distortion if stood on edge in long-term storage
- Use clean gloves when handling — skin contact on the exposed raceways of this open bearing introduces chloride contamination that initiates surface corrosion before installation
Confirm Your Application Fit Before You Order
Share your screen or crusher operating parameters — shaft speed, ambient temperature range, load spectrum, and existing sleeve designation — so we can verify clearance class and confirm the SKF 22317EK spherical roller bearing matches your duty cycle. If you’re replacing by OEM equipment number, provide the machine model and we’ll cross-reference the original specification including suffix requirements. Request the documentation package and country-of-origin confirmation upfront to avoid customs delays. Ask about current batch availability and lead times for your required quantity.
Frequently Asked Questions
Q: How do I confirm the SKF 22317EK I received is genuine?
A: Every unit we supply carries a batch number traceable through SKF’s authorized channel records. Scan the QR code on the packaging using SKF’s official mobile app to verify authenticity against the manufacturer’s database. Receiving inspectors should also compare physical characteristics — weight, surface finish on the tapered bore, and laser marking quality — against the specification sheet we provide with shipment.
Q: What do the E and K suffixes mean on this bearing?
A: The E suffix indicates reinforced internal design with optimized roller and raceway geometry for increased load-carrying capacity. The K suffix specifies a tapered bore with a 1:12 taper ratio, designed for mounting on an adapter sleeve to create a secure interference fit on the shaft. Both suffixes together make this bearing particularly suited to high-vibration heavy-load applications.
Q: Can I substitute a different brand for the SKF 22317EK?
A: Cross-brand substitution is possible, but matching the base number 22317 alone is not sufficient. Clearance class, cage material and design, internal geometry, and bore type must all align. We cross-reference across SKF, NSK, FAG, TIMKEN, NTN, and KOYO databases verifying all three parameters — not just the designation — before recommending an interchange.
Q: How should I select the adapter sleeve for this tapered bore bearing?
A: The 1:12 tapered bore of the SKF 22317EK mounts on a corresponding H-series adapter sleeve sized to your shaft diameter. Correct sleeve selection and drive-up distance directly control the residual internal clearance after installation. We provide adapter sleeve pairing guidance and recommended drive-up measurements with each order to prevent under-tightening (shaft creep) or over-tightening (zero clearance seizure).
Q: What documentation do you provide for import shipments?
A: Each shipment includes a supplier Certificate of Conformity with batch traceability, country-of-origin documentation for customs compliance, and applicable HS code information. Third-party pre-shipment inspection reports covering dimensions and material can be arranged upon request for buyers requiring independent verification before container loading.
Verify Your SKF 22317EK Requirement With Us
Send your application parameters or OEM equipment number, and we’ll confirm the correct specification with matching clearance and sleeve pairing — backed by authorized channel traceability and full import documentation.
