Description
Authorized Channel Sourcing — Batch-traceable INA NKI70/25-XL needle roller bearings delivered with certificate of conformity and dimensional inspection documentation for import-ready procurement.
Technical Specifications
| Parameter | Value |
|---|---|

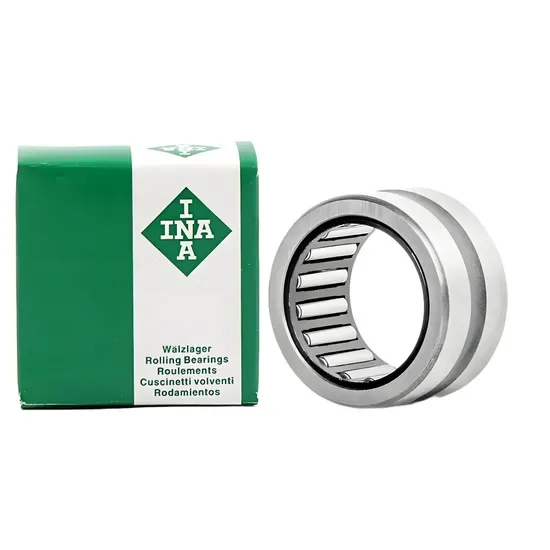

| Designation | INA NKI70/25-XL |
| Bearing Type | Needle Roller Bearing |
| Bore Diameter (d) | 70 mm |
| Outside Diameter (D) | 95 mm |
| Width (B) | 25 mm |
| Weight | 0.5 kg |
| Seal or Shield Type | Open |
| Number of Rows | Single Row |
| Style | Without Outer Ring, Without Inner Ring |
| Load Direction | Radial |
The XL suffix is listed as an X-Life series designation; specific performance parameters require verification against the current INA catalog.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial machinery | Gearbox intermediate shafts, compressor crankcase supports |
| Automotive and heavy vehicle repair | Transmission layshafts, transfer case idler gears |
| Material handling | Conveyor pulley bearings, bucket elevator drive shafts |
| Mining and crushing | Vibrating screen side plates, feeder drive mechanisms |
Why the Inner Ring Matters on the INA NKI70/25-XL
A needle bearing without an inner ring relies entirely on shaft surface finish and hardness — and most field failures trace back to ignored shaft preparation.
When procurement engineers match a base designation but overlook whether the original equipment specified an inner ring variant like the NKI70/25-XL versus the inner-ring-free NK70/25, the result is often a shaft that was never ground to the required surface roughness or hardened to HRC58-62. The needle rollers then score the soft shaft journal within weeks, and what looks like a bearing failure is actually a shaft rebuild waiting to happen [NEED_CITE: needle roller bearing shaft hardness requirements per ISO 15243 failure classification]. This mismatch between NKI and NK variants accounts for a significant share of premature returns in heavy-duty power transmission applications.
Matching Radial Load Demands in Compact Cross-Sections
The INA NKI70/25-XL occupies a 70 mm bore within a 95 mm outer diameter envelope, making it suitable where radial load capacity must be maximized without increasing housing bore. In gearbox and compressor applications, shaft deflection under load demands the line contact geometry that needle rollers provide over conventional ball bearings of comparable section height. We have supplied this configuration to maintenance teams replacing OEM needle bearings in industrial gearboxes, where verifying bore diameter and confirming inner ring presence eliminated repeat failures within the first overhaul cycle.
Thermal and Contamination Challenges in Heavy-Duty Service
Needle roller bearings in mining conveyors and vibrating screens face two compounding threats: particulate ingress through the open cage and thermal expansion that consumes internal radial clearance. The open-type construction of this bearing allows maintenance crews to select lubricant viscosity and replenishment intervals matched to actual operating temperature and contamination levels, rather than relying on a factory grease fill that may not suit the site environment [NEED_CITE: open bearing lubrication interval selection for contaminated environments]. Shaft and housing fit tolerances must be calculated against peak operating temperature to ensure residual clearance remains positive under thermal steady-state conditions.
Reading the Specification Sheet Beyond the Part Number
The 70 mm bore and 25 mm width define the mounting envelope, but the load path through needle rollers depends equally on cage guidance and outer ring machining quality. A machined outer ring with integral flanges, as specified for the NKI series, provides axial roller guidance that stamped cup alternatives cannot match under shock loading or frequent direction reversal. The single-row arrangement concentrates all load capacity into one plane of needle contact, which is appropriate for predominantly radial force profiles but means any unintended axial thrust must be handled by a separate locating bearing. Open construction shifts sealing responsibility to the housing design — labyrinth seals or lip seals in the adjacent structure must be specified by the equipment designer rather than assumed to be part of the bearing itself.
What Happens When Cross-Reference Ignores the Suffix
Substituting a bearing that matches the bore, OD, and width but omits the XL designation or confuses NKI with NK variants introduces failure modes that do not appear during initial installation. The shaft may run acceptably for several hundred hours before surface fatigue manifests as spalling on the journal, at which point the damage extends beyond a simple bearing swap into shaft machining or replacement [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Warranty claims on the replacement bearing are typically voided when investigation reveals improper shaft preparation, leaving the maintenance budget to absorb both the secondary failure and the unplanned downtime.
How We Support Procurement Beyond the Quote
Sourcing genuine INA bearings requires more than matching a part number to a catalog line. We pull stock through authorized distributor channels where batch codes trace back to the manufacturer’s production facilities, and every shipment carries a certificate of conformity tied to that specific lot. When a cross-reference is requested — perhaps to evaluate an NSK or SKF equivalent — we align not just the base dimensions but the cage type, clearance class, and inner ring configuration so the substitute performs identically in the field. For import buyers, we prepare country-of-origin documentation and HS code classification so customs clearance does not become an unexpected bottleneck at the destination port.
Documentation & Authenticity
- Supplier Certificate of Conformity referencing the specific batch and lot number of the NKI70/25-XL units shipped
- Dimensional inspection report confirming bore, OD, and width tolerances before dispatch
- Material certificate tracing the bearing steel to its heat lot for metallurgical accountability
- Country-of-origin documentation and HS code support prepared for import compliance at destination
- QR code verification pathway through INA official applications for on-site authenticity confirmation upon receipt
Storage, Handling & Mounting
- Retain the original sealed packaging until the moment of installation to preserve the factory-applied corrosion inhibitor on the exposed machined outer ring surfaces
- Store flat in a climate-controlled area below 60% relative humidity; the 0.5 kg single-row configuration is small enough to stack, but edge pressure on the cage can distort needle alignment
- Wear lint-free gloves during handling — fingerprints on the needle rollers introduce acidic residue that initiates corrosion pits under cyclic loading
- For open-type installation, flush the housing cavity with clean lubricant immediately before mounting to displace any residual machining coolant or particulate from prior service
- Verify shaft journal hardness and surface finish against INA specifications before pressing the inner ring; the NKI design assumes a hardened and ground inner ring seat, and a soft shaft will fail regardless of bearing authenticity
Request a Quotation with Full Technical Review
Share your application parameters — radial load, operating speed, ambient and peak temperature, and housing seal type — so we can confirm whether the open-type NKI70/25-XL matches your service conditions or whether a sealed variant or alternative clearance class is warranted. If you are replacing an OEM-installed bearing, provide the equipment nameplate number and we will cross-verify the original specification against available stock. Documentation packages including COC, material certificates, and origin files can be previewed before you commit to a purchase order.
Frequently Asked Questions
Q: How do I confirm whether a received INA NKI70/25-XL is genuine?
A: Scan the QR code on the packaging using the official INA application to verify batch registration. We also supply a Certificate of Conformity tied to the specific lot number, and the authorized distributor chain documentation traces the unit back to its point of manufacture.
Q: What is the difference between NKI70/25 and NK70/25, and can they be interchanged?
A: The NKI designation indicates the bearing includes a separable inner ring, while NK variants are supplied without one and require the shaft journal to serve as the inner raceway. Substituting an NK in place of an NKI without verifying shaft hardness and finish will lead to rapid journal wear.
Q: Does the XL suffix affect dimensional interchange with other brands?
A: The XL designation relates to the X-Life performance series and does not alter the 70×95×25 mm envelope dimensions. When cross-referencing to equivalent bearings from other manufacturers, dimensional fit remains compatible, but cage design and internal geometry should be reviewed for application suitability.
Q: What lubrication approach is recommended for this open-type bearing?
A: Open construction allows the maintenance team to select grease or oil lubrication matched to the specific speed and temperature profile of the installation. Relubrication intervals and quantity should follow the equipment manufacturer’s schedule or be calculated based on operating conditions.
Q: Can you supply country-of-origin documentation for customs clearance?
A: Yes. Each shipment includes origin certification and the applicable HS code classification, prepared to meet the import documentation requirements of the destination country.
Verify Your INA NKI70/25-XL Requirements with Our Technical Team
Send your application parameters or OEM equipment number, and we will return a specification-confirmed quotation with full documentation preview and current batch availability.
