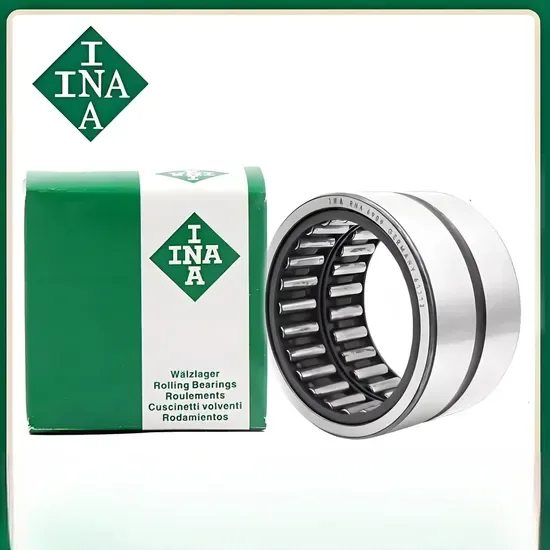

Description
Traceable sourcing — every NK25/20-XL ships with batch lot records and INA official QR verification pathway.

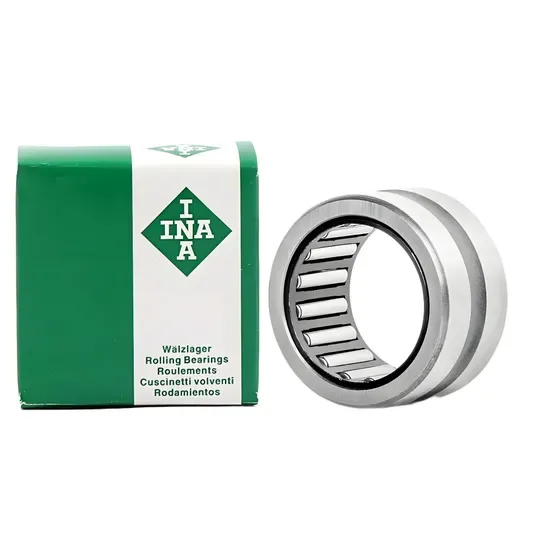

Technical Specifications
| Parameter | Value |
|---|---|
| Designation | INA NK25/20-XL |
| Bearing Type | Needle Roller Bearing |
| Bore Diameter (Fw) | 25 mm |
| Outside Diameter (D) | 33 mm |
| Width (B) | 20 mm |
| Weight | 0.042 kg |
| Material | Bearing Steel |
| Seal or Shield Type | Open |
| Style | Without Outer Ring, Without Inner Ring |
| Load Direction | Radial Bearing |
The XL suffix designation requires confirmation against the latest INA manufacturer catalog for precise internal geometry details.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Motorcycle aftermarket | Transmission gearbox countershaft, clutch release mechanism |
| Automotive powertrain | Manual transmission shift fork pivot, compact radial joints |
| Industrial machinery | Compact planetary gearbox stages, conveyor idler roller pivots |
| Agricultural machinery | PTO driveline universal joint trunnions |
When a Soft Needle Roller Destroys a Gearbox Before the Warranty Expires
Surface hardness below specification turns a needle roller into a brinelling tool under shift loads.
I once watched a Southeast Asian transmission rebuild shop pull apart dozens of motorcycle engines — all within 3,000 kilometers of reassembly. The needle rollers looked pristine on the bench, but under the microscope their surfaces showed shallow indentations from every gear engagement. Metal shards circulated through the oil sump, scoring shaft journals and destroying cage pockets downstream. The root cause was never the shaft design or the lubricant; it was a batch of rollers that never reached HRC 60 during heat treatment, and no amount of casual visual inspection could have caught it. Counterfeit needle roller bearings with cloned markings and soft surfaces continue to enter motorcycle transmission supply chains through unverified middlemen [NEED_CITE: counterfeit bearing failure mechanisms in powertrain applications].
How the NK25/20-XL Envelope Fits Compact Powertrain Layouts
The 25 mm bore and 33 mm outside diameter with a 20 mm width give this INA NK25/20-XL needle roller bearing a high radial load capacity relative to its cross-section, making it suitable where housing space is constrained but shaft rigidity is already ensured by the mating raceway. The open-type construction without inner or outer ring allows the rolling elements to sit directly against hardened and ground raceways on the shaft and in the housing bore — a configuration common in motorcycle transmission countershafts where every millimeter of envelope matters. Sourcing this bearing through authorized distributor channels ensures that the needle rollers meet the manufacturer’s specified surface hardness and case depth, which directly determines resistance to brinelling under the repeated shock loads of gear engagement.
Radial Shock Loads, High Cycling, and Lubrication Exposure in a Gearbox
Motorcycle transmission needle rollers experience frequent load reversals as gears engage and disengage, combined with radial forces from chain or primary drive tension. The open design of the NK25/20-XL means lubrication depends entirely on the gearbox oil bath or splash system — there is no integrated seal to retain grease or exclude contamination. Operating temperatures in a transmission sump typically remain moderate, but localized flash temperatures at the needle-to-raceway contact can be significant under heavy load, requiring oil with adequate film strength and anti-wear additives. Shaft and housing fit tolerances must be controlled precisely; an overly loose housing fit allows the outer raceway to spin under load, while an overly tight shaft fit can eliminate the operating clearance needed for thermal expansion [NEED_CITE: needle roller bearing mounting fit recommendations per ISO standards].
Reading the Key Specifications Behind the Designation
The NK series designation indicates a needle roller bearing without an inner ring but with a machined outer ring — in this case, the NK25/20-XL is supplied without either ring, meaning the shaft and housing must provide the raceways. The 25 mm Fw bore matches a hardened and ground shaft journal, while the 33 mm D and 20 mm B dimensions define the housing bore pocket. Needle roller bearings of this type achieve high radial load capacity because the rolling elements have a large length-to-diameter ratio, distributing load over a greater contact area than ball bearings of equivalent cross-section. The bearing steel material and through-hardened needle rollers provide the fatigue resistance needed for high-cycle applications, though the open construction places the burden of contamination exclusion entirely on the housing design and filtration of the lubricant supply.
The Hidden Price of Unverified Needle Rollers in a Transmission
Correctly sourced needle roller bearings from traceable channels deliver L10 service life predictions that align with ISO 281 calculations. Substituting with unverified stock — where surface hardness, case depth, or dimensional tolerances are unknown — shifts the failure mode from predictable fatigue spalling to unpredictable brinelling, cage fracture, or shaft scoring. Under ISO 15243 damage classification, these failure modes leave distinct signatures on the raceway and rolling elements, but by the time they are visible, secondary damage to gears, shafts, and seals has already multiplied the repair cost many times over the original bearing price [NEED_CITE: rolling bearing damage classification per ISO 15243].
What Our Sourcing Process Provides That a Catalog Number Cannot
Every INA NK25/20-XL we supply is procured through authorized distributor channels with batch and lot traceability documentation accompanying each shipment. We provide guidance on verifying authenticity through the INA official application QR code scanning pathway, giving procurement engineers a direct confirmation tool rather than relying on supplier self-declaration. Our cross-reference capability covers clearance, cage material, and precision suffix alignment across SKF, NSK, FAG, TIMKEN, NTN, and KOYO equivalents — ensuring that a substitution maintains the same internal geometry and load distribution characteristics, not merely the same base designation. Country-of-origin documentation is prepared for import clearance, and third-party dimensional inspection reports confirming Fw, D, and B tolerances are available upon request. For new applications or unfamiliar equipment numbers, we review application parameters including load, speed, and mounting envelope before confirming suitability.
Documentation & Authenticity
- Certificate of Conformity with batch and lot traceability specific to the NK25/20-XL needle roller bearing shipment
- INA official app QR code verification pathway guidance for on-the-spot authenticity confirmation upon receipt
- Country-of-origin documentation prepared for import customs clearance and buyer compliance records
- Third-party dimensional inspection report confirming Fw 25 mm, D 33 mm, and B 20 mm tolerances against drawing requirements
- Material certificate covering bearing steel composition and heat treatment batch for the needle rollers and outer ring
Storage, Handling & Mounting
- Keep the NK25/20-XL in original sealed packaging until mounting; the open-type construction exposes precision-ground raceways and needle rollers to ambient humidity and particulate contamination if stored unpackaged
- Handle with clean lint-free gloves; fingerprints on the needle roller surfaces or outer ring raceway can initiate corrosion spots that become fatigue initiation sites under high-cycle transmission loading
- Mount using a soft-face drift or dedicated installation sleeve acting on the outer ring only; direct hammer blows on the needle roller cage will distort the retainer pockets and restrict roller free rotation in this 25 mm bore size
- Verify shaft journal hardness and surface finish before installation; the NK series without inner ring relies entirely on the shaft raceway for load support, and inadequate shaft hardness will cause rapid brinelling regardless of needle roller quality
- Fill the gearbox with the specified lubricant immediately after assembly; the open construction of this needle roller bearing provides no grease retention, and dry startup even for a few seconds can cause roller-to-raceway metal-to-metal contact damage
Getting the Right NK25/20-XL Into Your Supply Chain
Share your application parameters — shaft speed, radial load, operating temperature, and housing envelope — and we will confirm suitability and cross-reference availability against equivalent designs from other major brands. Provide an OEM equipment number or existing part number with suffix, and we will verify clearance, cage type, and precision class alignment before quoting. Documentation packages including authenticity verification guidance and country-of-origin confirmation are prepared alongside every quotation.
Frequently Asked Questions
Q: How can I verify that an INA NK25/20-XL needle roller bearing is genuine?
A: INA provides an official mobile application with QR code scanning functionality. Each genuine bearing package includes a unique QR code that, when scanned through the official app, returns authentication confirmation from the manufacturer’s database. We guide customers through this verification process and provide batch traceability documentation linking the shipped lot to the original production records.
Q: What does the XL suffix mean on this INA needle roller bearing?
A: The XL suffix on INA needle roller bearings generally indicates an X-Life series designation, reflecting optimized internal geometry for extended operational life. For precise details on the specific internal modifications and performance characteristics associated with this suffix on the NK25/20-XL, we recommend confirmation against the current INA manufacturer catalog, as suffix definitions can be updated across production revisions.
Q: When should I specify an NK series versus an HK or RNA series needle roller bearing?
A: The NK series designation indicates a needle roller bearing with a machined outer ring but no inner ring, suitable when the shaft can be hardened and ground to serve as the inner raceway. The HK series has a drawn cup outer ring and no inner ring, offering a more compact cross-section but lower load capacity. The RNA series has a machined outer ring with no inner ring but includes a thicker section for heavier loads. Selection depends on the load capacity required, housing bore preparation capability, and whether the shaft can be hardened to bearing raceway quality.
Q: Can you cross-reference the INA NK25/20-XL to equivalent bearings from other brands?
A: Yes. We maintain cross-reference data covering SKF, NSK, FAG, TIMKEN, NTN, and KOYO needle roller bearing ranges. Cross-referencing goes beyond matching the 25 mm bore, 33 mm outside diameter, and 20 mm width — we verify that clearance class, cage material, and needle roller complement are aligned to ensure equivalent load distribution and service life in your specific application.
Q: What documentation do you provide with needle roller bearing orders for motorcycle transmission applications?
A: Each shipment includes a Certificate of Conformity with batch and lot traceability, country-of-origin documentation for import clearance, and guidance on INA official app QR code verification. Third-party dimensional inspection reports confirming bore, outside diameter, and width tolerances are available upon request. Material certificates covering bearing steel composition are provided for applications requiring full material traceability.
Confirm Your NK25/20-XL Requirement With Application Parameters
Send your shaft speed, radial load, and operating environment details — we will verify suitability, confirm cross-reference alignment, and prepare a quotation with full documentation package and lead time.
